Up to 150W per Channel at 8 Ohms YPAO Multipoint Sound Optimization 4K Ultra HD Upscaling and Pass-Through HDMI with 3D and Audio Return Channel 8 x HDMI-In / 2 x HDMI-Out Built-In Wi-Fi and Bluetooth Apple AirPlay Connectivity Front-Panel USB Connectivity Advanced GUI On-Screen Display

Product Code: RX-A3060D   Product ID: 27041
Product sold by: samstores.com

Email for price

Availability: Not In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

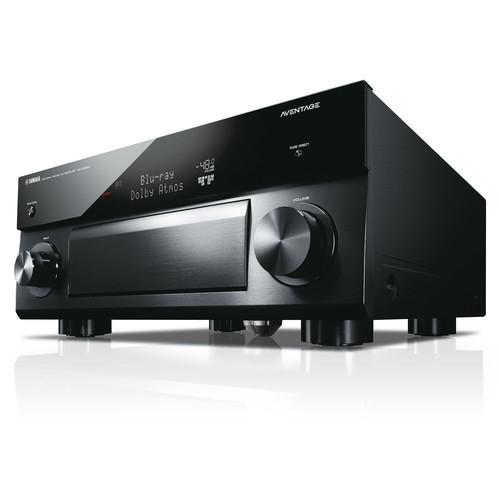

Enjoy immersive multi-channel sound with the Yamaha AVENTAGE RX-A3060BL 11.2-Channel Network A/V Receiver. It delivers up to 150W per channel of power at 8 Ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets, while Yamaha's Compressed Music Enhancer works behind the scenes to deliver optimized sound quality.


Onboard Wi-Fi and Ethernet connectivity allows the RX-A3060BL to access a variety of Internet-based music sources like Pandora, Spotify, and SiriusXM. It also supports DLNA content sharing when paired with your similarly equipped network-connected devices such as your computer. As an added convenience, you can download the free Yamaha AV Controller app to control the receiver from your Android or iOS devices.


With eight HDMI inputs and two HDMI outputs, this receiver can act as a video switcher for your HD source components. It will pass through 3D and 4K signals and will upscale non-UHD signals to near-4K quality for enhanced viewing of lower-resolution sources when paired with a 4K display. The receiver also has a USB port for accessing media stored on USB flash drives. YPAO multipoint sound optimization will calibrate the receiver to your speakers and room setup for a tailored listening experience.


Note: Access to certain Internet-based content may require a subscription to a service.


Audio Features


        Dolby Atmos and DTS:X support

        H-shaped cross-frame and rigid bottom frame with double-bottom construction

        Symmetrical power amplifier layout

        Heat sink with anti-vibration and anti-thermal properties

        SABRE32 ESS ES9016S DAC for seven main channels

        High-speed thermal feedback power amplifier

        Enhanced-quality volume IC

        Independent pure power supply

        PLL circuitry designed for ultra-low jitter helps optimize sound imaging

        5th foot with Anti-Resonance Technology Wedge to reduce vibration

        High-resolution Music Enhancer augments music from its original content

        DSD 2.8 / 5.6 MHz direct playback

        FLAC or WAV 192 kHz / 24-bit audio playback

        Apple Lossless audio playback

        Compressed Music Enhancer for Bluetooth

        Phono input for vinyl playback

        Gold-plated speaker terminals


Video Features


        HDMI with 4K UHD, 4K/60p, HDCP 2.2 (7-in, 2-out), HDR video, and BT.2020 pass-through

        4K UHD video upscaling from analog and HDMI input

        Supports Deep Color (30 / 36-bit), x.v.Color, 24 Hz refresh rate, and auto lip sync compensation

        Motion adaptive and edge adaptive deinterlacing

        Multicadence (including 3:2 pull-down) detection

        Detail and edge resolution enhancement

        Contrast, brightness, and saturation video signal control


Advanced Features


        MusicCast for audio enjoyment in every room

        Bluetooth for wireless music streaming (SBC / AAC)

        Gapless playback compatibility

        Front-panel connection for USB flash drives

        Advanced GUI on-screen display with HD graphics

        YPAO - R.S.C. with 3D, multipoint, and angle measurement for automatic room calibration

        High-sensitivity YPAO microphone for precise measurement

        HDMI front panel input

        HDMI input switching while in Standby Through Mode

        Background video feature for radio, USB, Bluetooth, audio, network, and auxiliary inputs

        SCENE PLUS includes 12 SCENE choices (four on front panel, rest on GUI), versatile parameter storage per SCENE

        HDMI CEC to power up compatible TVs and Blu-ray players


Network Features


        Wi-Fi built in (802.11b/g/n)

        Easy Wi-Fi setup: iOS Wi-Fi setting sharing, WPS, etc.

        AirPlay allows music streaming from Windows and Mac computers and iOS devices

        AV Controller App for operating various functions via iOS or Android smartphones and tablets

        Access To:

            Internet radio (vTuner: MP3 and WMA streams)

            Streaming services: Spotify, Pandora, Rhapsody, and SiriusXM Internet Radio

            Music files on your computer or NAS: WAV, MP3, WMA, AAC, FLAC, Apple Lossless, AIFF, DSD

        DLNA 1.5 certified


Surround Realism


        11-channel expandability

        Rear Presence channel support for enhanced 3D sound effect

        CINEMA DSP HD³ expands the sound field vertically for enhanced realism

        HD Audio decoding with CINEMA DSP HD³ (23 DSP programs), Dolby Atmos, and DTS:X

        Compressed Music Enhancer with CINEMA DSP

        Dialogue Lift helps ensure that dialogue comes from the center of the screen

        Dialogue Level Adjustment for proper sound balance with dialogue and vocals

        Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence speakers

        Virtual CINEMA FRONT provides surround sound without rear speakers

        Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system

        YPAO Volume to ensure natural sounds even at low volume

        Extra Bass enriches bass sound even with small speakers

        SILENT CINEMA to enjoy surround sound with headphones


Versatile Zone Control


        Pre-out terminal for Zone 2/3 with volume control

        Advanced HDMI Zone Switching allows all sources to be output via HDMI to other zones

        Zone 2/3/4 on/off and control on front panel

        Zone GUI (song / station selection, album cover art display)

        System backup / recovery function

        Zone mono, zone volume, zone tone controls, zone balance, and zone audio delay

        Zone Extra Bass for more powerful bass sound in Zone 2/3

        Zone Volume Equalizer for optimum sound balance in Zone 2/3

        Zone SCENE - four SCENE buttons for Zone 2/3

        Party Mode


Eco-Friendly Design


        ECO Mode operation for roughly 20% less power consumption compared to when ECO Mode is off (measured by Yamaha)

        Low standby power consumption of 0.1W

        Auto Power Standby function with variable time setting


Main Unit

Output Power   150 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.09% THD, 2-channel driven

165 W per channel @ 8 Ohms, 1 kHz, 0.9% THD, 2-channel driven

230 W per channel @ 8 Ohms, 1 kHz, 10% THD, 1-channel driven

Channels             11.2

DAC Type            SABRE32 ESS ES9016S DAC for seven main channels

Tuner    AM / FM

DSP        23 DSP programs including Cinema DSP HD³

Object-Based Audio Support      Dolby Atmos, DTS:X


Upscaling             Yes, to near-4K

Pass-Through    3D, 4K/60p (4:4:4), HDCP 2.2, HDR, and BT.2020

Deep Color / x.v. Color Support                 Yes

HDCP Version    2.2 (7 x HDMI-in / 2 x HDMI-out)


Bluetooth            Yes (SBC / AAC)

Wi-Fi      Yes (802.11b/g/n)

AirPlay Yes

DLNA Certified Yes

Inputs   8 x HDMI (1 front)

3 x Optical TOSLINK

3 x Digital coaxial

3 x Component video

5 x Composite video

1 x RCA phono audio

8 x Stereo RCA audio

1 x USB

Outputs               2 x HDMI

1 x Component video

1 x Composite video

2 x Subwoofer pre-out

1 x Zone 2

1 x Zone 3

1 x 11.2-channel pre-out

1 x Headphone

Other Ports        1 x YPAO microphone

1 x FM tuner antenna

1 x AM tuner antenna

1 x Wireless antenna

1 x Ethernet

1 x RS-232C

1 x AC power cord

2 x 12 V / 0.1 A trigger

1 x Remote in

1 x Remote out

Speaker Connectors       11 x Gold-plated binding post pairs

HDMI CEC            Yes

Audio Return Channel (ARC)       Yes


On-Screen Display           Yes

Standby Power Consumption     HDMI Control Off, Standby Through Mode Off: 0.1 W

HDMI Standby Through Mode On: 1.4 W

Wired Network Standby On: 2.2 W

Dimensions (W x H x D)                 With Antenna Down: 17.1 x 7.5 x 18.6" (43.5 x 19.1 x 47.3 cm)

With Antenna Up: 17.1 x 10.1 x 18.6" (43.4 x 25.7 x 47.3 cm)

Weight                 39.9 lb (18.1 kg)

Packaging Info

Package Weight                46.0 lb

Box Dimensions (LxWxH)             22.1 x 21.8 x 11.4"
