Up to 140W per Channel at 8 Ohms YPAO Multipoint Sound Optimization 4K Ultra HD Upscaling and Pass-Through HDMI with 3D and Audio Return Channel 8 x HDMI-In / 2 x HDMI-Out Built-In Wi-Fi and Bluetooth Apple AirPlay Connectivity Front-Panel USB Connectivity Advanced GUI On-Screen Display
Product Code: RX-A2060D Product ID: 27040
Product sold by: samstores.com
Availability: In Stock New

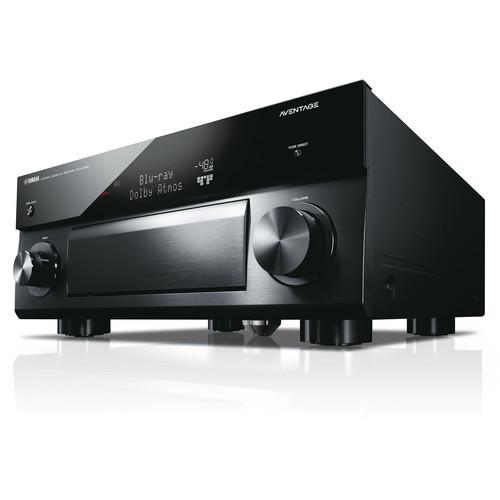

Enjoy immersive multi-channel sound with the Yamaha AVENTAGE RX-A2060BL 9.2-Channel Network A/V Receiver. It delivers up to 140W of power per channel at 8 Ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets, while Yamaha's Compressed Music Enhancer works behind the scenes to deliver optimized sound quality.
Onboard Wi-Fi and Ethernet connectivity allows the RX-A2060BL to access a variety of Internet-based music sources like Pandora, Spotify, and SiriusXM. It also supports DLNA content sharing when paired with your similarly equipped network-connected devices such as your computer. As an added convenience, you can download the free Yamaha AV Controller app to control the receiver from your Android or iOS devices.
With eight HDMI inputs and two HDMI outputs, this receiver can act as a video switcher for your HD source components. It will pass through 3D and 4K signals and will upscale non-UHD signals to near-4K quality for enhanced viewing of lower-resolution sources when paired with a 4K display. The receiver also has a USB port for accessing media stored on USB flash drives. YPAO multipoint sound optimization will calibrate the receiver to your speakers and room setup for a tailored listening experience.
Note: Access to certain Internet-based content may require a subscription to a service.
Audio Features
Dolby Atmos and DTS:X support
Symmetrical power amplifier layout
Heat sink with anti-vibration and anti-thermal properties
Rigid chassis with additional bottom frames
Dual ESS SABRE 9006A 8-channel DACs with enhanced digital audio quality
High-speed thermal feedback power amplifier
Enhanced-quality volume IC
Independent pure power supply
PLL circuitry designed for ultra-low jitter helps optimize sound imaging
5th foot with Anti-Resonance Technology Wedge to reduce vibration
High-resolution Music Enhancer augments music from its original content
H-shaped cross-frame for additional chassis rigidity
DSD 2.8 / 5.6 MHz direct playback
FLAC or WAV 192 kHz / 24-bit audio playback
Apple Lossless audio playback
Compressed Music Enhancer for Bluetooth
Phono input for vinyl playback
Video Features
HDMI with 4K UHD, 4K/60p, HDCP 2.2 (7-in, 2-out), HDR video, and BT.2020 pass-through
4K UHD video upscaling from analog and HDMI input
Supports Deep Color (30 / 36-bit), x.v.Color, 24 Hz refresh rate, and auto lip sync compensation
Motion adaptive and edge adaptive deinterlacing
Multicadence (including 3:2 pull-down) detection
Detail and edge resolution enhancement
Contrast, brightness, and saturation video signal control
Advanced Features
MusicCast for audio enjoyment in every room
Bluetooth for wireless music streaming (SBC / AAC)
Gapless playback compatibility
Front-panel connection for USB flash drives
Advanced GUI on-screen display with HD graphics
YPAO - R.S.C. with multipoint measurement for automatic room calibration
HDMI front panel input
HDMI input switching while in Standby Through Mode
Background video feature for radio, USB, Bluetooth, audio, network, and auxiliary inputs
SCENE PLUS includes 12 SCENE choices, versatile parameter storage per SCENE, and HDMI CEC to power up compatible TVs and Blu-ray players
Network Features
Wi-Fi built in (802.11b/g/n)
Easy Wi-Fi setup: iOS Wi-Fi setting sharing, WPS, etc.
AirPlay allows music streaming from Windows and Mac computers and iOS devices
AV Controller App for operating various functions via iOS or Android smartphones and tablets
Access To:
Internet radio (vTuner: MP3 and WMA streams)
Streaming services: Spotify, Pandora, Rhapsody, and SiriusXM Internet Radio
Music files on your computer or NAS: WAV, MP3, WMA, AAC, FLAC, Apple Lossless, AIFF, DSD
DLNA 1.5 certified
Surround Realism
Rear Presence channel support for enhanced 3D sound effect
HD Audio decoding with CINEMA DSP 3D (23 DSP programs)
Compressed Music Enhancer with CINEMA DSP
Dialogue Lift helps ensure that dialogue comes from the center of the screen
Dialogue Level Adjustment for proper sound balance with dialogue and vocals
Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence speakers
Virtual CINEMA FRONT provides surround sound without rear speakers
Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
YPAO Volume to ensure natural sounds even at low volume
Extra Bass enriches bass sound even with small speakers
SILENT CINEMA to enjoy surround sound with headphones
Versatile Zone Control
Pre-out terminal for Zone 2/3 with volume control
Advanced HDMI Zone Switching allows all sources to be output via HDMI to second zone
Zone 2/3/4 on/off and control on front panel
Zone GUI (song / station selection, album cover art display)
System back up / recovery function
Zone mono, zone volume, zone tone controls, zone balance, and zone audio delay
Zone Extra Bass for more powerful bass sound in Zone 2/3
Zone Volume Equalizer for optimum sound balance in Zone 2/3
Zone SCENE - four SCENE buttons for Zone 2/3
Party Mode
Eco-Friendly Design
ECO Mode operation for roughly 20% less power consumption compared to when ECO Mode is off (measured by Yamaha)
Low standby power consumption of 0.1W
Auto Power Standby function with variable time setting
Main Unit
Output Power 140 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.06% THD, 2-channel driven
155 W per channel @ 8 Ohms, 1 kHz, 0.9% THD, 2-channel driven
220 W per channel @ 8 Ohms, 1 kHz, 10% THD, 1-channel driven
Channels 9.2
DAC Type ESS SABRE 9006A 8-channel DAC
Tuner AM / FM
DSP 23 DSP programs including Cinema DSP 3D
Object-Based Audio Support Dolby Atmos, DTS:X
Video
Upscaling Yes, to 4K
Pass-Through 3D, 4K/60p (4:4:4), HDCP 2.2, HDR, and BT.2020
Deep Color / x.v. Color Support Yes
HDCP Version 2.2 (7 x HDMI-in/2 x HDMI-out)
Connectivity
Bluetooth Yes (SBC / AAC)
Wi-Fi Yes (802.11b/g/n)
AirPlay Yes
DLNA Certified Yes
Inputs 8 x HDMI (1 front)
3 x Optical TOSLINK
3 x Digital coaxial
3 x Component video
5 x Composite video
1 x RCA phono audio
8 x Stereo RCA audio
1 x USB
Outputs 2 x HDMI
1 x Component video
1 x Composite video
2 x Subwoofer pre-out
1 x Zone 2
1 x Zone 3
1 x 7.2-channel pre-out
1 x Headphone
Other Ports 1 x YPAO microphone
1 x FM tuner antenna
1 x AM tuner antenna
1 x Wireless antenna
1 x Ethernet
1 x RS-232C
1 x AC power cord
2 x 12 V / 0.1 A trigger
1 x Remote in
1 x Remote out
Speaker Connectors 11 x Binding post pairs
HDMI CEC Yes
Audio Return Channel (ARC) Yes
General
On-Screen Display Yes
Standby Power Consumption HDMI Control Off, Standby Through Mode Off: 0.1 W
HDMI Standby Through Mode On: 1.4 W
Wired Network Standby On: 2.2 W
Dimensions (W x H x D) With Antenna Down: 17.1 x 7.5 x 18.6" (43.5 x 19.1 x 47.3 cm)
With Antenna Up: 17.1 x 10.1 x 18.6" (43.4 x 25.7 x 47.3 cm)
Weight 37.5 lb (17 kg)
Packaging Info
Package Weight 43.5 lb
Box Dimensions (LxWxH) 22.0 x 21.5 x 11.5"
