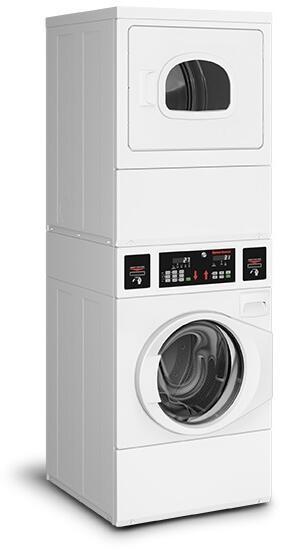

SPEED QUEEN STEN-STGN175TW01 27 INCH COIN DROP INSTALLED/PREP FOR COIN/PREP FOR CARD COMMERCIAL STACK WASHER/DRYER

MODEL - see below for all models and activation available

Coin Drop Installed

• STENCASP175TW01 120 volts / 240v / 60hz  /1ph Electric
• STGNCASP115TW01 120 volts / 60 hz / 1ph Gas

Prep for Coin

• STENXASP175TW01 120 volts / 240v / 60hz  /1ph Electric
• STGNXASP115TW01 120 volts / 60 hz / 1ph Gas
• STGNXASG115TW01 120 volts  /60 hz / 1ph Gas

Prep for Card

• STENYASP175TW01 120 volts / 60 hz / 1ph Electric
• STEWYASP175TW01* 120 volts / 60 hz / 1ph Electric
• STGNYASP115TW01 120 volts / 60 hz / 1ph Gas
• STGWYASP115TW01* 120 volts / 60 hz / 1ph Gas

Built for Reliable Performance

Speed Queen’s stack washer/dryer brings an innovative stacked concept that takes up half the floor space that a conventional washer and dryer does when situated side by side. The freestanding softmount design can be installed on all floor types or levels. Both washer and dryer have the same hookups and connections as a standard washer and dryer. No additional plumbing or electrical change is needed. Speed Queen’s stack washer/dryer combines heavy-duty construction with reliable operation proven to stand the test of time. They’re designed with less moving parts for one reason: so you’ll face fewer maintenance problems and less wear and tear down the road. Front load products have met every design Standard to be 100% ADA compliant.

• Integrated meter case
• Large capacity meter case standard
• Wash Alert™ capability

WASHER (ADA Compliant)

• Rugged suspension system
• Industry leading 1200 RPM spin speed exerts 440 G-force extraction
• Durable stainless steel washtub
• Four-compartment soap dispenser
• Extra-wide 15.5 door opening and 180º door swing

DRYER

• Upfront lint filter easy to clean and secured
• Industry’s largest door opening 2.06 sq. ft. (1914 cm2)
• Quiet, efficient blower system

SPECIFICATIONS

CONTROL OPTION: Quantum Gold

COLOR: White

CAPACITY: - lb (kg) Washer 21.5 (9.5) &Dryer 18 (8.2)

OVERALL WIDTH - in (mm) 26.875 (683)

OVERALL DEPTH - in (mm) 27.73 (704)

OVERALL HEIGHT - in (mm) 78.17 (1986)

CYLINDER VOLUME cu. ft. (liters): Washer 3.42 (96.8) & Dryer 7.0 (198)

MOTOR SIZE - HP (kW):  0.9 (0.67)

TYPE OF GAS (GAS MODELS ONLY):  Factory equipped natural/

WATER CONSUMPTION PER CYCLE:  - g (liter) 13.68 (51.78)

IWF (WATER FACTOR) - gal/ft³ (liters/liter/cycle): 4.0 (0.53)

MEFJ2 (Modified Energy Factor) ft³/kWh/cycle (Liters/kWh/cycle): 2.20 (62.3)

AVAILABLE WATER TEMPERATURES:  Hot, Warm, Cold

AIR OUTLET DIAMETER - in (mm):  4 (102)

EXHAUST AIRFLOW - cfm (liters/sec):  220 (105)

AVAILABLE CYCLES

• Washer - Light, Medium, Heavy, Normal, Perm Press, Delicates/Bulky
• Dryer - High, Medium, Low, Delicate, No Heat

ELECTRICALREQUIREMENTS

• Electric 120/240/60/1-30 amp and 120/208/60/1-30 amp
• Gas 120/60/1-15 amp

HEATING ELEMENT

• Electric 5350W, 240V 4750W, 208V
• Gas 25,000 Btu

SHIPPING DIMENSIONS

• APPROX. - in (mm)
•  Width 34 (864)
•  Depth 30 (762)
• Height 80 (2032)
• NET WEIGHT - lb (kg):  385 (175)
• SHIPPING WEIGHT - lb (kg)”  417 (189)

AGENCY APPROVALS

• Electric cULus
• Gas cCSAus

NOTE: Stack washer/dryer requires two power cords. One for washer, one for dryer. e Electric dryers come equipped for 240/60/1 operation. They can be field converted to operate on 208/60/1 with optional 61928 conversion kit. Gas dryers can be field converted for operation on LP gas with optional 458P3 conversion kit.
