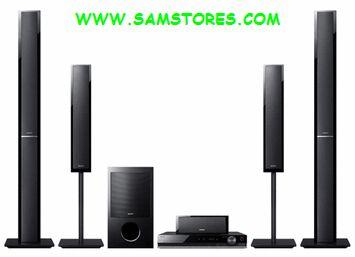

SONY DAV-DZ810 MULTI REGION DVD HOME THEATRE SYSTEM FOR 110-240 VOLTS

5.1ch DVD Home Theatre System

S-AIR Wireless Ready

HDMI Output (Upscale 1080p for DVD)

USB Movie Playback (DivX and MPEG-4 Simple Profile)

USB Record and Play Function

BRAVIA Sync

Easy Connection via Audio Return Channel

Modified for all region (Regions 1-6) playback

Guaranteed to play all old, current and future DVD movies including DVDs that are RCE coded

PAL/NTSC Playback of DVD/VCD

To play PAL movies you need a PAL TV or a Video converter

World Wide Power Supply: 110-240 volts 50-60 hertz

OUTPUT

Power Output - Front (RMS)                           167W x 2

Power Output - Center (RMS)                         167W

Power Output - Surround (RMS)                     167W x 2

Power Output - Subwoofer (RMS)                   165W

Power Output - Total (RMS at 10% THD)       1000W

AMPLIFIER

S-Master                                                          Yes

Audio Line IN/OUT (Analogue)                       1 /

Audio Input (Front, mini)                                  1

Video Signal IN/OUT (Composite)                   / 1

Video Signal IN/OUT (Component)                 / 1

Video Signal OUT (HDMI)                              Yes (1080p)

USB                                                                 Yes

Mic Input Jack (3.5mm / 6.3 mm)                     3.5 mm

D.C.A.C (Auto Calibration)                              Yes

Bass Boost Function                                         Yes (Dynamic Bass on RM)

Night Mode (Normal/Plus)                               Yes

Movie/Music Mode                                          Yes

Portable Audio Enhancer Plus

Dolby Pro Logic/Dolby                                   Pro Logic II / Yes

Dolby Pro Logic II/Dolby Pro Logic IIx           Pro Logic II (All Function)/-

Dolby Digital                                                   Yes

DTS                                                                Yes

Multi Stereo (Link)                                          Yes

A/V Sync (Lip Sync)                                       Yes

Speaker Formation                                         Yes

Timer (REC/PLAY/SLEEP)                            Yes ( / / Yes)

S-AIR Ready                                                  Yes

BRAVIA Sync                                                Yes

Dimmer                                                           Yes

Audio Line IN/OUT (Optical)                         1 /

Power Save Mode                                          Yes

KARAOKE

Mic IN/VOLUME/ECHO                               Yes / Yes / Yes

Karaoke-PON (Only DVD Function)              Yes

Multiplex (Only DVD Function)                        Yes

Key Control (Only DVD Function)                   Yes

USB MEMORY

Decoding Format for Sound (Playback)            MP3, WMA, AAC, JPEG

Decoding Format for Video (Playback)             DivX, MPEG4

Enccoding Format for Sound (Record)              MP3

MP3 File Name/ID3Tag Ver. 1.1/ID3Tag

Ver. 2.0)                                                          Yes / Yes / Yes

Play Mode (Normal)                                        Yes (1 DEVICE)

Play Mode (Shuffle)                                          Yes (1 FOLDER)

Play Mode (Repeat)                                         Yes

Play Mode (Resume)                                        Yes

Recording Source (CD)                                    Yes

Recording Source - DATA DISC (MP3)          Yes

Recording Source - Tuner FM                          Yes

Recording Mode - Normal (CD)                      Yes (by disc / by track)

Recording Mode - Normal                               Yes (by folder / by track) (DATA DISC - MP3)

Recording Mode - Program                              Yes (CD only)

Recording Speed - CD                                     2.5X

Recording Speed - DATA DISC (MP3)           20X Max

Edit ERASE                                                  / Yes / Yes (ALL / 1 FOLDER / 1 TRACK)

TUNER

Band                                                                FM

External FM/AM Antenna                                Yes (75 ohm)

Station Preset                                                   FM20

Tuning Range (FM)                                          87.5 ~ 108.0 MHz

DVD/SACD/VCD/CD PLAYER

Type                                                                1 Disc Tray

DVD/DVD Audio/SACD/CD/Video CD         Yes / / Yes / Yes / Yes

DVD/CD/SACD TEXT                                   Yes / Yes / Yes

CD-R/CD-RW Playback                                 Yes / Yes

DVD-R/+R/+R DL/+RW/-RW/-RW(VR)

Playback (Some discs may not be played

back)                                                               Yes / Yes / Yes / Yes / Yes / Yes

DivX Playback                                                 Yes

MPEG4 Simple Profile Playback                      Yes

JPEG Playback                                                 Yes

MP3 Playback                                                  Yes

MP3/ID3Tag Ver.1.1/iD3Tag Ver.2.0              Yes / Yes / Yes

Multi Disc Resume (DVD,VCD)                       10 Discs

Progressive Scan (NTSC/PAL)                         Yes /

Precision Cinema Progressive                            Yes

New GUI/OSD                                                Yes

D/A Converter (Video)                                     108MHz/12bit

SPEAKERS

Front Speaker Type (Grill)                                Floor standing (Punched Metal)

Front Speaker System                                      1 way (Full Range)

Front Speaker Woofer Unit                              6.5cm

Centre Speaker System                                    1 way (Full Range)

Centre Speaker Woofer Unit                            6.5cm

Surround Speaker Type (Grill)                          Floor standing (Punched Metal)

Surround Speaker System                                1 way (Full Range)

Surround Speaker Woofer Unit                        6.5cm

Subwoofer - Active/Passive                              Passive

Subwoofer Speaker Unit                                  18cm

WEIGHT & DIMENSIONS

Main Unit Size (W x H x D)                              Approx. 430 x 66 x 385 mm

Main Unit Weight                                              Approx. 4.4kg

Front Speaker Size (W x H x D)                       Approx. 255 x 1185 x 255 mm

Front Speaker Weight                                       Approx. 3.1kg

Centre Speaker Size (W x H x D)                     Approx. 265 x 94 x 70 mm

Centre Speaker Weight                                    Approx. 0.6kg

Surround Speaker Size (W x H x D)                 Approx. 235 x 1000/970/940/910 x 235 mm (adjustable height)

Surround Speaker Weight                                 Approx. 2.2kg

Subwoofer Size (W x H x D)                            Approx. 225 x 395 x 315 mm

Subwoofer Weight                                            Approx. 6.5kg
