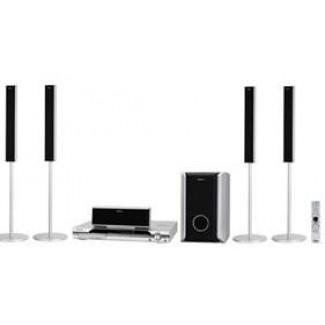

SONY DAV-DZ750W MULTI-SYSTEM DVD HOME THEATER SYSTEM 110-240 VOLTS

Sony DAV-DZ750W Multi-System Code Free DVD Home Theater System Specifications:

Designs and specifications are subject to change without notice.

Key Features:

Special Feature: HDMI input

1080i HDMI output

All regions PAL or NTSC (Regions 1-6) playback

Playback of PAL DVD requires a Multi system tv, PAL TV or a video converter

Lifetime All Region Guarantee

Plays DVD Video, DVD-R, SACD, Audio CD, MP3, CD-R, CD-R/W, VCD/DivX, MP3, Super Audio CD, JPEG CD, CD-R/RW, DVD/CD Text

Plays DVD-R/+R/+R DL/+RW/-RW/-RW(VR) / DVD-RW (CPRM)

143W x 5 + 285W RMS Total Power

S-Master Digital Amplifier

HDMI connections

Digital Cinema Auto Calibration (DCAC - bronze)

Movie/Music Mode

Flexible Speaker Formation

On Screen Display

4 Floor Standing Height Adjustable Speakers

Dolby Pro Logic II/ Dolby Digital / DTS

AV Sync

Variable Attenuation Control System (VACS)

Shuffle/Program/Repeat Mode

Multi Disc Resume (40Disc)

AM/FM Tuner with 30 Presets

Bass Boost Function - Dynamic Bass

Precision Cinema Progressive

Progressive Scan (PAL/NTSC)

Timer (Sleep)

SPECIFICATIONS:

Power

Front Speakers: 143W RMS

Surround Speakers: 143W RMS

Centre Channel: 143W RMS

Subwoofer: 285W RMS

Media Compatibility

CD: Yes

DVD: Yes

VCD: Yes

DVD+R: Yes

DVD+RW: Yes

DVD-R: Yes

DVD-RW: Yes (VR Mode)

DVD+R/DL: Yes

Connections

Analogue Audio In/Out: x1/0

Portable Audio Input: x1

Composite Video In/Out: x 1/1

S-Video In/Out: x 0/1

Component Video In/Out: x 0/1

HDMI In/Out: x 0/1

Headphone Jack: x1 (3.5mm)

Dimensions (WxHxDmm)

Main Unit : 430 x 55 x 360

Front Speakers: 92 x 1200 x 80 each

Surround Speakers: 92 x1200 x 80 each

Centre Channel: 260 x 94.5 x 86

Subwoofer: 240 x 374 x 390

General

Main Unit : 3.9kg

Front Speakers: 4.5 kg

Surround Speakers: 4.5 kg

Centre Channel: 0.7 kg

Subwoofer: 6.7 kg

Speaker Type: 2 Way

Input/Output:

2 HDMI input and output

Audio Line In 2 (Analog)

Audio Line In 1 (Optical)

Video Signal In 2 (Composite)

Video Signal Out 1 (Composite)

Video Signal Out 1 (S-Video)

Video Signal Out 1 (Component)

Speaker Terminal (Front / Rear)

Headphone Jack (3.5 mm/6.3 mm)

Equalizer:

Bass Boot function DSGX

Surround and Effects:

Dolby Prologic/dolby Prologic 2

Dolby Digital

DTS

Others

Dimmer

VACS

S-Diat

Power Adjustment:

Power Save Mode

Power consumption : 130 W

Power Consumption at Stand by less than 0.3 W

Tuner:

Band AM/FM

External AM/FM antenna

Picture Quality

Progressive Scan PAL/NTSC

VCD version 2

Picture Navigator

OSD Control

Speaker:

Front:

Type Tall (Height Adjustable)

2 way system

Bass Reflex

Center

Satellite type

2 way system

Bass Reflex

Surround sound Speaker

Tall Speaker (Height adjustable)

2 way system

Bass Reflex

Center Surround Sound Speaker

Subwoofer: DDTD Single Unit, Passive Unit, AV Shield

Remote commander:

Battery size AA

Pre program

Theatre SYNC

Surround Amplifier:

TA-WR2 Surround amplifier

Power output Front 143 Watt x 2

Power Supply:

110-220-240 Volts 50-60 Hertz
