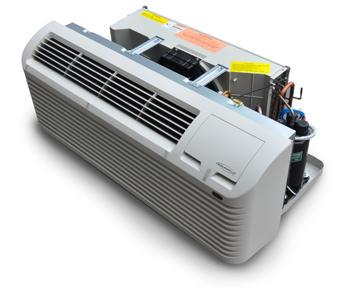

Soleus Air® HCC-C09HP-A 9,000 BTU 208/230-Volt Packaged Terminal Air Conditioner

Product Code: HCC-C09HP-A   Product ID: 29094
Product sold by: samstores.com

Email for price

Availability: Not In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

The Soleus Air® HCC-C09HP-A 9,000 BTU Packaged Terminal Air Conditioner (PTAC) with 8,300 BTU Heat Pump Heater is built for the demands of commercial use and ready to cool and heat rooms up to 300 square feet. The electronic control panel features a digital temperature display and large buttons that are easy to use. Low and high fan speeds are available in cooling, heating and fan-only modes. Select auto mode for convenient and automatic temperature control. The control panel cover gives you the flexibility to access the control panel and keep it covered when not changing the settings. This Soleus Air® Packaged Terminal Air Conditioner (PTAC) requires a wall sleeve to operate correctly and professional installation is recommended. PTAC's are great installations for hotels, schools, offices and apartment complexes where individual room climate control is required. Soleus Air® Packaged Terminal Air Conditioners stand up to the demands of commercial environments. PTAC Air Conditioner comes with a Soleus warranty of 12 months for components, and 60 months for the compressor.


  • Cools and heats up to 300 sq. ft.
  • 2 fans speeds for customized comfort
  • Digital temperature display and electronic controls for ease of use
  • Control panel cover discreetly hides controls for a great look
  • Auto mode provides automatic temperature control
  • Fan-only mode circulates air throughout the room without cooling
  • A wall sleeve is required when installing a Soleus Air® PTAC. Fits Soleus PTAC Wall Sleeve (Model: HCC-C-SG)
  • Select wall thermostat models compatible with PTAC units allow for remote operation
  • Professional installation recommended
  • 8,300 BTU heat pump with backup electric heat strip


Shipping Dimensions: 45.25 H x 24.75 W x 18.88 D

Shipping Weight: 117.0 lbs


Brand Name: Soleus Air



Amperage: 3.9 Cooling / 3.3 HeatingControl Type: Digital

Cooling Capacity: 9000 Btu/hEnergy Efficiency Standards: 11.7

Filter Type: Removable/WashableFor Use With: HCC-C-SG Sleeve Menards SKU# 6237320

Heating Capacity: 8300 Btu/hHeating Coverage: 201-300 square foot

Includes: Wiring HarnessListing Agency Standards: ETL

Manufacturer Warranty: Compressor 5 Year, Components 1 yearMaximum Noise Level: 45 decibel

Moisture Removal Capacity: 30.4 Pints per DayNumber of Speeds: 2

Overall Depth: 21 inchOverall Height: 16 inch

Overall Width: 42 inchPlug Type: 3 Prong Grounded NEMA 6-20

Power Cord Length: 60 inchProduct Type: Packaged Terminal Air Conditioner

Temperature Range: 61 to 90 degrees FahrenheitVoltage: 208/230

Wattage: 795 Cooling / 685 HeatingWeight: 104 pound
