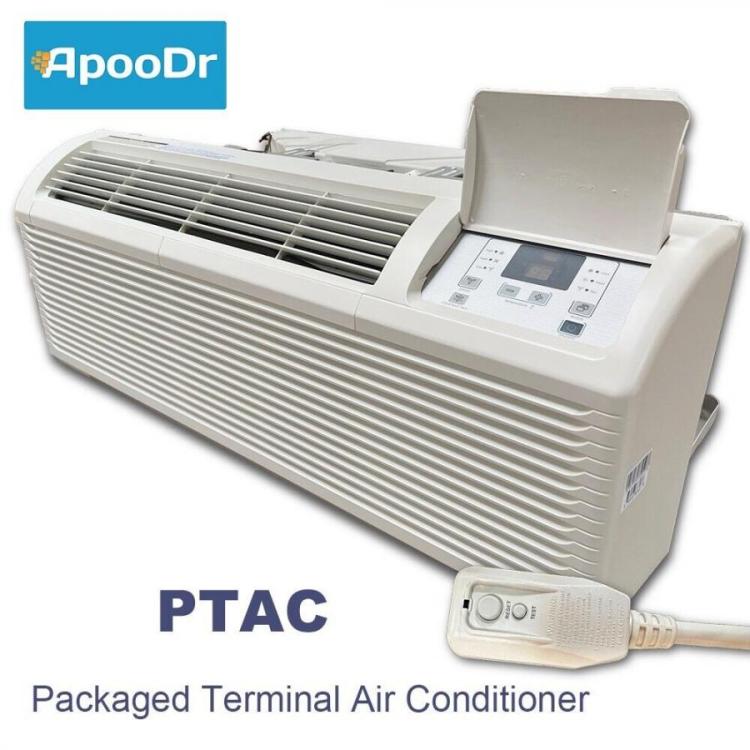

APOODR APIUP-12AEN1 12000 BTU PTAC PACKAGED TERMINAL AIR CONDITIONER & HEAT PUMP 208/230V
Packaged Terminal Air Conditioners (PTAC) and Packaged Terminal Heat Pumps (PTHP) are ductless, convenient, all-in-one heating and cooling solutions for commercial spaces. It is a type of self-contained heating and air conditioning system commonly found in hotels, motels, senior housing facilities, hospitals, condominiums, apartment buildings, add-on rooms & sunrooms. They don't required ducting because they slide into the wall for installation. One side supplies conditioned air inside and the other side ventilates outside. Their work horse capacity, compact design (standard 42" width and slim profile) coupled with high tech functions bump them to the commercial level. All PTACs offer cooling and electric heat with an electric heat strip or you may choose more advanced version with heat pump compressor.
Product Code: ApooDr 12000 Product ID: 33792
Product sold by: samstores.com
Availability: In Stock New
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
Item specifics
Condition
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition
Number of Cool Speeds
3
Power Source
Corded Electric
Refrigerant
R-410a
Cooling Method
Air
Item Length
42
Control Style
Digital, Remote Control
BTU Cooling Rating
12000 BTU
Energy Efficiency Ratio (EER)
11.6
Manufacturer Warranty
2 Years
Voltage
208/230 V
Area Covered
500 ft²
Features
Adjustable Thermostat, Auto Cool, Digital Display, Overload Protection, Heat Pump, 12000 BTU
Item Width
16
Compressor Type
Rotary & Impeller
Color
White
Current Rating
2.8-5.8A
Material
Metal, Plastic
Item Depth
21
Brand
ApooDr
Cooling System
Direct
Type
PTAC Air Conditioner
Model
APIUP-12AEN1
Air Flow Volume
300-400 CFM
Specification
Notes
12K heat pump
Heater
3500W
Sale model
APIUP-12AEN1
Power supply
V,Hz,Ph
208-230V,1Ph,60Hz
Cooling
Capacity
Btu/h
12000/11800
Input
W
1035/1020
Current
A
4.50/4.89
EER
Btu/h/W
11.6
Heating(Heat pump)
Capacity
Btu/h
10800/10500
Input
W
930/905
Current
A
4.05/4.36
COP
W/W
3.4
Heating(PTC)
Capacity
Btu/h
10900/8900
Input
W
3519/2850
Current
A
15.3/13.7
Starting current
A
47.1
Compressor
Model
ASM103N11VEZ
Type
ROTARY
Brand
GMCC
Capacity
Btu/h
3510/3560
Input
W
822/835
Rated current(RLA)
A
3.90/3.52
Locked rotor Amp(LRA)
A
27
Thermal protector
UP3-41/HPA -622
Thermal protector position
INTERNAL
Capacitor
uF
35.0
Refrigerant oil/oil charge
ml
ESTEL OIL RB68 /300
Indoor side fan motor
Model
YKT-21-6-15L
Input
W
37.0
Capacitor
uF
1
Speed(Hi/Mi/Lo)
r/min
1100/1010/880
Outdoor side fan motor
Model
YKT-58-4-3L
Input
W
87.0
Capacitor
uF
3
Speed(Hi)
r/min
1590
Indoor side air flow (Hi/Mi/Lo)
m3/h
676/615/543
CFM
398/362/320
Indoor side noise level (Hi/Mi/Lo)
dB(A)
51.4/51/51
Outdoor side noise level (Hi)
dB(A)
67.6/67.3/67.3
Refrigerant type
R410A
kg
0.89
Refrigerant type
R410A
ozs
31.39
Design pressure
PSIG
540/300
Connection wiring
12AWGx3
Plug type
LCDI 6-20P
Control type
Electronic Control
Operation temp
indoor(cooling/heating)
17-32/0-27
62-90/32-80
outdoor(cooling/heating)
18-43/-5-24
64-109/23-76
Application area (Cooling Standard)
m2
16-23
Application areaCooling Standard)
sp.ft
172-248
Application area (Cooling EPA)
sq. ft
450-500
Dimension(W*D*H)
mm
1067x532x406
in
42x21x16
Packing (W*D*H)
mm
1120x640x480
in
44.1x25.2x18.9
Net/Gross weight
Kg
52.5/56.7
lb
115.7/125
Loading quantity 20’ /40’ /40'HQ
Pieces
72/152/190
Moister removal
L/hour
1.33
