220-240 volts Air Displacement: 13.4cfm(380ltr/min). Maximum Free Air Delivery: 8.8cfm(249ltr/min). Maximum Pressure: 145psi(10bar). Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life. Supplied with full CE certification, test certificates and operating/maintenance manual.
Product Code: SAC1103B Product ID: 33563
Product sold by: samstores.com
Availability: In Stock New

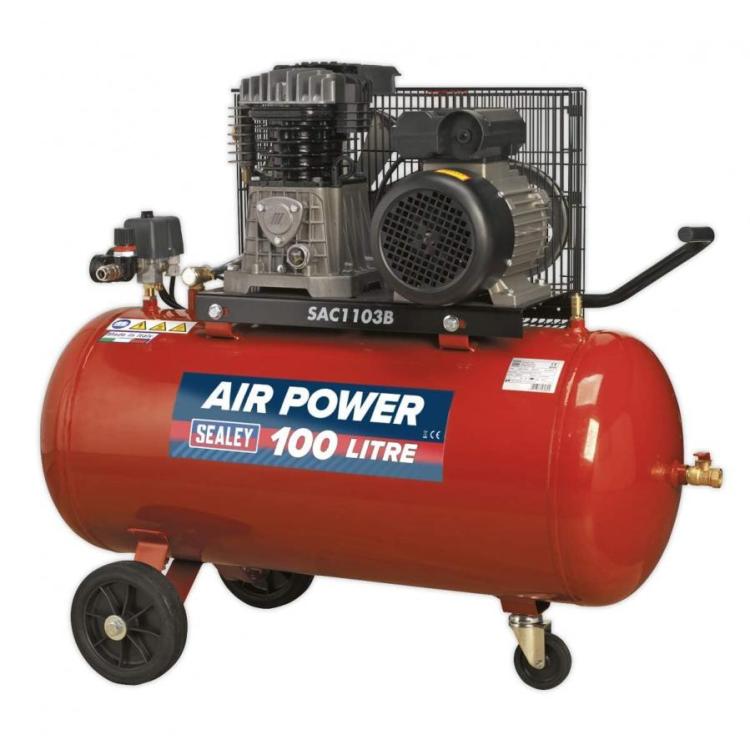

100L Belt Drive Compressor With Cast Cylinder & Wheels Single Phase Compressor
Suitable for the professional workshop, these units are fitted with a genuine 3hp motor. Twin capacitors and a centrifugal switch aid trouble free start up on a 13amp supply. Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.Specifications: Model No: SAC1103B Motor Output: 3hp Supply: 230V Phase: 1ph Minimum Rated Supply: 13A Speed: 1630rpm Air Displacement cfm(ltr/min): 13.4(380) Maximum Free Air Delivery cfm(ltr/min): 8.8(249) Maximum Pressure: 145psi(10bar) Receiver Capacity: 100ltr Outlet Fitting: 1/2"BSP Female Tap Size (W x D x H): 1010 x 470 x 860mm Weight: 59kg Noise Power: 74 Noise Pressure: 96 Height: 790 Width: 1010 Length: 400
echnical Details
ManufacturerSealey
Part NumberSAC1103B
Product Dimensions40 x 101 x 79 cm; 68.4 Kilograms
Item model numberSAC1103B
Size100L
ColourRed
Power SourceAC
Voltage230 Volts
Item Package Quantity1
Air Flow Capacity8.8 Cubic Feet Per Minute
Included ComponentsAir Compressor 100L Belt Drive 3hp with Cast Cylinders & Whe
Batteries included?No
Batteries Required?No
Item Weight68.4 kg
