SAMSUNG SDS-V5080N - 16CH SECURITY CAMERA SYSTEM 110-220 VOLTS

5

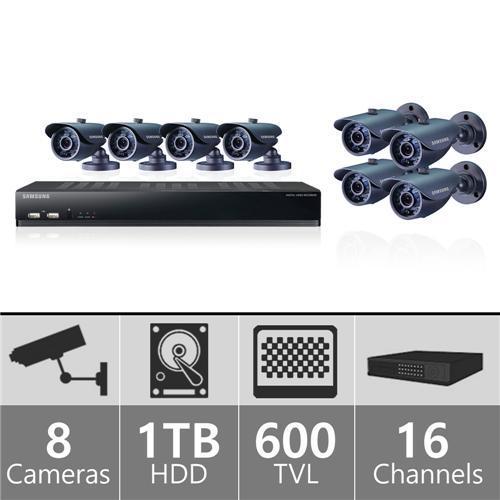

SDS-V5080N is a Samsung security system with 16 channels and part of Samsung new line of DIY security DVRs with BNC connectors. The SDS-V5080N comes with 8 BNC security Box cameras (SDC-5440BC). The Samsung surveillance cameras included in the kit are rated IP66 and record at 600TVL. The 8 Samsung cameras included in the kit connect to the DVR using 60ft Siamese BNC cables. You also receive a special accessory that will allow you to power your BNC cables through the DVR rather than an outlet.

Product Code: SDS-V5080N   Product ID: 24153
Product sold by: samstores.com

Email for price

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-7 business days!

SDR-5100

Display

Video            Inputs   16 Composite video 0.5-1 Vp-p, 75 ohm

Resolution NTSC : 704 x 480

Live                Frame Rate         NTSC : 480fps

Resolution NTSC : 704 x 480

Multi Screen Display               1 / 4 / 6 / 8 / 9 / 16 / Sequence / PIP

Performance

Operating System    Embedded          Linux

Recording    Compression     H.264

Record Rate               NTSC : Up to 120fps@704 x 480, Up to 240fps@704 x 240, Up to 480fps@352 x 240

Mode            NTSC : Manual, Schedule, Event, Time Laps

Overwrite Modes    Continuous

Pre-alarm    Off / 5sec

Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback   Search Mode     Date/Time, Event, Back up, Motion

Playback Function    Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Slow forward / backward (1/2x, 1/4x, 1/8x)

Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Network      Transmission Speed        CIF 120/100fps

Bandwidth Up to 4Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps

Bandwidth Control Automatic

Stream         H.264 (4CIF)

Max. Remote Users                Search 3 / Live unicast 10 / Live multicast 20

Protocol Support      TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring                 SmartViewer, Webviewer, Mobile Viewer

Smart Phone              Smart Phone      Android, iOS (iPhone, iPad)

Protocol Support      RTP, RTSP, HTTP, CGI

Transmission Speed                CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)

Max. Remote Users                Live 1

Storage        Internal HDD      1TB SATA HDD

USB (Back up)            2 USB ports

File Format (Back up)             BU (DVR player), EXE (Include player)

Security        Password Protection      1 Admin, 10 Group, 10 User per 1group

Data Authentication               Watermark

Interface

Monitors     VGA       1 VGA (1024 x 768, 1280 x 1024)

HDMI            1 HDMI (720p/1080p resolution)

Audio            Inputs / Output                4 line in / 1 line out

Compression             G.711

Sampling Rate           8KHz

Alarm            Remote Notification       Notification via e-mail

Connections               Ethernet              1 RJ-45 10/100Mbps Base-T

USB                USB 2.0, 2 ports (Front)

Application Supoort                Mouse, Remote control

Protocol Support (RS-485)    Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE

General

Electrical      Input Voltage / Current                 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt

Power Consumption              Max. 40W (With 1x HDD)

Environmental          Operating Temperature / Humidity         0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical                 Dimensions (WxHxD)     360.0 x 44.0 x 160.0mm (14.17" x 1.73" x 6.30")

Weight (With hard disks)      1,67Kg (3.68 lb)

Language     English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek





SDC-5440BC

Electrical

Input Voltage            12V DC

Power Consumption              3W

VIDEO

Imaging Device         1/3" CMOS

Active Pixels               720 x 480

Scanning System      Interlace

Synchronization        Internal

Frequency H : 15,734Hz / V : 59.94Hz

Horizontal Resolution             600TV lines

Min. Illumination      0Lux (IR LED)

S/N Ratio (Y Signal) 46dB

LENS

Focal Length               3.6mm

Max. Aperture Ratio               2

Angular Field of View             D : 72? / H : 67? / V : 53?

OPERATIRATIONAL

Shutter Mode           Auto (Rolling shutter)

Gain Control               Auto

White Balance           Auto (3,200°K ~ 6,500°K)

Digital Noise Reduction         Auto

Day & Night                Auto

IR Distance (850nm)                15m (50ft)

ENVIR ONMENTALTAL

Operating Temperature / Humidity                 -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH

MECHANICAL

Ingress Protection   IP66

Dimensions (WxHxD)             69.0 x 62.0 x 180.7mm (2.72" x 2.44" x 7.11")

Weight         238g (0.52 lb)
