SAMSUNG SDS-V5080F 16 CH SECURITY CAMERA SYSTEM 110-220 VOLTS

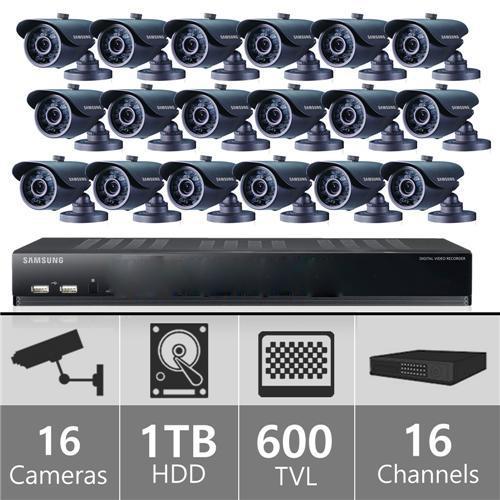

SDS-V5080F is a Samsung security system with 16 channels and part of Samsung new line of DIY security DVRs with BNC connectors. The SDS-V5080F comes with 16 BNC security Box cameras (SDC-5440BC). The Samsung surveillance cameras included in the kit are rated IP66 and record at 600TVL. The 16 Samsung cameras included in the kit connect to the DVR using 60ft Siamese BNC cables. You also receive a special accessory that will allow you to power your BNC cables through the DVR rather than an outlet.

Product Code: SDS-V5080F Product ID: 24152
Product sold by: samstores.com

$ 790

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

SDR-5100

Display

Video Inputs 16 Composite video 0.5-1 Vp-p, 75 ohm

Resolution NTSC : 704 x 480

Live Frame Rate NTSC : 480fps

Resolution NTSC : 704 x 480

Multi Screen Display 1 / 4 / 6 / 8 / 9 / 16 / Sequence / PIP

Performance

Operating System Embedded Linux

Recording Compression H.264

Record Rate NTSC : Up to 120fps@704 x 480, Up to 240fps@704 x 240, Up to 480fps@352 x 240

Mode NTSC : Manual, Schedule, Event, Time Laps

Overwrite Modes Continuous

Pre-alarm Off / 5sec

Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback Search Mode Date/Time, Event, Back up, Motion

Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Slow forward / backward (1/2x, 1/4x, 1/8x)

Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Network Transmission Speed CIF 120/100fps

Bandwidth Up to 4Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps

Bandwidth Control Automatic

Stream H.264 (4CIF)

Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20

Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring SmartViewer, Webviewer, Mobile Viewer

Smart Phone Smart Phone Android, iOS (iPhone, iPad)

Protocol Support RTP, RTSP, HTTP, CGI

Transmission Speed CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)

Max. Remote Users Live 1

Storage Internal HDD 1TB SATA HDD

USB (Back up) 2 USB ports

File Format (Back up) BU (DVR player), EXE (Include player)

Security Password Protection 1 Admin, 10 Group, 10 User per 1group

Data Authentication Watermark

Interface

Monitors VGA 1 VGA (1024 x 768, 1280 x 1024)

HDMI 1 HDMI (720p/1080p resolution)

Audio Inputs / Output 4 line in / 1 line out

Compression G.711

Sampling Rate 8KHz

Alarm Remote Notification Notification via e-mail

Connections Ethernet 1 RJ-45 10/100Mbps Base-T

USB USB 2.0, 2 ports (Front)

Application Supoort Mouse, Remote control

Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE

General

Electrical Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt

Power Consumption Max. 40W (With 1x HDD)

Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical Dimensions (WxHxD) 360.0 x 44.0 x 160.0mm (14.17" x 1.73" x 6.30")

Weight (With hard disks) 1,67Kg (3.68 lb)

Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek

SDC-5440BC

Electrical

Input Voltage 12V DC

Power Consumption 3W

VIDEO

Imaging Device 1/3" CMOS

Active Pixels 720 x 480

Scanning System Interlace

Synchronization Internal

Frequency H : 15,734Hz / V : 59.94Hz

Horizontal Resolution 600TV lines

Min. Illumination 0Lux (IR LED)
