SAMSUNG SDS-P5102 16CH 960H SECURITY CAMERA SYSTEM 110-220 VOLTS

5

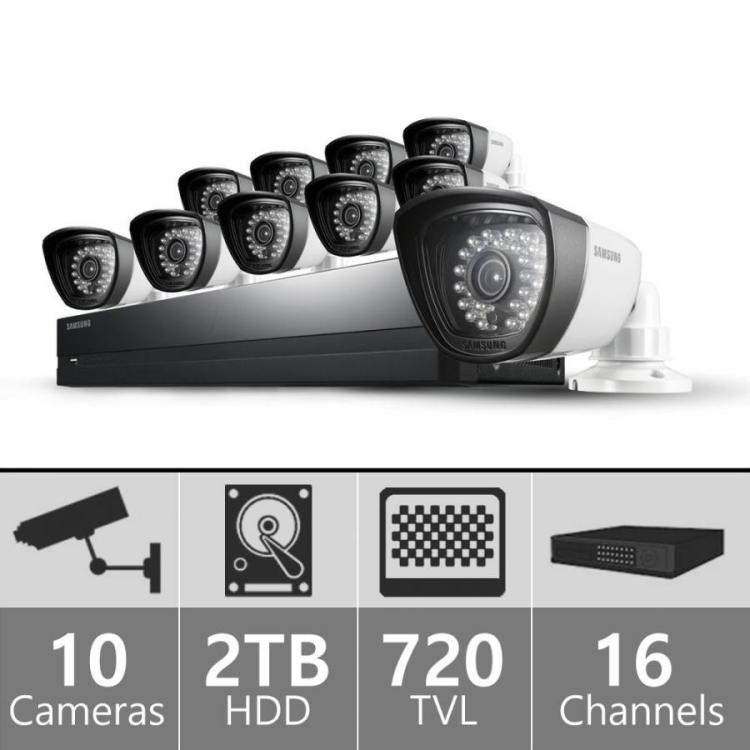

SDS-P5102 is a 16 channel Samsung Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 10 night vision security cameras (SDC-7340BCN). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft range. The SDS-P5102 comes with 10 BNC Siamese cables for all 10 of your included surveillance cameras.

Product Code: SDS-P5102   Product ID: 24151
Product sold by: samstores.com

Email for price

Availability: Not In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

SDR-5102N2T

Display

Video            Inputs   16 Composite video

Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576

Live                Frame Rate         NTSC : 480fps / PAL : 400fps

Resolution NTSC : 960 x 480 / PAL : 960 x 576

Multi Screen Display               1 / 4 / 6 / 8 / 9 / 13 / 16 / Sequence / PIP

Performance

Operating System    Embedded          Linux

Recording    Compression     H.264

Record Rate               NTSC : Up to 480fps@960 x 480 / PAL : Up to 400fps@960 x 576

NTSC : Up to 480fps@704 x 480 / PAL : Up to 400fps@704 x 576

NTSC : Up to 480fps@704 x 240 / PAL : Up to 400fps@704 x 288

NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288

Mode            NTSC : Manual, Schedule, Event, Time Laps

PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post)

Overwrite Modes    Stop / Continuous

Pre-alarm    Off / 5sec

Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback   Search Mode     Date/Time, Event, Back up, Motion

Playback Function    Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Slow forward / backward (1/2x, 1/4x, 1/8x)

Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Network      Transmission Speed        960H / 4CIF / 2CIF / CIF (NTSC : 240fps, PAL : 200fps)

Bandwidth Up to 32Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps

Bandwidth Control Automatic

Stream         H.264 (4CIF / 2CIF / CIF selectable)

Protocol Support      TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring                 SmartViewer, Webviewer, Mobile Viewer

Smart Phone              Smart Phone      Android, iOS (iPhone, iPad)

Protocol Support      RTP, RTSP, HTTP, CGI

Transmission Speed                CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)

Max. Remote Users                Live 1

Storage        Internal HDD      2TB SATA HDD

USB (Back up)            2 USB ports

File Format (Back up)             BU (DVR player), EXE (Include player)

Security        Password Protection      1 Admin, 10 Group, 10 User per 1group

Data Authentication               Watermark

Interface

Monitors     VGA       1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)

HDMI            1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)

Audio            Inputs / Output                4 line in / 1 line out

Compression             G.711

Sampling Rate           8KHz

Alarm            Remote Notification       Notification via e-mail

Connections               Ethernet              1 RJ-45 10/100Mbps Base-T

USB / e-SATA             USB 2.0, 2 ports (Front / Rear) / 1 External SATA port

Application Supoort                Mouse, Remote control

Protocol Support (RS-485)    Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE

COAX            Pelco-C, CCVC

Electrical      Input Voltage / Current                 12V DC adaptor, 100 ~ 240V AC ±10%, 50/60Hz

Power Consumption              Max. 36W (With 1x HDD)

Environmental          Operating Temperature / Humidity         0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical                 Dimensions (WxHxD)     315.0 x 52.0 x 224.0mm (12.4" x 2.05" x 8.82")

Weight (With hard disks)      Approx. 1.69Kg (3.73 lb)

Language     English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek





SDC-7340BCN

Electrical

Input Voltage            12V DC

Power Consumption              3W

VIDEO

Imaging Device         1/3" 960H CMOS

Active Pixels               976(H) x 494(V)

Scanning System      Interlace

Synchronization        Internal

Frequency H : 15,734Hz / V : 59.94Hz

Horizontal Resolution             720TV lines

Min. Illumination      Color : 7Lux, B/W : 0Lux (IR LED on)

S/N Ratio (Y Signal) 46dB

LENS

Focal Length               3.8mm

Max. Aperture Ratio               F2.0

Angular Field of View             H : 75? / V : 66? / D : 80?

OPERATIONAL

Shutter Mode           Auto (Rolling shutter)

Gain Control               Auto

White Balance           Auto (1,800°K ~ 10,500°K)

Digital Noise Reduction         Auto

Day & Night                Auto

IR Distance (850nm)                25m (82ft)

ENVIR ONMENTALTAL

Operating Temperature / Humidity                 -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH

MECHANICAL

Ingress Protection   IP66

Dimensions (WxHxD)             72.1 x 62.9 x 192.4mm (2.84" x 2.48" x 7.57")

Weight         252g (0.56 lb)
