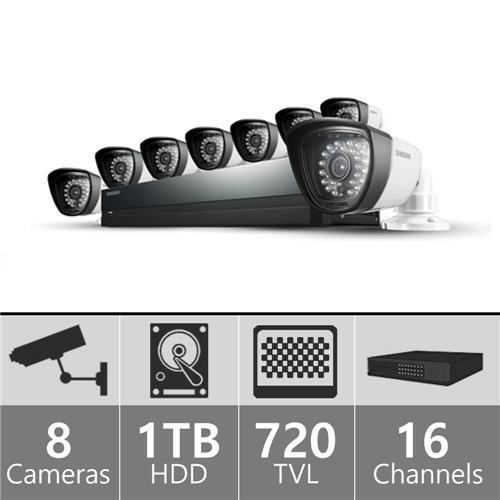

SAMSUNG SDS-P5082 16CH 960H SECURITY CAMERA SYSTEM 110-220 VOLTS

SDS-P5082N is a 16 channel Samsung Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 8 night vision security cameras (SDC-7340BCN). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft range. The SDS-P5082N comes with 8 BNC Siamese cables for all 8 of your included surveillance cameras.

Product Code: SDS-P5082 Product ID: 24154
Product sold by: samstores.com

$ 499

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

SDR-5102

Display

Video Inputs 16 Composite video

Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576

Live Frame Rate NTSC : 480fps / PAL : 400fps

Resolution NTSC : 960 x 480 / PAL : 960 x 576

Multi Screen Display 1 / 4 / 6 / 8 / 9 / 13 / 16 / Sequence / PIP

Performance

Operating System Embedded Linux

Recording Compression H.264

Record Rate NTSC : Up to 480fps@960 x 480 / PAL : Up to 400fps@960 x 576

NTSC : Up to 480fps@704 x 480 / PAL : Up to 400fps@704 x 576

NTSC : Up to 480fps@704 x 240 / PAL : Up to 400fps@704 x 288

NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288

Mode NTSC : Manual, Schedule, Event, Time Laps

PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post)

Overwrite Modes Stop / Continuous

Pre-alarm Off / 5sec

Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback Search Mode Date/Time, Event, Back up, Motion

Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Slow forward / backward (1/2x, 1/4x, 1/8x)

Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Network Transmission Speed 960H / 4CIF / 2CIF / CIF (NTSC : 240fps, PAL : 200fps)

Bandwidth Up to 32Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps

Bandwidth Control Automatic

Stream H.264 (4CIF / 2CIF / CIF selectable)

Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring SmartViewer, Webviewer, Mobile Viewer

Smart Phone Smart Phone Android, iOS (iPhone, iPad)

Protocol Support RTP, RTSP, HTTP, CGI

Transmission Speed CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)

Max. Remote Users Live 1

Storage Internal HDD 1TB SATA HDD

USB (Back up) 2 USB ports

File Format (Back up) BU (DVR player), EXE (Include player)

Security Password Protection 1 Admin, 10 Group, 10 User per 1group

Data Authentication Watermark

Interface

Monitors VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)

HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)

Audio Inputs / Output 4 line in / 1 line out

Compression G.711

Sampling Rate 8KHz

Alarm Remote Notification Notification via e-mail

Connections Ethernet 1 RJ-45 10/100Mbps Base-T

USB / e-SATA USB 2.0, 2 ports (Front / Rear) / 1 External SATA port

Application Supoort Mouse, Remote control

Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE

COAX Pelco-C, CCVC

Electrical Input Voltage / Current 12V DC adaptor, 100 ~ 240V AC ±10%, 50/60Hz

Power Consumption Max. 36W (With 1x HDD)

Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical Dimensions (WxHxD) 315.0 x 52.0 x 224.0mm (12.4" x 2.05" x 8.82")

Weight (With hard disks) Approx. 1.69Kg (3.73 lb)

Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek

SDC-7340BCN

Electrical

Input Voltage 12V DC

Power Consumption 3W

VIDEO

Imaging Device 1/3" 960H CMOS

Active Pixels 976(H) x 494(V)

Scanning System Interlace

Synchronization Internal

Frequency H : 15,734Hz / V : 59.94Hz

Horizontal Resolution 720TV lines

Min. Illumination Color : 7Lux, B/W : 0Lux (IR LED on)
