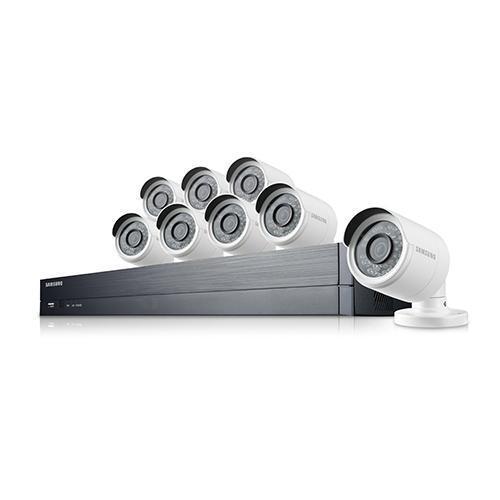

SAMSUNG SDH-ST581N WISENET 16 CHANNEL FULL HD SECURITY SYSTEM WITH 2TB HDD AND 8 1080P CAMERAS

1080p Full HD Video

The Samsung Full HD Video Security system provides 1080p Full HD real-time recording for smooth playback and clear imaging, allowing you to make out details missed on lower resolution cameras. The high quality resolution delivers sharper video, enabling better forensic inspection of a person's face or license plate.


Motion Zone and Event Detection

Select the desired areas to detect motion and avoid false alarms that may trigger the system. Get alerts when there is motion, tampering or video loss detected.


Weather-Resistant Cameras

Ideal for both indoor and outdoor environment, the cameras are IP66 rated, which is guaranteed to endure frigid winters and sultry summers. Withstands extreme temperatures of -22 to 122 (-30 to 50).


True Day and Night

The 1080p Full HD cameras utilize an advanced IR Cut Filter for accurate, vibrant colors and Night Vision mode to capture clear, illuminated footage up to 82' in darkness.

Remote Viewing with Free Android and iOS App

Monitor from anywhere, anytime using your smartphone or tablet with the WiseView app.

Specifications

System

Number of Cameras:8

Number of Channels:16

Hard Drive Space:2TB

Wired or Wireless:Wired

Average Minimum Setup Time:

DVR

DVR Model:SDR-75303N2T

Number of Channels:16

Number of Channels with Audio:4

Hard Drive Size:2TB

Maximum Hard Drive Expandability:6TB

Recording Resolution:Full HD(1920*1080), HD(1280*720), 960H(960*480)

Recording Frames per Second:240fps@1080p

Recording Compression:H.264

Recording Modes Available:Manual, Schedule, Event (Motion)

Wireless Camera Receiver:N/A (wired)

Video Motion Detection Recording:Yes

Pre-Event Recording/Capacity:Min. 1sec

Mobile App Viewing:WiseView on Android/iOS

E-Mail Alert Notification:Yes

Maximum Number of Remote Viewers:20

Playback and Search Options:Search: Date/Time, Event

Data Backup Options:USB x 2ea

Digital Zoom:Yes

Pan-Tilt-Zoom Controls:N/A

Still Frame Capture:Yes

Alarm Terminal Trigger Recording / # of Inputs:N/A

External Alarm Output Contact(s):N/A

Operating System:NTSC

Included Accessories:IR Remote Control, Mouse, CMS software

Camera Cable Connection Type:BNC

Compatible Cameras:SDC-9443BC, SDC-9443DF, SDC-9443VF

DVR Dimensions:11.8"(W) x 2.07"(H) x 8.65" (D)

Camera 1

Camera Model and Type:SDC-9443BC (bullet fixed)

Number of Cameras:8

Image Sensor Type:CMOS

TV Lines:N/A

Resolution:1920*1080

Effective Pixels:1920*1080

Aperture:F2.0

Focal Length (35mm Equivalent):3.6mm

Pan-Tilt-Zoom Capability:N/A

Optical Zoom:N/A

Angle of View:105 Diagonal

Color or Black and White:Color

Wireless Camera-DVR Connection:N/A (wired)

Audio Capability:N/A

Number of Infrared LEDs:24

Night Vision Distance:25m (82') in total darkness / 40m (130') in ambient lighting

Recommended for Outdoor Use:Yes

Weather Resistance (IP Rating):IP 66

Operating Temperature:+22° ~ +122°F (-30 ~ +50)

Operating Humidity:Less than 90% RH

Tamper Protection:Metal housing

Compatible DVRs:SAMSUNG Wisenet Full HD series DVR

Compatible Cables and Connector Type:BNC

Length of Cable Included:60ft

Camera Dimensions:Φ2.68" x 5.87"

Technical Support

Phone Number:1-844-947-3638

Hours of Availability:9am-9pm EST, Mon-Sun

Web Support URL:www.wisenetlife.com

Package Contents

DVR (SDR-B75303N2T)

Bullet Camera x 8 (SDC-9443BC)

Quick Start Guide

Remote Control/Battery

HDMI Cable

Mouse

1 to 8 Power Splitter

Network Cable

12V 2A Power Adapter for DVR

12V 3A Power Adapter for Cameras

Screws, Anchors & Hex Key

60' BNC Camera Cable x8

Assembled Country

China

Component Country

Imported
