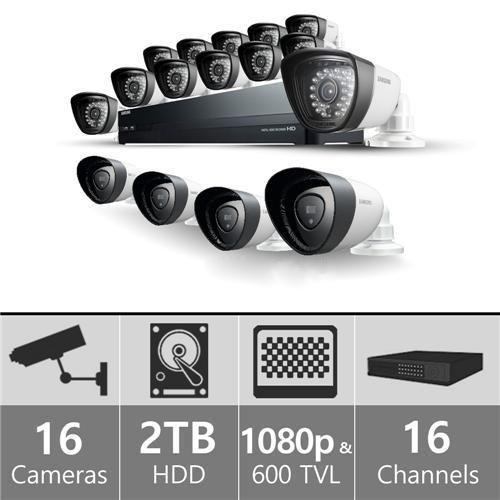

Samsung SDH-P5081SDB is a 16 Channel Hybrid Security System customized with 4 IP66 Indoor/Outdoor Full HD Bullet cameras with 98ft of max night vision range. It is a perfect for your home or small business. The Samsung SDH-P5081SDB has 16 Channels composed of 4 IP66 Indoor/Outdoor Full HD Bullet cameras and 12 IP66 Indoor/Outdoor Bullet Cameras. It is an all-inclusive home security system, with everything that you need in a DVR security system included in the box.
Product Code: SDH-P5081SDB Product ID: 24099
Product sold by: samstores.com
SDR-5200N
Display
Video Inputs 4CH UTP, 12CH BNC (Composite)
Resolution 1920 x 1080 (Full HD) / 960 x 480 (SD)
Live Frame Rate 120fps@1920 x 1080 + 360fps@960 x 480
Resolution 1920 x 1080 (Full HD) / 960 x 480 (SD)
Multi Screen Display 1 / 4 / 7 / 8 / 9 / 13 / 16 / Sequence / PIP
Performance
Operating System Embedded Linux
Recording Compression H.264
Record Rate Up to 120fps@1920 x 1080 + 360fps@960 x 480
Up to 100fps@1920 x 1080 + 300fps@960 x 576
Mode
Manual, Schedule (Continuous / Event),
Event (Pre / Post), Time lapse (1 ~ 30fps)
Event
Video Loss, Motion (Level 1 ~ 10), Alarm, Tampering
Overwrite Modes Continuous
Pre-alarm Off / 5sec
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Playback Search Mode
Date/time, Event, Back up, Motion (*All search included prview function)
Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Network Transmission Speed
4CIF 120fps / 2CIF 240fps / CIF 480fps
Bandwidth
Up to 32Mbps
Bandwidth Control
Selectable
Stream
H.264 (4CIF / 2CIF / CIF selectable)
Max. Remote Users
Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, UPnP
Monitoring SmartViewer, Webviewer, Mobile Viewer
Smart Phone Smart Phone Android, iOS (iPhone, iPad)
Protocol Support RTP, RTSP, HTTP, CGI
Transmission Speed CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)
Max. Remote Users Live 1
Storage Internal HDD
2TB SATA HDD
External HDD /DVD Writer
External HDD (Up to 2TB)
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), SEC (Include player)
Security Password Protection 1 Admin, 10 Group, 10 User per 1group
Data Authentication Watermark
Interface
Monitors VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080) 60Hz
HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080) 60Hz
Audio Inputs / Output 4 line in / 1 line out
Compression G.711
Sampling Rate 8KHz
Alarm Remote Notification Notification via e-mail
Connections Ethernet 1 RJ-45 10/100Mbps Base-T
USB USB 2.0, 2 ports (Front)
e-SATA e-SATA 3.0
Application Supoort Mouse, Remote control
Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE
General
Electrical Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt
Power Consumption Max. 40W (With 1x HDD)
Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical Dimensions (WxHxD) 413.0 x 58.6 x 174.0mm (16.26" x 2.31" x 6.85")
Weight (With hard disks) 1.58Kg (3.48 lb)
Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek
SDC-9440BU
Electrical
Input Voltage DC 12V(by PoE) (not compatible with general PoE)
Power Consumption 4W
VIDEO
Imaging Device 1/2.9" 2M CMOS / 1920 x 1080 (1080p) or higher
Active Pixels 1920 x 1080 (1080)p or Higher
Scanning System Progressive
Synchronization Internal
Frequency -
Horizontal Resolution -
Min. Illumination 0Lux (IR LED)
S/N Ratio (Y Signal) 50dB
UTP Output
Built-in UTP TX
Maximum transmission length:
100m (UTP CAT5e, Solid Wire)
50m (UTP CAT5e, Stranded Wire)
* It is subject to change depending on user environment
LENS
Focal Length 3.6mm
Max. Aperture Ratio 1.8
Angular Field of View H: 87.92?, V: 47.66?, D: 103.1?
OPERATIONAL
Shutter Mode Auto (Rolling shutter)
* Flickering may occur with electronic fluorescent lamps.
Gain Control Auto
White Balance Auto (1,800 ~ 10,500 K)
Contrast Enhancement SSDR (On
Digital Noise Reduction SSNRIII (On)
Day & Night Auto
IR Distance 30m (98ft)
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +50°C / 90%
MECHANICAL
Ingress Protection IP66
Dimensions (WxHxD) W70.8 x H70.4 x D200mm (Bracket included)
Weight 255g
SDC-5340BC
Electrical
Input Voltage 12V DC
Power Consumption 3W
VIDEO
Imaging Device 1/3" CMOS
Active Pixels 720 x 480
Scanning System Interlace
Synchronization Internal
Frequency H : 15,734Hz / V : 59.94Hz
Horizontal Resolution 600TV lines
Min. Illumination 0Lux (IR LED)
S/N Ratio (Y Signal) 46dB
LENS
Focal Length 3.6mm
Max. Aperture Ratio 2
Angular Field of View D : 72?
OPERATIRATIONAL
Shutter Mode Auto (Rolling shutter)
Gain Control Auto
White Balance Auto (3,200°K ~ 6,500°K)
Digital Noise Reduction Auto
Day & Night Auto
IR Distance (850nm) 25m (82ft)
ENVIR ONMENTALTAL
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH
MECHANICAL
Ingress Protection IP66
Dimensions (WxHxD) 70.7 x 61.0 x 192.1mm (2.78" x 2.40" x 7.56")
Weight 241g (0.53 lb)
