SAMSUNG SDH-P5081N 16CH HYBRID SECURITY CAMERA SYSTEM 110-220 VOLTS

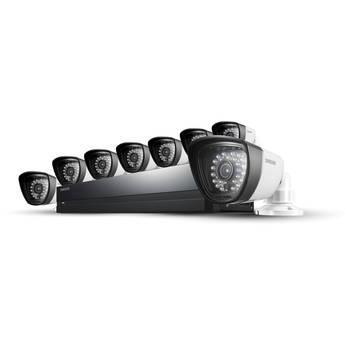

SDH-P5081N is a 16 channel Samsung Hybrid Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 8 night vision security cameras (SDC-9440BU (HD) & SDC-7340BC (SD)). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft (SDC-7340BC) & 98ft (SDC-9440BU) in night vision distance. The SDH-P5081N comes with 4 RJ45 (CAT5e) and 4 BNC Siamese cables for all 8 of your included surveillance cameras.
Product Code: SDH-P5081N Product ID: 23271
Product sold by: samstores.com
Availability: In Stock New
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
Display
Video Inputs 4CH UTP, 12CH BNC (Composite)
Resolution 1920 x 1080 (Full HD) / 960 x 480 (SD)
Live Frame Rate 120fps@1920 x 1080 + 360fps@960 x 480
Resolution 1920 x 1080 (Full HD) / 960 x 480 (SD)
Multi Screen Display 1 / 4 / 7 / 8 / 9 / 13 / 16 / Sequence / PIP
Performance
Operating System Embedded Linux
Recording Compression H.264
Record Rate Up to 120fps@1920 x 1080 + 360fps@960 x 480
Up to 100fps@1920 x 1080 + 300fps@960 x 576
Mode
Manual, Schedule (Continuous / Event),
Event (Pre / Post), Time lapse (1 ~ 30fps)
Event
Video Loss, Motion (Level 1 ~ 10), Alarm, Tampering
Overwrite Modes Continuous
Pre-alarm Off / 5sec
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Playback Search Mode
Date/time, Event, Back up, Motion (*All search included prview function)
Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Network Transmission Speed
4CIF 120fps / 2CIF 240fps / CIF 480fps
Bandwidth
Up to 32Mbps
Bandwidth Control
Selectable
Stream
H.264 (4CIF / 2CIF / CIF selectable)
Max. Remote Users
Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, UPnP
Monitoring SmartViewer, Webviewer, Mobile Viewer
Smart Phone Smart Phone Android, iOS (iPhone, iPad)
Protocol Support RTP, RTSP, HTTP, CGI
Transmission Speed CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)
Max. Remote Users Live 1
Storage Internal HDD
2TB SATA HDD
External HDD /DVD Writer
External HDD (Up to 2TB)
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), SEC (Include player)
Security Password Protection 1 Admin, 10 Group, 10 User per 1group
Data Authentication Watermark
Interface
Monitors VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080) 60Hz
HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080) 60Hz
Audio Inputs / Output 4 line in / 1 line out
Compression G.711
Sampling Rate 8KHz
Alarm Remote Notification Notification via e-mail
Connections Ethernet 1 RJ-45 10/100Mbps Base-T
USB USB 2.0, 2 ports (Front)
e-SATA e-SATA 3.0
Application Supoort Mouse, Remote control
Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE
General
Electrical Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt
Power Consumption Max. 40W (With 1x HDD)
Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical Dimensions (WxHxD) 413.0 x 58.6 x 174.0mm (16.26" x 2.31" x 6.85")
Weight (With hard disks) 1.58Kg (3.48 lb)
Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek
