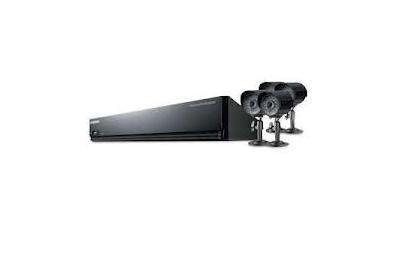

SAMSUNG SDE3004N 4CH SECURITY CAMERA SYSTEM 110 - 240 VOLTS

SDE-3004N is an all-in-one home surveillance system. It comes with Samsung security DVR and 4 metal security box cameras (SEB-1020R). The surveillance cameras that come with your security DVR system are rated IP65, making them weatherproof. The cameras record at 480TVL and come equipped with infrared led lamps for night time recording. Your Samsung security system also comes with 4 60ft BNC/AC Power Siamese cables. Unlike the SEA-C200, these cables will not power your surveillance cameras. Instead, the SDE-3004N will come with a unique accessory that will route power to your cameras via AC power cable through your DVR.

The SDE-3004N will come equipped with a 500gb HDD. Because Samsung security systems utilizes the H.264 compression technology, The SDE-3004N will have maximum recording time. Your Samsung surveillance cameras can be set for motion detection and your DVR security system can be set to notify you via email whenever motion is detected. Connect your security DVR to your internet router and monitor your Samsung security system remotely on your pc, laptop, iPhone, or android devices. DVR System will also connect with your other Samsung security systems. You can monitor all your Samsung surveillance cameras from one central location using smartviewer. Smartviewer will link all your Samsung security systems so that you don’t have to log in and out from system to system.

Your Surveillance DVR and Video Surveillance Cameras Includes the following features:

Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iphone and android devices.

4 IP66 weatherproof security cameras (SEB-1020R)

4 x 60ft BNC/AC Power Siamese Cable

Samsung surveillance cameras record at 520TVL.

240 total FPS (Frames per second)

1TB of storage USB 2.0 and records using H.264 compression technology.

Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.

Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.

One of the most flexible CCTV systems out in the market today.

MAC Compatible

4 Surveillance Cameras Included, Room for 4 more: Samsung SEB-1020R is a metal security camera. It is weatherproof with an IP rating of IP65. It was record at 4800TVL and has a night vision range of maximum 50 ft. The SEB-1020R will use a 60ft of Siamese BNC cable included in the kit. The SEB-1020R has lenses with focus length of 3.6mm, a vertical visual angle of 53?, and a horizontal visual angle of 67?

For your home or business, Samsung SDE-3004N is your security system that is both dependable and affordable. Everything you need to setup and get started is in the box. The SDE-3004N features an 4 channel DVR with a 500 GB hard drive. In the box, you will find 4 night vision water proof cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on.

Samsung also offers lifetime technical support on this product so you are always covered.

Durable and Easy Setup Cameras

All of the cameras are IP65 compliant which means that they are both waterproof and dust proof and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.

Best Image Available

Samsung security systems are known for their high quality recordings. All the cameras for the SDE-3004N capture video with 480 television lines of resolution for a clear, crisp picture.

In addition, SDE-3004N records up to 120 frames per second, making your recordings smooth. Lastly, all our cameras are also night vision capable and can detect and show objects as far as 50 feet even in complete darkness. Each camera can be set to record constantly or customized to record based on motion activation or a scheduled times.

Be Connected At All Times

You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDE-3004N to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs.It's truly a system that's been developed with you, the consumer's convenience in mind.

Scan the QR code with your phone to upload iPOLis mobile, the remote viewing app developed by Samsung. You can also search for it on your app store.

iPOLis

Manage Multiple Systems on One Screen

You can view an infinite number of sites from one control location with your SDE-3004N.

Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.

Large Storage Capacity and Easy to Review

The SDE-3004N comes with a 500 GB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video. The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.

Samsung Quick Connect: Networking Your DVR Made Easy

Setting up remote viewing is a snap. Simply plug your internet connection to the Samsung SDE-3004 DVR, load the Quick Connect software onto your PC and your router will be located automatically. Using your PC, follow the three easy configuration steps and then you’re ready to go.

Item

SDE-3004N

Video

Inputs

4 composite video 0.5-1 Vpp, 75 ohm

Resolution

704x480 NTSC,704x576 PAL

Live

Frame rate

30fps NTSC, 25fps PAL

Resolution

704x480 NTSC, 704x576 PAL

Muti Screen Display

1, 4, PIP

Performance

Operating System

Embedded

Linux

Recording

Compression

H.264

Record Rate

NTSC : Up to 30fps @ 704 x 480 / PAL : Up to 25fps @ 704 x 576

NTSC : Up to 60fps @ 704 x 240 / PAL : Up to 50fps @ 704 x 288

NTSC : Up to 120fps @ 352 x 240 / PAL : Up to 100fps @ 352 x 288

Mode

NTSC: Manual, Schedule, Event, Time Laps

Overwrite modes

Continuous

Pre-alarm

Off/5sec

Post-alarm

Up to 6hour (5, 10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search

Search mode

Date/Time, Event, Backup, Motion

Playback Function

Fast forward / backward, Slow forward / backward, Step forward / backward

Network

Transmission Speed

100/120fps

Bandwidth

Up to (4)Mbps, Unlimited (4M) / 2 / 1.5 / 1 Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kbps

Bandwidth Control

Automatic

Stream

H.264 (CIF)

Protocol Support

TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring

Smart viewer, Webviewer, Mobile Viewer

Smart Phone

Smart Phone

Support

Storage

Internal HDD

500GB SATA HDD

DVD Writer (Back up)

Not Supported

USB (Back up)

2 USB ports

Security

Password Protection

1 Admin, 10 Group , 10 User per 1 Group

Data Authentication

Watermark

Interface

Monitors

VGA

Analog RGB 1024 x 768 resolution (BNC or VGA selected in booting)

Main Composite

BNC, 1 Vp-p, 75 ohm

Audio

Inputs / Output

1 Line in(CH1) / 1 line out

Compression

G.711

Sampling Rate

8KHz

Alarm

Remote Notification

Notification via e-mail

Connections

Ethernet

1 RJ45 10/100 Base- T

USB

USB2.0, 2 ports (Front/Rear)

Application Support

Mouse(1EA), Remote Controller

General

Electrical

Input Voltage/Current

100 ~ 240 VAC +/- 10% 50/60 Hz, Autoranging

Power Consumption

ADP-4812 Adaptor (1EA), 12V, 48W

Environmental

Operating Temperature / Humidity

0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical (Set)

Dimension (W x H x D)

255 x 50 x 213mm (10.04" x 1.97" x 8.39")

Weight (With hard disks)

1.58kg (3.48 LBS)

Mechanical (Package)

Dimension (W x H x D)

406 x 218 x 338mm (15.98" x 8.58" x 13.31")

Weight (With hard disks)

6.06kg (13.36 LBS)

Language

English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek

SEB-1020R

ELECTRICAL

Input Voltage

DC 12V

Power Consumption

3W

VIDEO

Imaging Device

1/4" OV7950 Color CMOS

Total Pixels

649H x 583V

Scanning System

Interlace

Synchronization

Internal

Frequency

H: 15, 734, V: 59.94 Hz

Horizontal Resolution

480TVL

Min. Illumination

OLux(IR-LED)

S/N Ratio (Y Signal)

46dB

Signal Output

1.0 Vp-p/75 composite

LENS

Focal Length

3.6mm

Max. Aperture Ratio

2

Angular Field of View

H: 67", V: 53"

OPERATIONAL

Shutter Mode

Auto (Rolling Shutter)

Gain Control

Auto

White Balance

Auto (3200K-6500K)

Digital Noise Reduction

Auto

Day & Night

Auto

IR Distance

15m

ENVIRONMENTAL

Operating Temperature/Humidity

0C ~ + 40C (+32F ~ + 104F)/20% ~ 85%RH

MECHANICAL

Dimension (W x H x D)

64.7 x 63.9 x 85.0 mm (2.55"x 2.52"x 3.35")

Weight

300g (0.66 lb)
