Home » 220 volts Security Systems » 16 CH DVR CCTV / SECURITY SYSTEM



About this item 10 High Definition 720p outdoor bullet cameras Remote view from mobile device: Android, iPhone, iPad, PC, Mac IP66 weather resistant rating Night vision up to 82 ft

Product Code: SDC-C5100   Product ID: 24948
Product sold by: samstores.com

Email for price

Availability: Not In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

About this item

10 High Definition 720p outdoor bullet cameras

Remote view from mobile device: Android, iPhone, iPad, PC, Mac

IP66 weather resistant rating

Night vision up to 82 ft

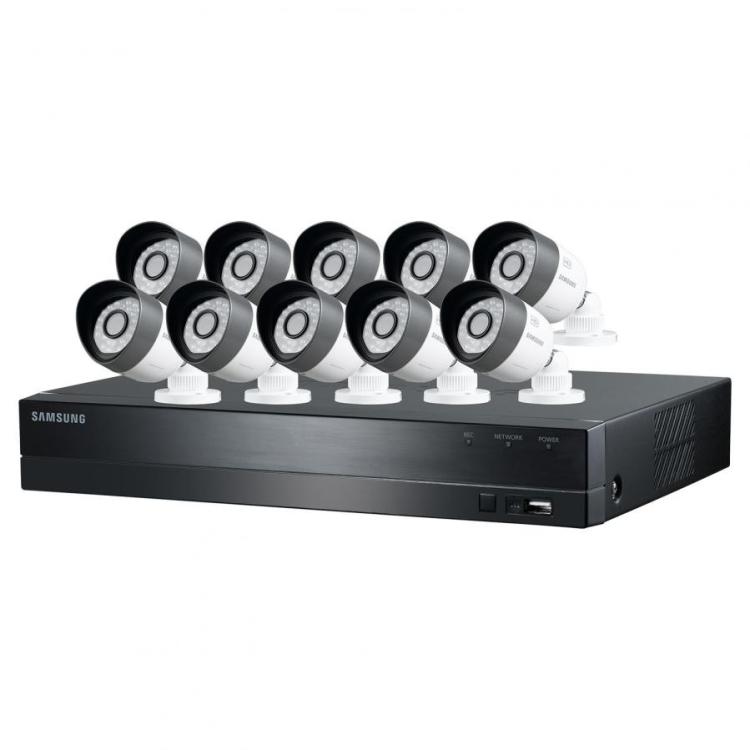

HD System Delivered

For your home or business, Samsung SDH-C5100 offers the best image quality with 720p HD resolution. Everything you need to setup and get started is in the box. The SDH-C5100 features a 16 channel DVR with a 2TB hard drive. Included, you will find 10 720P HD outdoor bullet cameras. With simple to set up and even easier to use free app, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on. Samsung also offers lifetime technical support on this product so you are always covered.


Comapct Descrete Design

All of the cameras designed to fit well in all envronments. With the compact, discrete design, the cameras can be placed in any location without being noticed. The cameras also provide IP66 rating which means they can be placed indoors or outdoors in the harshest conditions. They have been tested and retested to ensure they are built to last.


720P Best HD Image Available

Samsung security systems are known for their high quality images. All the cameras for the SDH-C5100 provide 720P HD resolution and records HD resolution in real-time for smooth playback. All of our cameras are night vision capable and can detect and show objects as far as 82 feet, even in complete darkness. Each camera can be set to record constantly or customized to record based on motion activation or at scheduled times.


Be Connected At All Times

You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDH-C5100 to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs. You can view an infinite number of sites from one control location with your SDH-C5100. Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week. It's truly a system that's been developed with you, the consumer's convenience in mind.


Large Storage Capacity and Easy to Review

The SDH-C5100 comes with a 2TB hard drive. The hard drive is dependable and provides a large capacity to store your video. The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.





Number of Cameras:      10 High Definition 720P Outdoor Bullet Cameras

Number of Channels:     16

Hard Drive Space:            2 TB

Wired or Wireless:           Wired

Average Minimum Setup Time: 1 hour


DVR Model:        SDR-C5300

Number of Channels:     16

Number of Channels with Audio:              4CH line in / 1CH line out

Hard Drive Size:                2 TB

Maximum Hard Drive Expandability:        4 TB

Recording Resolution:    NTSC:720P(1280x720), 960H(960*480), D1(704*480),HD1(704*240),CIF(352*240)

Recording Frames per Second:  480 ips/720p, 480 ips/960H, 480 ips/D1, 480 ips/HD1, 480 ips/CIF

Recording Compression:               H.264

Recording Modes Available:        Manual, Schedule (Continuous/Event), Event (Pre/Post), Time Lapse (1 ~ 30 fps)

Wireless Camera Receiver:          Not available

Video Motion Detection Recording:        Yes

Pre-Event Recording/Capacity:  Yes/5 seconds

Mobile App Viewing:      Yes, IOS and Android

E-Mail Alert Notification:              Yes

Maximum Number of Remote Viewers:                10

Playback and Search Options:     Playback: fast forward, reverse Search: time, event

Data Backup Options:     USB Port

Digital Zoom:      Yes

Pan-Tilt-Zoom Controls:                Yes

Still Frame Capture:        Yes

Alarm Terminal Trigger Recording / # of Inputs:  Not available

External Alarm Ouput Contact(s):             Not available

Operating System:          LINUX

Included Accessories:    Remote Control, Mouse, Smart Viewer Software, HDMI Cable

Camera Cable Connection Type:               BNC

Compatible Cameras:     Compatible with all cameras with BNC inputs (non HD) and Samsung Analog HD cameras

DVR Dimensions:             11.81"W x 1.89"H x 8.22"D (300.0 mm x 48.0 mm x 208.7 mm)


Camera Model and Type:             SDC-8440BC, 720P HD Bullet Camera

Number of Cameras:      10

Image Sensor Type:        CMOS

TV Lines:              1000 TVL

Resolution:         1280x720

Effective Pixels:                1280(H) x 960(V)

Aperture:            F1.8

Focal Length (35mm Equivalent):              3.6mm

Pan-Tilt-Zoom Capability:             Not available

Optical Zoom:    Not available

Angle of View:  H: 78° / V: 62.5° / D: 100°

Color or Black and White:             Color

Wireless Camera-DVR Connection:          Not available

Audio Capability:              Not available

Number of Infrared LEDs:            28

Night Vision Distance:    82 ft

Recommended for Outdoor Use:             Yes

Weather Resistance (IP Rating):                IP66

Operating Temperature:              14°F ~ 122°F

Operating Humidity:       Less than 90%RH

Tamper Protection:         Through ccable mount design

Compatible DVRs:            SDR-C5300

Compatible Cables and Connector Type:               BNC

Length of Cable Included:            8 siamese BNC cables 60 ft, 2 siamese BNC cables 90 ft

Camera Dimensions:      2.43"W x 2.43"H x 5.51"D (61.8 mm x 61.8 mm x 140.0 mm)

Technical Support

Phone Number:               1-877-349-3149

Hours of Availability:       9am-9pm Pacific time zone, Mon-Sun

Web Support URL:           http://www.samsungsv.com

Package Contents


10 Cameras

1 remote control

2 AA battery

1 Mouse

1 Power Adaptor

1 Power cord

8 BNC cables 60 ft

2 BNC cables 90 ft

1 CD

1 Quick Guide

1 Network cable

1 HDMI cable

1 warranty card


Assembled Country
