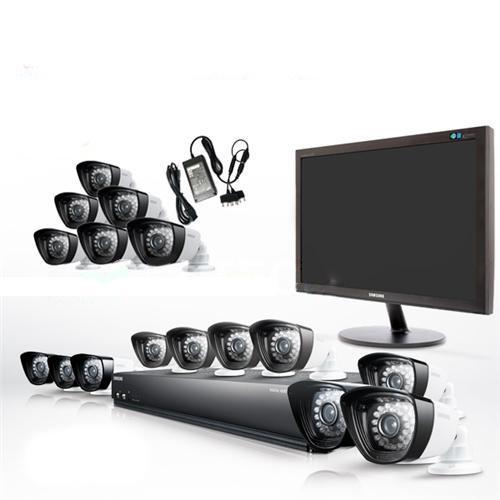

SAMSUNG SCA-P5160N 16 CHANNEL COMPLETE SECURITY CAMERA SYSTEM PACKAGE WITH 6 SOLTECH DOME CAMERAS 110-220 VOLTS

5

Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iPhone and android devices. 16 IP66 weatherproof security cameras (SDC-5340BC) 16 x 60ft of BNC Siamese cables included Included Samsung surveillance cameras record at 600TVL. 480 total FPS (Frames per second) 2TB of storage USB 2.0 and records using H.264 compression technology. Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode. Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity. One of the most flexible CCTV systems out in the market today.

Product Code: SCA-P5160N   Product ID: 22799
Product sold by: samstores.com

$ 1545.99

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iPhone and android devices.
    16 IP66 weatherproof security cameras (SDC-5340BC)
    16 x 60ft of BNC Siamese cables included
    Included Samsung surveillance cameras record at 600TVL.
    480 total FPS (Frames per second)
    2TB of storage USB 2.0 and records using H.264 compression technology.
    Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.
    Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.
    One of the most flexible CCTV systems out in the market today.

Display

Video    Inputs   16 Composite video 0.5-1 Vp-p, 75 ohm

Resolution          NTSC : 704 x 480 / PAL : 704 x 576

Live        Frame Rate         NTSC : 480fps / PAL : 400fps

Resolution          NTSC : 704 x 480 / PAL : 704 x 576

Multi Screen Display       1 / 4 / 6 / 8 / 9 / 16 / Sequence / PIP

Performance

Operating System            Embedded          Linux

Recording            Compression     H.264

Record Rate       NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576

NTSC : Up to 240fps@704 x 240 / PAL : Up to 200fps@704 x 288

NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288

Mode    NTSC : Manual, Schedule, Event, Time Laps

PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post)

Overwrite Modes            Continuous

Pre-alarm            Off / 5sec

Post-alarm          Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback           Search Mode     Date/Time, Event, Back up, Motion

Playback Function            Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Slow forward / backward (1/2x, 1/4x, 1/8x)

Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Network              Transmission Speed        CIF 120/100fps

Bandwidth          Up to 4Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps

Bandwidth Control          Automatic

Stream                 H.264 (4CIF)

Protocol Support              TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring         SmartViewer, Webviewer, Mobile Viewer

Smart Phone      Smart Phone      Android, iOS (iPhone, iPad)

Protocol Support              RTP, RTSP, HTTP, CGI

Transmission Speed        CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)

Max. Remote Users        Live 1

Storage                Internal HDD      2TB SATA HDD

USB (Back up)    2 USB ports

File Format (Back up)     BU (DVR player), EXE (Include player)

Security                Password Protection      1 Admin, 10 Group, 10 User per 1group

Data Authentication       Watermark

Interface

Monitors             VGA       1 VGA (1024 x 768, 1280 x 1024)

HDMI    1 HDMI (720p/1080p resolution)

Audio    Inputs / Output                4 line in / 1 line out

Compression     G.711

Sampling Rate   8KHz

Alarm    Remote Notification       Notification via e-mail

Connections       Ethernet              1 RJ-45 10/100Mbps Base-T

USB        USB 2.0, 2 ports (Front)

Application Supoort        Mouse, Remote control

Protocol Support (RS-485)            Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE

General

Electrical              Input Voltage / Current                 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt

Power Consumption      Max. 40W (With 1x HDD)

Environmental Operating Temperature / Humidity         0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical         Dimensions (WxHxD)     360.0 x 44.0 x 160.0mm (14.17" x 1.73" x 6.30")

Weight (With hard disks)              1,67Kg (3.68 lb)

Language             English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek





SDC-5340BC

Electrical

Input Voltage    12V DC

Power Consumption      3W

VIDEO

Imaging Device                 1/3" CMOS

Active Pixels       720 x 480

Scanning System              Interlace

Synchronization                Internal

Frequency          H : 15,734Hz / V : 59.94Hz

Horizontal Resolution     600TV lines

Min. Illumination              0Lux (IR LED)

S/N Ratio (Y Signal)          46dB

LENS

Focal Length       3.6mm

Max. Aperture Ratio       2

Angular Field of View     D : 72?

OPERATIRATIONAL

Shutter Mode   Auto (Rolling shutter)

Gain Control       Auto

White Balance   Auto (3,200°K ~ 6,500°K)

Digital Noise Reduction                 Auto

Day & Night        Auto

IR Distance (850nm)        25m (82ft)

ENVIR ONMENTALTAL

Operating Temperature / Humidity         -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH

MECHANICAL

Ingress Protection           IP66

Dimensions (WxHxD)     70.7 x 61.0 x 192.1mm (2.78" x 2.40" x 7.56")

Weight                 241g (0.53 lb)







Samsung 24 inch Monitor

Brand    Samsung

Monitor Type    LED

Monitor Screen Size Details         23.6"

Monitor Screen Size       23"-24"

HDMI Ports



No

Monitor Speakers            No

Monitor Resolution         1920 x 1080

3D Ready Monitor           No

Touch Screen Enabled Monitor No

Monitor Response Time               5ms

Monitor Contrast Ratio 1000:1 (Static)

Monitor VGA Input         Yes

Monitor DVI Input           Yes

Monitor Dimensions with Stand                21.98" x 17.01" x 8.76"

Monitor Dimensions without Stand         21.98" x 14.22" x 1.94"

Monitor Weight                8.58 lbs



Monitor Refurbished                 No
