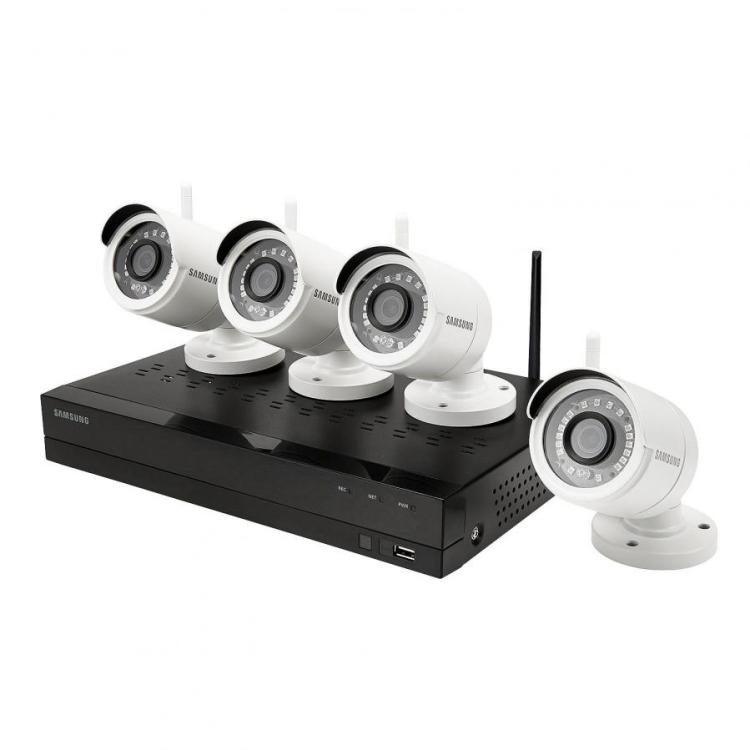

SAMSUNG 4-CHANNEL 1080P HD IP NVR SECURITY SYSTEM WITH 1 TB HARD DRIVE, 4 WIRELESS CAMERAS AND 82' NIGHT VISION 220 VOLTS

About this item

4-channel NVR with 1TB surveillance class hard drive

4x wireless 1080p Full HD, true night and day, weather-resistant cameras

Night Vision up to 130' in ambient lighting, 82' in total darkness

Get event notifications with real-time monitoring and recording using the free Android and iOS app

Description

Easy-to-Install. Easy-to-Connect

With a wireless connection, you'll no longer need to drill holes through your walls and connect cables from your cameras to your NVR.  The Samsung 4-channel, 4-camera Wi-Fi system makes it easy to install without the hassle of cables; simply plug in each camera into a nearby outlet for power.  The Wi-Fi cameras connect to your NVR wirelessly instead of using cables.  For optimal Wi-Fi connection between your NVR and cameras it's recommended that the cameras be positioned in areas that have minimal obstruction between the camera and NVR for a stronger and more stable Wi-Fi connection.  You might also consider limiting the amount of devices connected to your Wi-Fi for faster connectivity and reliable functionality.

1080p Full HD Video

The Full HD Wireless NVR Security System provides 1080p Full HD real-time recording for smooth playback and clear imaging, allowing you to make out details missed on lower resolution cameras. The high-quality resolution delivers sharper video, enabling better forensic inspection of a person's face or license plate.

True Day and Night

The 1080p Full HD Wi-Fi cameras utilize an advanced IR Cut Filter for accurate, vibrant colors and Night Vision mode to capture clear, illuminated footage up to 82 feet in darkness.

Wide Angle Coverage

Experience a wider field of view with the improved 105° viewing angle, which provides maximum coverage of your home and business compared to the traditional 70° to 75° viewing angle cameras.

Event Notification

The Samsung NVR Security System sends you instant notifications when a package arrives or detects someone lurking in the backyard. It also protects you from intruders or thieves and provides tampering alerts, so when someone tries to tamper with your cameras without your knowledge, you'll be alerted.

Specifications

System

Number of Cameras:      4

Number of Channels:     4

Hard Drive Space:            1TB

Wired or Wireless:           Wireless

Average Minimum Setup Time:  30 minutes

NVR

NVR Model:        SNR-73200WN1T

Number of Channels:     4

Number of Channels with Audio:               4

Hard Drive Size: 1TB

Maximum Hard Drive Expandability:        up to 6TB

Recording Resolution:    1,920x1,080 (Full HD)

Recording Frames per Second:   60fps@1080p (15fps@1080p per channel)

Recording Compression:               H.264

Recording Modes Available:        Manual, Schedule (Continuous/Event), Event(Pre/Post)

Video Motion Detection Recording:         Yes

Mobile App Viewing:      Android: Ver 4.4 or above, iOS: 7.0 or above

E-Mail Alert Notification:              Yes

Maximum Number of Remote Viewers: 10 (Up to bandwidth 32M)

Playback and Search Options:     "Fast forward / backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x,1/16x) Step Forward"

Data Backup Options:     Internal HDD, USB

Digital Zoom:     4x Digital zoom on the NVR

Still Frame Capture:        Yes

Operating System:           Linux

Included Accessories:     Remote control, 2 AAA Battery, 12V 2A Power Adapter for NVR, 12V 0.5A Power Adapters for 4 Cameras , Power Extension Cables, CD, Mouse, HDMI Cable, Network cable, Quick Start Guide, Screws, Anchors and Hex Key

Compatible Cameras:     SNC-79440BWN/UC

Camera

Camera Model and Type:              SNC-79440BWN Wireless Bullet Camera

Number of Cameras:      4

Image Sensor Type:         2M CMOS (1/2.9")

TV Lines:              2M

Resolution:         1,920(H)x1,080(v)

Effective Pixels: 1,920(H)x1,080(v)

Aperture:            F2.1

Focal Length (35mm Equivalent):              3.6mm

Angle of View:   Diagonal : 105°

Color or Black and White:             Color

Wireless Camera-DVR Connection:           Yes

Audio Capability:              No

Number of Infrared LEDs:             18

Night Vision Distance:    130' in ambient lighting, 82' in total darkness

Recommended for Outdoor Use:              Yes

Weather Resistance (IP Rating): IP66

Operating Temperature:               '-30°C ~ +50°C (+14°F ~ +129°F)

Operating Humidity:       Less than 90% RH

Tamper Protection:         Yes

Compatible DVRs:            SNR-73200WN1T

Compatible Cables and Connector Type: None

Length of Cable Included:             45ft

Camera Dimensions:       'Ø68 x D149mm (2.68" x 5.87")

Technical Support

Phone Number: 844-WISENET (844-947-3638)

Hours of Availability:       9am-9pm EST, Mon-Sun

Web Support URL:           http://www.samsungsv.com

Package Contents

1 Wireless NVR (SNR-73200WN1T)

4x Wireless Bullet Camera (SNC-79440BW)

Quick Start Guide

Remote Control/ Battery

Power extension cable for cameras (x4)

HDMI Cable

Mouse

Network Cable

12V 2A Power Adapter for NVR

12V 0.5A Power Adapter for Cameras

Screws, Anchor and Hex Key

CD (Remote viewing S/W, User Manual)

Assembled Country

China

Component Country

Imported
