The Worlds Slimmest and Lightest Voltage and Frequency converter is rugged, yet full featured. At only 2.36 inches (6.0cm) in depth and 10.67 lbs. (4.84 kg) in weight, the XS-05 can be installed on to the back of the gas stove or nearby, easily hidden from view.

Product Code: XS-05   Product ID: 27881
Product sold by: samstores.com

$ 1373.9

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!


Suppose you are looking for a slim and lightweight voltage and frequency converter that is rugged and built to perfection. In that case, the Powerxchanger Xs-05 Ss 600w (5 Amps) Specialized Application Series Voltage And Frequency Converter (50 <> 60 Hz) Black is all you need. Thanks to its design, you can install this device anywhere that is easily hidden from view. Moreover, it also helps you safeguard all your electrical equipment from any voltage fluctuation or irregularities. The device also features an audio alarm which helps notify the owner whenever there is an overload, short circuit, or temperature fluctuation. This device will surely give you ideal performance for years to come with so many features.

What you get:

  • high-end voltage regulator and frequency converter
  • Slim and lightweight design for better efficiency
  • Surge protection
  • Short circuit protection
  • Overcurrent protection
  • Reliable and long service life



The XS-05 uses the overseas utilities electrical power to regenerate a new power that not only has the correct voltage and frequency, but through various filters and levels of control, acts as a voltage regulator that eliminates surges and transients. A power factor corrected input (PFC) provides harmonic filtering on the input by removing voltage and current distortions that may be caused by the appliance. The XS-05 provides the appliance with a high quality, constant, and noise free electrical output of 120v~60 Hz – anywhere in the world.

An appliance intended for the USA is designed, manufactured and tested to operate in a 120v~60 Hz environment. As appliances have evolved in electrical sophistication and government efficiency standards have continuously become more stringent, engineers are forced to design each individual component, and the unit itself, to operate in the substantially more efficient 60 Hz.

Installing a step-down transformer to power a 120v~60 Hz designed appliance from a 220v~50 Hz grid will cause the appliance to operate at 50 Hz. At best – it functions but not properly. But most likely, the appliance will have a shortened product life, failed components and unforeseen damage resulting in catastrophic failure.

In other words, the XS-05 does not power the appliance like an installed transformer. It is an adapter that converts 50 Hz utility power, providing an appliance with the correct voltage and frequency of 120v~60 Hz that it was designed and tested for.

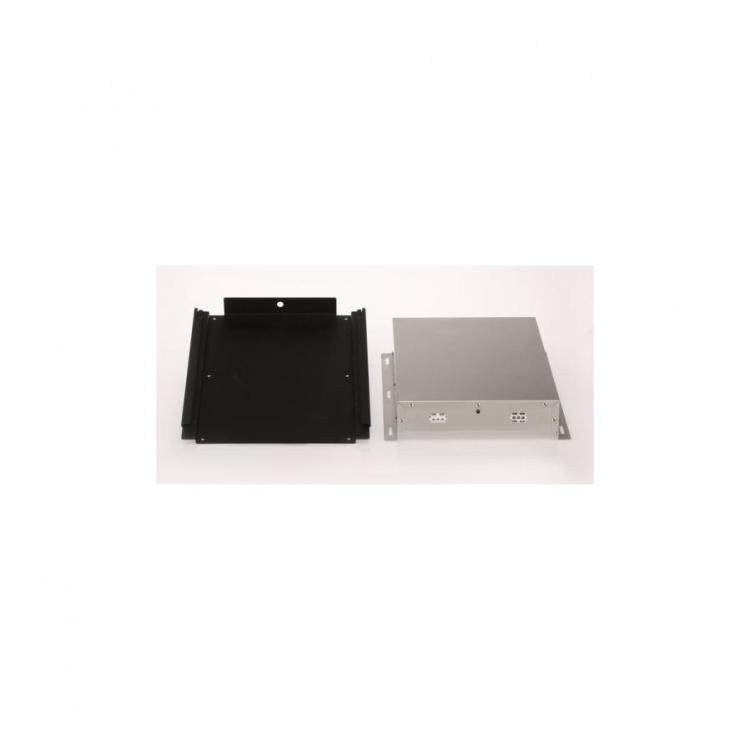

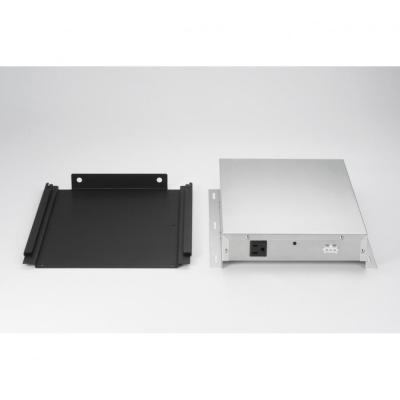

The XS-05 is a rugged full-featured device. Its specialized connecters provide for secure and safe installation. Its slim, lightweight design allows it to be mounted onto an appliance, or nearby via the included mounting plate. This version features specialized non-spark safety connecters for both input and output to provide for secure and safe installation with Gas Cooking Products.



XS-05 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120v~60 Hz electricity for running a single household appliance (up to 600W).

Through sophisticated electronics, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120v~60 Hz output with fluctuations below ± 2% (typical less than 1%).



The XS-05 has sealed, solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life.



Not only will electrical equipment perform better, but the XS-05 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.


Audible alarms notify overload, short circuit and temperature.

The XS-05 meets International Standards. Even though this device would probably not be used in the USA, it also comes with UL and FCC approvals, giving the manufacturer/installer and the end user the confidence that their appliances, which meet these safety standards, are connecting to a device that is also meeting these safety standards.



Frequency Converter

Voltage Converter

Sophisticated Voltage Regulator

Surge Protection

Short Circuit Protection

Over-Current Protection

Power Factor Correction (PFC)

Thermal Protection


High Efficiency

Input EMI and RFI Filters

Output EMI and RFI Filters

Low Harmonic Distortion

Sealed, Solid State Electronics

Continuous Power

Audible Alarms

International Approvals

Wall Mounting Kit


Standard Accessories:

Wall Mount, (4) Input 3-pin Locking Connector Cord Type F, G, I, M

Output Power Cord with 3-pin Locking Connecter





Output Voltage 120Vac

Output Current-Amps @ 60Hz   5A

Voltage Regulation          ± 2% From Set point

Output Frequency           60Hz (Auto-Synchronized to Mains)

Crest Factor        8:1

Voltage Waveform          Sine Wave

Output Distortion (Resistive Load)           <2%

Output Distortion (Reactive Load)            <3%

Non-Linear Peak Current for 30 sec.        40A

Standby Power 10W

Total Harmonic Distortion             < 3% at 100% Linear Load

Output EMI Filter             150 KHz - 30 MHz

Output RFI Filter               30 MHz - 1000 MHz

Clamp Level        190V



Over Current Protection               Over Load Alarm Level: 100% ~ 135%

(Alarm after 1 minute delay, shutdown after 1 minute alarm)

Over Load Shutdown Level: 136%

(Shutdown after 2 second delay)

Short Circuit       Pulsating Type, 40A Peak

Auto-Restart time: 30 seconds



Nominal Voltage              200V/220V/230V/240V

Maximum Continuous Load        600W

Maximum Peak Load      1000W

Input Frequency              46Hz 65Hz

Phase    Single

Noise Filtering   Full-Time EMI/RFI Filtering

Input EMI Filter 150 KHz -30 MHz

Input RFI Filter  30 MHz - 1000Mhz

Over Current Protection               by Re-Settable

Over Current Protector

Voltage Range   180Vac 265Vac

Power Factor     > 0.95

Audible Alarm   over Load Alarm:

Continuous alarm

Short-Circuit Alarm:

1 beep every 2 seconds

Thermo Alarm:

Every other 2 seconds, 32 beeps in 2 seconds

Inrush Surge Capacity    <150A

Voltage Interruption Ride Through          30mS

Efficiency             >92%



LCD        Not Applicable

LED         Not Applicable


Environmental and Safety

Operating Temperature                Up to 2000 Meters:

0° to 45°C

(32°F to 113°F)

Transit/Storage Temp    -15°C to 60°C

(5°F to 140°F)

Relative Humidity            5 – 95% Non-Condensing

Operating Altitude          0 ~ 3000 Meters

Moisture Sensitivity        Sealed Electronics


Natural Ventilation          Yes

External Cooling Fan Control       Not Applicable




Product Dimensions

L×W×H(cm/in)  35.00 × 27.00 × 6.00 cm

13.78 × 10.63 × 2.36 in

Net Product Weight

Net/Gross (kgs/lbs)        4.84 kgs

10.67 lbs

Carton Dimensions

L×W×H(cm/in)  51.00 x 47.00 x 20.00 cm

20.08 x 18.50 x 7.87 in

Shipping Weight               9.54 kgs

21.03 lbs

Warranty             2 Years, Full Replacement

Quality Control Standard              ISO9001

International Approvals                UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,

UL 1012, Seven Edition, October 14, 2008

UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001

DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)

TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)

FCC Part 15: subpart B

EMC 2004/108/EC


Powerxchanger XS-05 SS 600W (5 Amps) Specialized Application Series Voltage And Frequency Converter (50 <> 60 Hz) Black is a powerful, reliable and affordable converter that comes with an output power cord and 3-pin locking connector. It comes with specialized connectors to ensure secure and safe installation. You can mount it onto an appliance, or nearby through the mounting plate as this converter has a slim lightweight design.

What you get

  • A converter that acts as both voltage regulator and frequency converter
  • Lightweight and high efficiency
  • Surge protection, short circuit protection, and over-current protection
  • Ensure reliability and long life of the product
