POWERXCHANGER XS-05 600W (5 AMPS) GA GENERAL APPLICATION SERIES VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

POWERXCHANGER XS-05 600W (5 AMPS) GA GENERAL APPLICATION SERIES VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

The Powerxchanger XS-05 600W (5 Amps) GA General Application Series Voltage and Frequency Converter (50>60 Hz) Black produces clean and constant AC power to help you eliminate any line noise and ensure excellent performance. The device features sealed solid-state electronics that protect your products from humidity and dust, ensuring their reliability and longevity. These products are becoming more popular due to their lightweight, high efficiency, thermal protection, and power factor correction.

What you get:

• A high-end voltage regulator that helps protect equipment from voltage fluctuations
• Wall mounting kit
• Audible alarms
• 3-pin locking connector
• Ideal for all small electronic devices and home appliances

Overview

The XS-05 uses the overseas utilities electrical power to regenerate a new power that not only has the correct voltage and frequency, but through various filters and levels of control, acts as a voltage regulator that eliminates surges and transients. A power factor corrected input (PFC) provides harmonic filtering on the input by removing voltage and current distortions that may be caused by the appliance. The XS-05 provides the appliance with a high quality, constant, and noise free electrical output of 120v~60 Hz – anywhere in the world.

An appliance intended for the USA is designed, manufactured and tested to operate in a 120v~60 Hz environment. As appliances have evolved in electrical sophistication and government efficiency standards have continuously become more stringent, engineers are forced to design each individual component, and the unit itself, to operate in the substantially more efficient 60 Hz.

Installing a step-down transformer to power a 120v~60 Hz designed appliance from a 220v~50 Hz grid will cause the appliance to operate at 50 Hz. At best – it functions but not properly. But most likely, the appliance will have a shortened product life, failed components and unforeseen damage resulting in catastrophic failure.

In other words, the XS-05 does not power the appliance like an installed transformer. It is an adapter that converts 50 Hz utility power, providing an appliance with the correct voltage and frequency of 120v~60 Hz that it was designed and tested for.

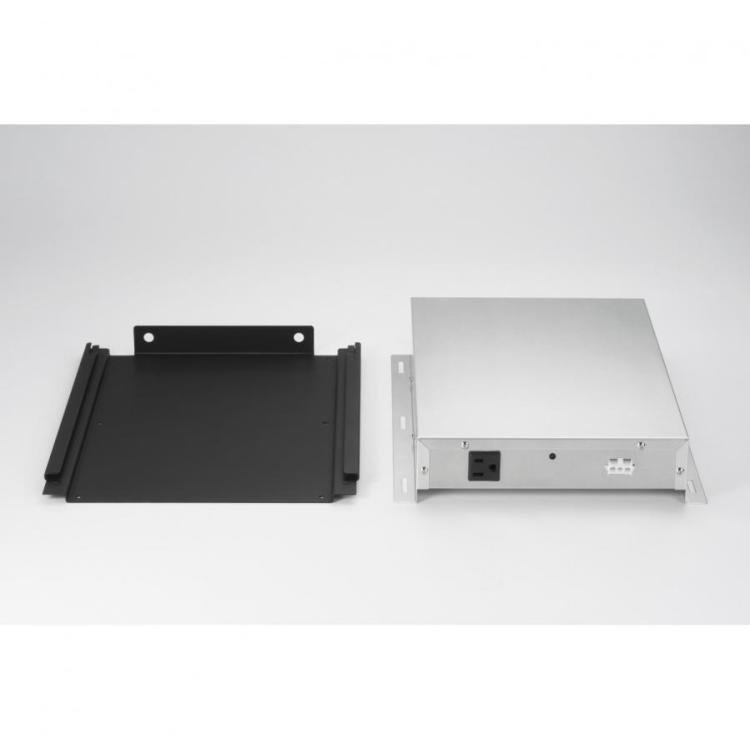

The XS-05 is a rugged full-featured device. Its specialized connecters provide for secure and safe installation. Its slim, lightweight design allows it to be mounted onto an appliance, or nearby via the included mounting plate. This version features specialized non-spark safety connecters for both input and output to provide for secure and safe installation with Gas Cooking Products.

Power

XS-05 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120v~60 Hz electricity for running a single household appliance (up to 600W).

Through sophisticated electronics, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120v~60 Hz output with fluctuations below ± 2% (typical less than 1%).

Reliability

The XS-05 has sealed, solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life.

Safety

Not only will electrical equipment perform better, but the XS-05 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.

Audible alarms notify overload, short circuit and temperature.

The XS-05 meets International Standards. Even though this device would probably not be used in the USA, it also comes with UL and FCC approvals, giving the manufacturer/installer and the end user the confidence that their appliances, which meet these safety standards, are connecting to a device that is also meeting these safety standards.

Features

Frequency Converter

Voltage Converter

Sophisticated Voltage Regulator

Surge Protection

Short Circuit Protection

Over-Current Protection

Power Factor Correction (PFC)

Thermal Protection

Lightweight

High Efficiency

Input EMI and RFI Filters

Output EMI and RFI Filters

Low Harmonic Distortion

Sealed, Solid State Electronics

Continuous Power

Audible Alarms

International Approvals

Wall Mounting Kit

Standard Accessories:

Wall Mount, (4) Input 3-pin Locking Connector Cord Type F, G, I, M

Output Power Cord with 3-pin Locking Connecter

XS-05SS

12060XS-05-SS

Output

Output Voltage 120Vac

Output Current-Amps @ 60Hz   5A

Voltage Regulation          ± 2% From Set point

Output Frequency           60Hz (Auto-Synchronized to Mains)

Crest Factor        8:1

Voltage Waveform          Sine Wave

Output Distortion (Resistive Load)           <2%

Output Distortion (Reactive Load)            <3%

Non-Linear Peak Current for 30 sec.        40A

Standby Power 10W

Total Harmonic Distortion             < 3% at 100% Linear Load

Output EMI Filter             150 KHz - 30 MHz

Output RFI Filter               30 MHz - 1000 MHz

Clamp Level        190V

Protection

Over Current Protection               Over Load Alarm Level: 100% ~ 135%

(Alarm after 1 minute delay, shutdown after 1 minute alarm)

Over Load Shutdown Level: 136%

(Shutdown after 2 second delay)

Short Circuit       Pulsating Type, 40A Peak

Auto-Restart time: 30 seconds

Input

Nominal Voltage              200V/220V/230V/240V

Maximum Continuous Load        600W

Maximum Peak Load      1000W

Input Frequency              46Hz 65Hz

Phase    Single

Noise Filtering   Full-Time EMI/RFI Filtering

Input EMI Filter 150 KHz -30 MHz

Input RFI Filter  30 MHz - 1000Mhz

Over Current Protection               by Re-Settable

Over Current Protector

Voltage Range   180Vac 265Vac

Power Factor     > 0.95

Audible Alarm   over Load Alarm:

Continuous alarm

Short-Circuit Alarm:

1 beep every 2 seconds

Thermo Alarm:

Every other 2 seconds, 32 beeps in 2 seconds

Inrush Surge Capacity    <150A

Voltage Interruption Ride Through          30mS

Efficiency             >92%

Indicators

LCD        Not Applicable

LED         Not Applicable

Environmental and Safety

Operating Temperature                Up to 2000 Meters:

0° to 45°C

(32°F to 113°F)

Transit/Storage Temp    -15°C to 60°C

(5°F to 140°F)

Relative Humidity            5 – 95% Non-Condensing

Operating Altitude          0 ~ 3000 Meters

Moisture Sensitivity        Sealed Electronics

Cooling

Natural Ventilation          Yes

External Cooling Fan Control       Not Applicable

Physical

Product Dimensions

L×W×H(cm/in)  35.00 × 27.00 × 6.00 cm

13.78 × 10.63 × 2.36 in

Net Product Weight

Net/Gross (kgs/lbs)        4.84 kgs

10.67 lbs

Carton Dimensions

L×W×H(cm/in)  51.00 x 47.00 x 20.00 cm

20.08 x 18.50 x 7.87 in

Shipping Weight               9.54 kgs

21.03 lbs

Warranty             2 Years, Full Replacement

Quality Control Standard              ISO9001

International Approvals                UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,

UL 1012, Seven Edition, October 14, 2008

UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001

DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)

TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)

FCC Part 15: subpart B

EMC 2004/108/EC

Are you looking for a converter for your home’s small appliances? If yes, Powerxchanger XS-05 600W (5 Amps) GA General Application Series Voltage And Frequency Converter (50 <> 60 Hz) Black is an excellent choice for you. In order to eliminate line noise and ensure excellent performance, this product produces clean and constant AC power. Also, it contains sealed solid-state electronics that ensure reliability and long life of your products by protecting them from humidity and dust. Lightweight, high efficiency, thermal protection, and power factor correction make these products more popular in the market.

What you get

• Advanced voltage regulator to protect equipment against voltage fluctuations
• Suitable for small home appliances and electronic devices
• Comes with audible alarms and wall mounting kits
• Includes output power cord with 3-pin locking connector
