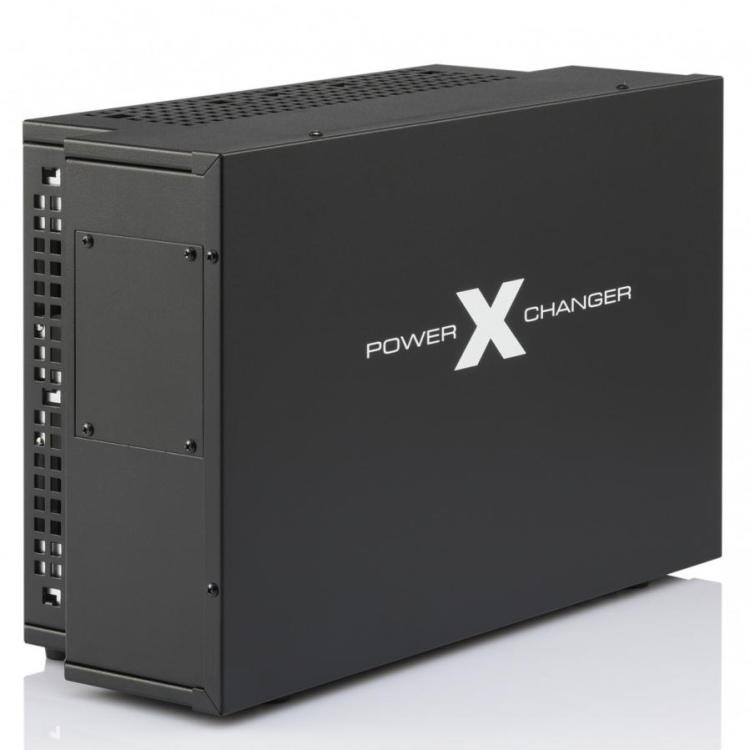

POWERXCHANGER XM-15 1800W (15 AMPS) INSTALLER SERIES VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

Consumer views
Submit Review

Print Page Sent to friend
Product Code: Xm-15 1800W   Product ID: 27878

$2250

Product sold by: samstores.com
In Stock New Product    NO TAX except IL
The Xm-15 is the world’s most powerful Voltage and Frequency converter available for personal use. While being small and portable, it regenerates 15 Amps of power that exceed in quality and regulation of a dual socket home outlet

  Shipping Information

  Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-7 business days!
Samstores Product

Tags: https://www.samstores.com/product-powerxchanger-xm-15-1800w-15-amps-installer-series-voltage-and-27878.html
POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK
Technical information sheet of POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK
POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

The Xm-15 is the world’s most powerful Voltage and Frequency converter available for personal use. While being small and portable, it regenerates 15 Amps of power that exceed in quality and regulation of a dual socket home outlet



The Xm-15 is the most powerful Voltage and Frequency converter in the series, available for remote installation and wiring to the point of use. It regenerates 15 Amps of power, exceeding in quality and regulation of a dual socket home outlet with a constant 120v~60Hz output.



Overview

The Xm-15 is the world’s most powerful Voltage and Frequency converter available for home wiring while matching the power of a dual socket home outlet.



Xm-15 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120v~60 Hz electricity for running household appliances such as refrigerators, gas stoves, washers, gas dryers, microwaves, household power tools, small appliances and even commercial vacuum cleaners.



With all its sophistication, the Xm-15 is the same size and weight of a typical amplifier or game console.



This unit is designed to be Wall Mounted remotely in a convenient location and utilizing the supplied Input Receptacle wired to the two supplied Double Outlets at the points of use.



The Xm-15 features a hardened metal casing.



Power

With sophisticated electronics including power factor correction, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120v~60Hz output with fluctuations below ± 2%, making it the ideal conversion device for taking high-end audio and home theater equipment overseas.



Power for High Performance Audio

To the audiophile, the Xm-15 functions as a Regenerator with Power Factor Correction (PFC). It is a premiere choice for powering audio equipment to satisfy the most demanding audiophiles. With its clean sinewave output (typically < 1%THD) and with virtually no change in amplitude due to input voltage fluctuations and output load transients, audio equipment will always function with optimal performance. Because the output of the Xm-15 regulates so well, another advantage to the audiophile is that other equipment powered by the Xm-15, such as HDTVs and DVRs, will not introduce noise or distortion to the audio output via the common power connection.



Additionally excellent EMI filtering on the input and output of the Xm-15 prevents RFI noise from being injected into the audio output.



Another important feature for audiophiles is the high output surge current capacity (150 Amps) of the Xm-15. This capability to source high surge currents with minimal distortion of the output voltage results with crisp high volume audio transients.



Frequently overlooked is the importance of PFC for noise free operation of audio equipment. Because PFC eliminates voltage and current distortions on the input power leads to the Xm-15, this potential source of audio noise is virtually non-existent.



Reliability

The Xm-15 has sealed solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life. An External Fan automatically cools the sealed electronics whenever the load exceeds 15 Amps or when environmental factors exceed operating temperature.



Safety

Not only will electrical equipment perform better, but the Xm-15 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities, such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.



Audible alarms notify overload, short circuit and temperature.



The Xm-15 not only meets the stringent standards of the UL and FCC in the USA, but also meets International Safety Standards.



Features

Frequency Converter

Voltage Converter

Sophisticated Voltage Regulator

Surge Protection

Short Circuit Protection

Over-Current Protection

Power Factor Correction (PFC)

Thermal Protection

Lightweight

High Efficiency

Input EMI and RFI Filters

Output EMI and RFI Filters

Low Harmonic Distortion

Sealed, Solid State Electronics

External Cooling Fan

Continuous Power

Audible Alarms

International Approvals

Dual Socket

Includes Remote Installation Kit

Standard Accessories:

Wall Mount, Power Inlet,(1) Power Outlet, Power Connection Cord, (4) Input Cord Type F, G, I, M

Xm-15

12060Xm-15

Output

Output Voltage 120Vac

Output Current-Amps @ 60Hz   15A

Voltage Regulation          ± 2% From Setpoint

Output Frequency           60Hz (Auto-Synchronized to Mains)

Crest Factor        3:1

Voltage Waveform          Sine Wave

Output Distortion (Resistive Load)           <2%

Output Distortion (Reactive Load)            <3%

Non-Linear Peak Current for 30 sec.        45A

Standby Power 10W

Total Harmonic Distortion             < 3% at 100% Linear Load

Output EMI Filter             150Khz - 30Mhz

Output RFI Filter               30Mhz - 1000Mhz

Clamp Level        190V

Protection

Over Current Protection               Over Load Alarm Level: 100% ~ 119%

(alarm after 1 minute delay, shutdown after 1 minute alarm)

Over Load Shutdown Level: 120%

(shutdown after 2 second delay)

Short Circuit       Pulsating Type, 40A Peak

Auto-Restart time: 30 seconds

Input

Nominal Voltage              200V/220V/230V/240V

Maximum Continuous Load        1800W

Maximum Peak Load      3000W

Input Frequency              46Hz 65Hz

Phase    Single

Noise Filtering   Full-Time EMI/RFI Filtering

Input EMI Filter 150Khz -30Mhz

Input RFI Filter  30Mhz - 1000Mhz

Over Current Protection               By Re-Settable

Over Current Protector

Voltage Range   180Vac 265Vac

Power Factor     > 0.95

Audible Alarm   Over Load Alarm:

Continuous alarm



Short-Circuit Alarm:

1 beep every 2 seconds



Thermo Alarm:

Every other 2 seconds, 32 beeps in 2 seconds

Inrush Surge Capacity    <150A

Voltage Interruption Ride Through          20mS

Efficiency             >92%

Indicators

LCD        Available on Designer Series Only

LED         Available on Designer Series Only

Environmental and Safety

Operating Temperature                Up to 2000 Meters:

0° to 45°C

(32°F to 113°F)

Transit/Storage Temp    -15°C to 60°C

(5°F to 140°F)

Relative Humidity            5 – 95% Non-Condensing

Operating Altitude          0 ~ 3000 Meters

Moisture Sensitivity        Sealed Electronics

Cooling

Natural Ventilation          Yes

External Cooling Fan Control       Auto on/off, controlled by heat sink temperature & load level

Physical

Product Dimensions

L×W×H(cm/in)  41.50 × 26.50 × 16.50 cm

16.34 × 10.43 × 6.5 in

Net Product Weight

Net/Gross (kgs/lbs)        14.46 kgs

31.88 lbs

Carton Dimensions

L×W×H(cm/in)  58.00 x 35.00 x 58.00 cm

22.83 x 13.78 x 22.83 in

Shipping Weight               22.43 kgs

49.45 lbs

Warranty             2 Years, Full Replacement

Quality Control Standard              ISO9001

International Approvals                UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,

UL 1012, Seven Edition, October 14, 2008

UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001

DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)

TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)

FCC Part 15: subpart B

EMC 2004/108/EC


POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK
Recommended accessories for POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK
    SamStores’s price
POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK



POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK
Customer Reviews of POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK
Name Rating Comments
POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK


POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK
Similar products
Products   SamStore’s price
POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

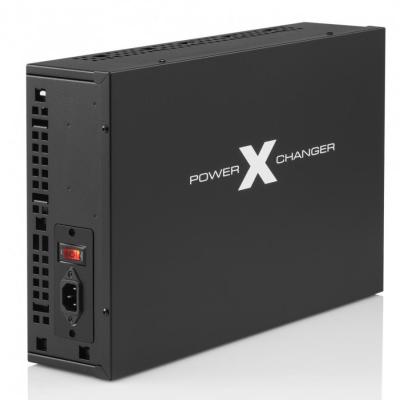

POWERXCHANGER Xm-15 1800W (15 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK POWERXCHANGER Xm-5 600W (5 Amps) Installer Series VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK
