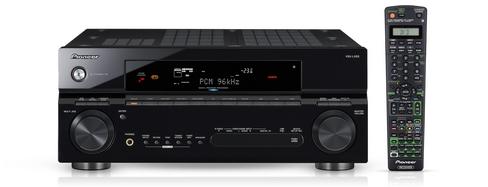

PIONEER VSX-LX50 RECEIVER FOR 110-240 VOLTS

Main Features

Output Power per Channel               150W

Impedance at Output Level               6Ω

Number of Channels                         7

Signal / Noise Ratio                           92 / 65 dB

Input Connections                             2 x HDMI, 2 x coaxial, 4 x optical, 3 x Audio, 5 x Audio / Visual, 5 x S-video, 5 x composite, 3 x component, 1 x USB host, 1 x iPod, 7.1 multi-channel

Output Connections                           1 x Audio, 1 x HDMI, 2 x S-video, 1 x component, 3 x composite, 1 x optical, pre-amp (all 7.1 ch.)

Tuner Pre-set Stations                       30

THX Certified                                   Yes

HD Digital Film Direct 24                  Yes

MCACC                                           Yes (Advanced, 9 band)

HD Audio Formats                             Dolby Digital Plus, Dolby TrueHD

Remote Control                                  LCD Learning

Power Consumption                           450W / 0.6W (in use / standby)

Weight                                               15.3 kg

Dimensions (W x H x D)                    420 x 173 x 465 mm mm

Surround Sound Formats

Dolby Digital                                      Yes

Dolby Digital EX                                Yes

Dolby Pro Logic II                             Yes

Dolby Pro Logic IIx                            Yes

Dolby True HD                                  Yes

DTS                                                  Yes

DTS-ES Discrete 6.1                          Yes

DTS-ES Matrix 6.1                             Yes

DTS Neo: 6                                        Yes

DTS 96/24                                          Yes

DTS-HD Master Audio                       Yes

WMA 9 Pro                                        Yes

Surround Modes                                  13 + 1

Power Output

Power output per channel                     150W

Condition                                             DIN 1kHz, 1% THD, 6Ω

Rated Power Output 1                         30W + 130W

Input (Sensitivity/Imp.): LINE               335mV / 47 kohm

Frequency Response: LINE                  5 - 100 000 Hz, +0 / -3 dB

Signal-to-Noise Ratio: LINE (DIN)       92 / 65 dB

Power Requirements                            AC 110 - 230V, 50 / 60Hz

Construction

Direct Construction                              Yes

Advanced Direct Construction              Yes

Amplifier Specifications

Large Electrolytic Capacitors                Yes

Discrete Output                                    Yes, (A.D. Energy Amplification Type)

Front L & R Bi-Amplifier Function        Yes

DSP design                                          Advanced digital core engine

Digital Signal Processor                        3rd Generation SHARC Processor and Freescale

D/A Converter                                     192kHz / 24-bit

Tuner Specifications

Radio Data System (RDS)                   Yes

Random Preset Stations                       30

Usable Sensitivity (Mono)                    15.2 dBf, IHF

Sensitivity Mono at 1,3
