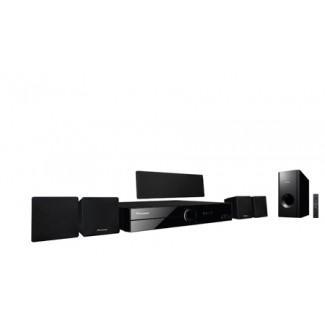

Pioneer HTZ101 features USB movie playback, CD -> USB Recording, Karaoke function and PAL to NTSC conversion for worldwide use.

Product Code: HTZ-101   Product ID: 29539
Product sold by: samstores.com

$ 215

Availability: Not In Stock

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

Region Free playback of all DVD movies from region 1-6 including RCE/REA movies

This player does not need a multi-system TV or an external video converter.

Built-in video converter allows playback of any DVD on any TV! Play PAL movies on a NTSC TV or play NTSC movies on a PAL TV. Basically this DVD player will play any DVD movie on any TV without any extra equipment!

Power supply: 110-120-220-240 Volts 50-60hertz for use world wide.


USB movie playback

This useful feature allows the playback of DivX videos from USB mass storage class devices in addition to CD-R/CD-RW/DVD-RW discs. DivX video lets you enjoy highly compressed files in quality pictures.


CD -> USB Recording

Without the need for a PC, you can directly record songs from CDs to USB devices. The data is stored in MP3 format with the choice to choose the bit rate from 128/192/320 kbps.


Karaoke function

Convert your home theatre system into a karaoke system! This is now possible thanks to dual mic inputs with volume control, key control and echo.




Functions                                                          5 (DVD/Tuner/AUX/USB/Portable In)



Output Power PMPO                                       2600 W

RMS Front, 1 kHz, 10 % THD, 4 ohms            30 W/ch

Centre, 1 kHz, 10 % THD, 4 ohms                   30 W/ch

Surround, 1 kHz, 10 % THD, 4 ohms               30 W/ch

Subwoofer, 100 Hz, 10 % THD, 4 ohms           60 W (8 ohms)


Playback Media and Playback Modes

Progressive Scan (PAL/NTSC)                        Yes


DL/DVD-RW*1                                              Yes*2

DVD+R (Video)/DVD+RW (Video)*1            Yes

CD/CD-R/CD-RW*1                                      Yes

Music File: MP3, WMA                                   Yes

Video File: DivX Video, JPEG                          Yes

GigaByte Music (DVD Data Disc

Playback)                                                         Yes

PHOTO + MUSIC MIX                                  Yes


Surround Format and Sound Features

DTS, Dolby Digital, Dolby Pro Logic II             Yes

Bass Mode                                                       Yes

Karaoke (Key Control, Echo)                           Yes



USB Memory Audio Ready                              1

HDMI                                                              1

Component Video Out                                     1

S-Video Out/Composite Video Out                  0/1

Analogue Audio Input                                       1

Power Requirements                                         110-240 V 50/60 Hz


Dimensions (W x H x D)/Weight

Receiver Unit (mm/kg)                                      360 x 66 x 327/2.5

Front Speaker (mm/kg)                                     96 x 96 x 85/0.4

Centre Speaker (mm/kg)                                  300 x 87 x 65/0.6

Surround Speaker (mm/kg)                               96 x 96 x 85/0.4

Subwoofer (mm/kg)                                          190 x 360 x 320/3.8
