ONKYO TXSR309 5.1 CHANNEL HOME THEATER AUDIO VIDEO RECEIVER AMPLIFIER 220-240 VOLT

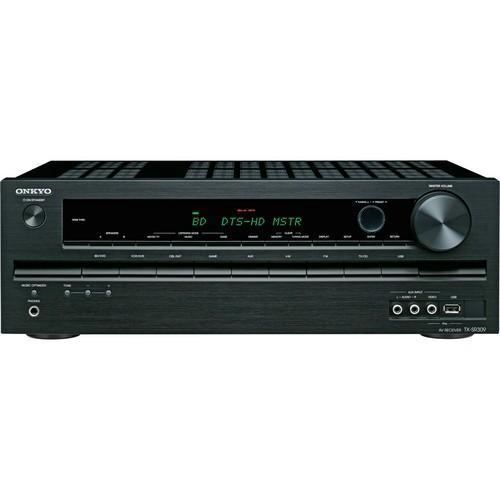

Onkyo TX-SR309 220-240 Volt 5.1 Channel Home Theater Audio Video Receiver Amplifier

High Quality Audio from All Sources

Onkyo presents the TX-SR309 Region Free 5.1 Channel Home Theater Audio Video Receiver Amplifier an entry-level A/V receiver fine-tuned to power your system right out of the box. Set-up is simple and adjustments are easy, thanks to a new overlaid on-screen display. Also new at this level is PLL jitter-cleaning circuit technology to reduce distortion, and a front-panel USB port that provides a high-quality digital link to your iPod/iPhone. To get the best from your compressed audio files, the Region Free TX-SR309 employs Onkyo’s proprietary Advanced Music Optimizer. This receiver also handles high-def, lossless audio in the form of Dolby TrueHD and DTS-HD Master Audio. These are carried by three HDMI inputs that also supportimmersive 3D video content. And whether you’re gaming in 3D or not, you can choose from four customized audio modes to match your gaming content. It all adds up to one high-value proposition.

HDMI Support for 3D Video and Audio Return Channel

Direct Digital Connection of iPod/iPhone via Front-Panel USB Port

Decoding of High-Definition Surround-Sound Codecs

Convenient Overlaid On-Screen Display via HDMI

Four Audio Game Modes for More Realistic Action

192 kHz/24-Bit TI Burr-Brown DACs Improve Jitter Performance to Deliver Clearer Sound

Advanced Music Optimizer to Enhance Compressed Digital Music Files

Onkyo TX-SR309 220-240 Volt Home Theater Audio Video Receiver Features...

ADVANCED FEATURES

HDMI Support for 3D, Audio Return Channel, Deep Color, x.v.Color, LipSync, Dolby TrueHD, DTS-HD Master Audio, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC

Direct Digital Connection of iPod/iPhone via Front-Panel USB Port

Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High-Resolution Audio Decoding

Overlaid On-Screen Display (OSD) via HDMI

AMPLIFIER FEATURES

120W/Ch at 6 O, 1 kHz, 1%, 1 Channel Driven, JEITA

100W/Ch at 6 O, 1 kHz, 1%, 1 Channel Driven, IEC

65W/Ch at 8 O, 20 Hz–20 kHz, 0.7%, 2 Channels Driven, FTC

H.C.P.S. (High Current Power Supply) Massive High Power Transformer

Optimum Gain Volume Circuitry

PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

PROCESSING FEATURES

TI Burr-Brown 192 kHz/24-Bit DACs for All Channels

Advanced 32-Bit Processing DSP Chip

4 DSP Modes for Gaming: Rock, Sports,Action, and RPG (Role Playing Game)

Advanced Music Optimizer for Compressed Digital Music Files

Mass Storage Class USB Memory Playback Capability

Theater-Dimensional Virtual Surround Function

CinemaFILTER

Direct Mode

Double Bass Function

Non-Scaling Configuration

A-Form Listening Mode Memory

CONNECTION FEATURES

3 HDMI Inputs and 1 Output

HDTV-Capable (720p/1080i) Component Video Switching (2 Inputs and 1 Output)

5 Composite Video Inputs (1 Front/4 Rear) and 2 Outputs

3 Digital Audio Inputs (2 Optical and 1 Coaxial)

6 Analog Audio Inputs (1 Front/5 Rear) and 1 Output

Subwoofer Pre Out

Speaker A/B Terminals

Color-Coded Speaker Terminals

Headphone Jack

OTHER FEATURES

Crossover Adjustment (40/50/60/70/80/90/100/120/ 150/200 Hz)

A/V Sync Control (Up to 400 ms at 48 kHz)

Tone Control (Bass/Treble) for Front L/R Channels

3-Mode Display Dimmer (Normal/Dim/Dimmer)

40 FM/AM Random Presets

RIHD (Remote Interactive over HDMI) for System Control
