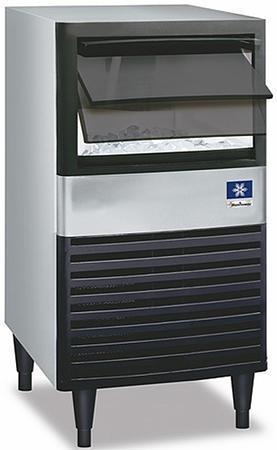

MANITOWOC MAUDP0080AINT UNDER COUNTER ICE MAKER 220VOLT, 50HZ NOT FOR USA

MANITOWOC MAUDP0080AINT UNDER COUNTER ICE MAKER 220VOLT, 50HZ NOT FOR USA

If you are looking for a commercial-grade under-counter ice maker, then the new Manitowoc MAUDP0080AINT Under Counter Ice Maker 220volt, 50hz Not for USA is perfect for you! This 220 volts under counter ice maker has a massive 31LB (14 Kg) ice storage capacity. The compact design allows easy placement under the counters, making it a perfect small volume ice maker with a built-in Bin. The clean, crisp, and coordinated interior gives you perfectly shaped ice with each use, and its attractive and durable stainless-steel cabinet ensures you get a long life out of the product. It's easy-to-access door can slide up and out of the way effortlessly, and its patented sanitizing and cleaning technology ensures you stay hygienic and safe.

What you get:

• Compact size under counter ice maker
• 220 volts
• 14KG ice storage capacity
• Dice shaped ice
• Standard features
• Durable and attractive stainless-steel cabinet
• Easy access door
• Patented sanitizing and cleaning technology
• Front air intake and exhaust
• Crisp, clean, and coordinated interior

• 220Volt, 50Hz, Undercounter Ice Maker

• 1.059 ft³ (0.03m³) Cabinet volume

• 31 lb. (14.0 Kg) ice storage capacity*

• 102 lbs/24hours Storage Capacity

• 5.2 Amps

• Dice Ice shape

• NSE, cULus Listed

• CE Certified

• Standard Features

• Compact size for easy placement under counters or as a stand alone.

• Ideal for any small-volume ice need with ice maker and bin in one.

• Clean, crisp, coordinated interior.

• AlphaSan® in key internal components to extend time between cleanings.

• Flat, right-angle plug for easier installation in tight spaces.

• Attractive, durable stainless steel cabinet.

• Easy access door, slides up & out of the way.

• Patented cleaning and sanitizing technology.

• Manitowoc’s proven vertical evaporator using proprietary technology is made in Manitowoc, WI.

• Easy access air filter designed for longer operation in greasy and dusty environments.

• Front air intake and exhaust.

• CFC-FREE R-134A refrigerant.

• Air Flow Top View: Air in left, air outright, no side vents. Great for installation under countertops and next to other equipment.

• Front Access: Initiate ice, off, and clean operations with a simple upfront selector switch. No need to remove the front panel. Now easier to see and access.

• Air Filter: Slides out from left side front without tools, easy to clean, the reusable filter protects condenser from lint, grease, and dust.

Technical Specification

Voltage and Frequency:  220Volt, 50Hz

Storage capacity:  31 lb. (14.0 Kg) ice

Ice Production (24Hrours)

46 lbs./102 lbs:  70° Air/50°F Water/ 21° Air/10°C Wa

32 lbs./71 lbs:  90° Air/70°F Water/ 32° Air/21°C Water

Power kWh/100 lbs. @ 90°/70°F: 10.7

Potable Water Usage @ 90°/70°F per 100 lbs/45.5 kgs of ice: 43.1 gal

BTU Per Hour:  2,050 (average)/ 2,500 (peak)

Compressor:  Nominal rating: 1/4 HP

Legs:  Adjustable from 6.00"-7.25"/ (15.24-17.78 cm).

Ice Storage:  One piece bin liner

Insulation:  Insulation foamed-in-place with CFC-FREE foam.

Refrigerant : R-134A

Operating Limits

Ambient Temperature Range:  40 to 110F (1.6 to 43C)

Water Temperature Range:  33 to 90F (0.6 to 32C)

Water Pressure Ice Maker Water In:  Min. 20 psi (138 kPA)/ Max. 80 psi (551 kPA)

Ice Shape:  Dice (2.22 x 2.22 x 2.22 cm)

Weight and Dimension

Unit Dimensions:  36"H x 19.68"W x 22.34"D
