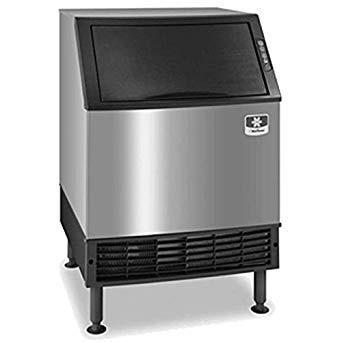

MANITOWOC MAOUDF0240AINT UNDER COUNTER ICE MAKER 220 VOLTS 60 HZ

5

• 208-230Volt, 60Hz/1Ph, Under Counter Ice Maker • 215 lbs/24 hours Production Capacity • 90 lbs. ice storage capacity • 1/3 HP Compressor Motor • 40˚ to 110˚F (4.4˚ to 43.3˚C) Ambient Temperature Range • Cube‐style • Air‐cooled • Self contained • Air Flow • Removable Bin • Air Filter • Electronic controls • Dice size cubes • 6" adjustable legs with flanged feet • AHRI certified • NSF, cULus, CE Approved Technical Specification Voltage 208-230Volt, 60Hz, 1Ph Production Capacity 215 lbs/24 hours Production Capacity Ice storage capacity 90 lbs. Potable water usage gal/100 lbs. ice @90/70˚F 16 Cabinet volume 3.037 ft³ (0.086 m³) BTU Per Hour 2700 average, 3,300 peak Compressor Motor 1/3 HP Ambient Temperature Range 40˚ to 110˚F (4.4˚ to 43.3˚C) Water Temperature Range 45˚ to 90˚F (4.4˚ to 32.2˚C) Amps 3.5 Water Pressure Ice Maker Water In Min. 20 psi (137.9 kPA) Max. 80 psi (551.1 kPA) Condenser Inlet Water In (Water-cooled only) Min. 20 psi (137.9 kPA) Max. 150 psi (1,034.2 kPA) Approved NSF, cULus, CE Approved Certifications AHRI certified Ice Shape (Dice) 0.88"H X 0.88"W X0.88 D" Weight and Dimension Product Dimension 38.50"H x 26"W x 28"D

Product Code: MAOUDF0240AINT   Product ID: 30952
Product sold by: samstores.com

$ 3600

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

·         208-230Volt, 60Hz/1Ph, Under Counter Ice Maker

·         215 lbs/24 hours Production Capacity

·         90 lbs. ice storage capacity

·         1/3 HP Compressor Motor

·         40 to 110F (4.4 to 43.3C) Ambient Temperature Range

·         Cubestyle

·         Aircooled

·         Self contained

·         Air Flow

·         Removable Bin

·         Air Filter

·         Electronic controls

·         Dice size cubes

·         6" adjustable legs with flanged feet

·         AHRI certified

·         NSF, cULus, CE Approved



Technical Specification

Voltage

208-230Volt, 60Hz, 1Ph

Production Capacity

215 lbs/24 hours Production Capacity

Ice storage capacity

90 lbs.

Potable water usage gal/100 lbs. ice @90/70F

16

Cabinet volume

3.037 ft³ (0.086 m³)

BTU Per Hour

2700 average, 3,300 peak

Compressor Motor

1/3 HP

Ambient Temperature Range

40 to 110F (4.4 to 43.3C)

Water Temperature Range

45 to 90F (4.4 to 32.2C)

Amps

3.5

Water Pressure Ice Maker Water In

Min. 20 psi (137.9 kPA)

Max. 80 psi (551.1 kPA)

Condenser Inlet Water In (Water-cooled only)

Min. 20 psi (137.9 kPA)

Max. 150 psi (1,034.2 kPA)

Approved

NSF, cULus, CE Approved

Certifications

AHRI certified

Ice Shape (Dice)

0.88"H X 0.88"W X0.88 D"

Weight and Dimension

Product Dimension

38.50"H x 26"W x 28"D
