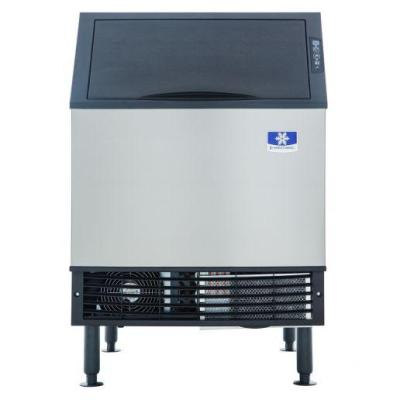

MANITOWOC MAOUDF0310AINT UNDER COUNTER ICE MAKER ICE MAKER WITH BIN, CUBE-STYLE 208-230VOLT, 60HZ/1PH

Make and store ice in one compact machine with this Manitowoc UDF0310A-261 NEO undercounter ice machine. This air cooled ice machine combines impressive ice production, user-friendly controls, and simple maintenance in a space-saving undercounter package! Ideal for making ice in small volume applications or as a supplement to a larger ice machine, this unit can produce up to 286 lb. of dice cubes per day while boasting an ample 119 lb. bin. A push pad control and indicator panel boasts universally recognizable display icons that show you when the power's on, the bin's full, service is needed, and when there's a clean cycle in progress. There's even a "delay" button that halts ice production for 4, 12, or 24 hours, making it perfect for operations that are only open for portions of a day! The buttons are brightly illuminated by LED lights and placed on the slanted bin front so that you can easily press and view them without having to bend over.

This ice machine features an easy-access door that slides up and out of the way, giving you a clear path to the ice for simple filling of pitchers, glasses, and even transport buckets. It also conveniently includes an ergonomic scoop with a comfort grip handle, along with a holder that can be mounted on either side of the machine for easy storage and access. The machine's air filter is designed for simple, tool-free removal for quick access during routine cleaning and maintenance, while the bin can be easily removed for full access to the machine's interior components during more thorough cleaning and maintenance. A 208-230V, 1 phase electrical connection is required for operation.

Overall Dimensions:
Width: 30"
Depth: 28 1/2"
Height: 38 1/2"

Manitowoc Ice UDF0310A Specs

Quantity

1/Each

Shipping Weight

225 lb.

Width

30 Inches

Depth

28 1/2 Inches

Height

38 1/2 Inches

Amps

4.5 Amps

Hertz

60 Hertz

Phase

1 Phase

Voltage

208 - 230 Volts

24 Hour Ice Yield

286 Pounds

Bin Storage Capacity

119 lb.

Condenser Type

Air Cooled

Features

NSF Listed

Ice Type

Cubes Regular Size Cubes

Installation Type

Undercounter

Plug Type

Hardwire

Power Usage

7 kWh per 100 lbs.

Type

Ice Machines

Water Usage

15.5 Gallons Per 100 lbs.
