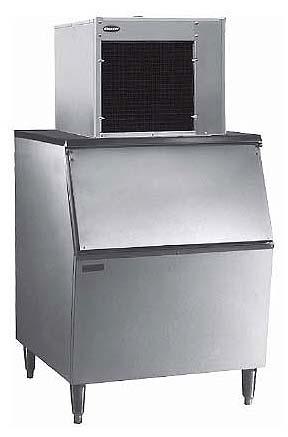

FOLLETT FOTMFE425ABTINT MF400 SERIES FLAKE ICE MACHINE 220 VOLTS (NOT FOR USA)

Features The required ice for clinical labs, rehab and medical research - high surface area of flake ice chills quickly, maintains samples at desired temperature - holds test tubes and lab vials securely, even when ice is melting - molds well in ice bag and rehab applications for best skin contact and swelling control Perfect for foodservice and grocery displays - cradles fish and vegetables without bruising - securely supports salad bar containers without tipping Efficient, dependable design - continuous icemaking process saves substantial water and electricity compared to cube ice, making flake ice displays more economical - stainless steel frame and cabinet resist corrosion - heavy-duty stainless steel evaporator, auger and top bearing deliver outstanding reliability - solid-state PC board monitors torque and provides at-a-glance machine status - high-pressure cut-out switch protects machine from water-loss and fan failure Wide range of ice bins available to meet virtually every storage need - compatible with more than 20 of Follett’s ice storage bins - stainless steel exteriors and polyethylene bin liners ensure long bin lives Maestro 400 series ice machine Ice type Condenser V/Hz/Ph Item number - foamed CFC-free polyurethane insulation minimizes melting - storage capacities from 425 lb , widths from 22.00" (55.9 cm) Follett modular flake ice machines offer the right ice for a broad range of healthcare and foodservice applications as well as exceptional reliability for long equipment life. Both air- and water-cooled models use environmentally responsible R404a refrigerant and produce approximately 425 lb/day of soft, moldable flake ice.

Specification W2 Width 18.88" (48.0 cm) fits on 22.00" wide dispensers or bins D2 Depth 20.75" (52.7 cm) H2 Height 17.00" (43.2 cm) Service clearance 12.00" top - no front obstructions 6.00" on exhaust side (right side) C1 Electrical 230 V/50/1 – MFE400 models 5 amps, max fuse 20 amp, 7' (2 m) cord only C2 Water inlet 3/8" OD push-in water inlet installation of an in line water filtration system is recommended C3 Drain1 3/4" MPT water-cooled models, require separate condenser drains Water-cooled ice machine connections C4 – 1/4" FPT condenser inlet, C5 – 1/4" FPT condenser drain C6 Ice bin signal cord Air temperature 50 -100 F (10 - 38 C) Water temperature 45 - 90 F (7 - 32 C) Potable water pressure 10 - 70 psi (69 - 483 kPa) Condenser water pressure 10 - 125 psi (69 - 861 kPa) Ice production at 70 F (21 C) air, 50 F (10 C) water air-cooled models - 454 lb (206 kg) water-cooled models - 447 lb (202 kg) Ice production at 90 F (32 C) air, 70 F (21 C) water air-cooled models - 323 lb (147 kg) water-cooled models - 371 (168 kg) Energy consumption 90 F (32 C) air, 70 F (21 C) water air-cooled models – 5.7 kWh, water-cooled models – 5.5 kWh per 100 lb (45 kg) ice Heat rejection air-cooled models – 5,000 BTU/hr, water-cooled models – 1400 BTU/hr to air, 3600 BTU/hr to water Water consumption 12.6 gal (48 L) of potable water per 100 lb (45 kg) of ice (per AHRI test standards) Water flow requirement for water-cooled condensers 73 gallons/100 lb of ice (276 L/45.4 kg) at 70 F (21 C) Approximate ship weight 160 lb (73 kg) NOTE: For indoor use only
