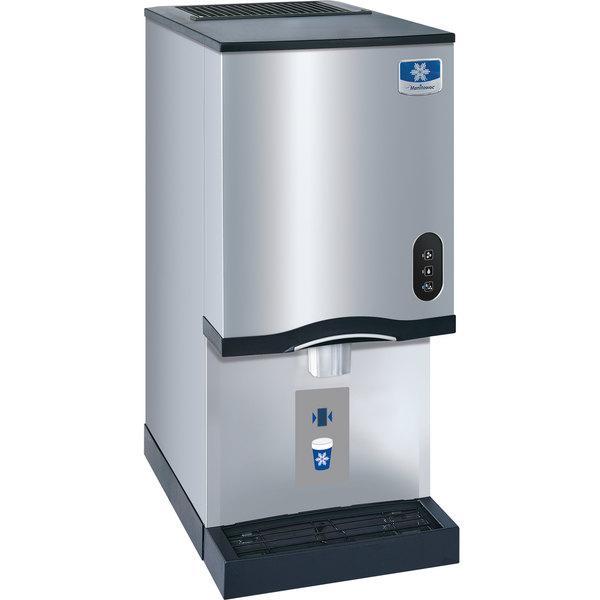

MANITOWOC MACNF0201INT COUNTERTOP NUGGET ICE MAKER & DISPENSER ICE MAKER 220 VOLTS NOT FOR USA

• New bite-sized nugget boasts 85% ice content* with only 15% water offering one of the best nugget ratios for maximum cooling and minimal drink dilution. • Up to 315 lbs. (143 kgs) standard daily ice production including ice and water content. • New DuraTech™ front panel for easy cleaning and reduced hardwater staining in the dispense area. • Only 16.25" (41.28 cm) wide by 24.00" (61.00 cm) deep by 35.00" (89.00 cm) tall on the RNS12 and 42.00" (107.00 cm) tall without legs; legs sold separately. • Trouble-free ice dispensing. Simply place cup under chute and activate. • Two ice activation options: activation arm or touchless. • Dispense opening (10.50"/ 26.67 cm) from grate to chute maximizes clearance for tall containers. • Larger drain pan minimizes ice spillage. • Blue LED light provides dispense visibility for rooms with limited ambient light. • Drain connections in back or bottom of unit for flush mounting. • Manitowoc’s patented cleaning technology manages the cleaning process from start to finish.

(230/50/1 ice machines are factory pre-wired with a 6' (180 cm) power cord only, no plug is supplied.

Total ampacity: Air-cooled: 10.3 amps.

Maximum fuse size: Air-cooled: 15 amps.

HACR-type circuit breakers can be used in place of fuses.

BTU Per Hour: 2,300 (average) Compressor: Nominal rating: 1/3 HP Refrigerant: R404A

Operating Limits: • Ambient Temperature Range: 45-110F (7.2-43.3C) • Water Temperature Range: 45-90F (7.2-32C) • Water Pressure Ice Maker Water In: Min. 20 psi (137.9 kPA) Max. 80 psi (551.1 kPA)
