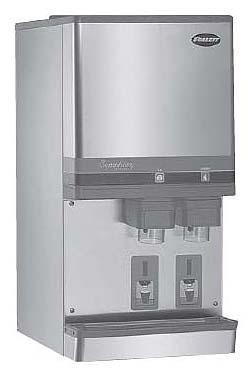

FOLLETT F12CI400A-SI-INT ICE MAKER WITH SENSORSAFE INFRARED DISPENSING FOR 220V/60HZ AND 230V/50HZ

Difference between AIR COOLED & WATER COOLED

The refrigeration system in ice machines has to be cooled during operations because of the heat that is generated during the mechanical process. These are the two types: Air Cooled or Water Cooled

*Air cooled:

1 Good-Uses less water- It is cooled by a fan

2 Good-Better for environment

3 Bad-Has a tendency to heat the room where it is located more than water cooled

4 Bad-Little noisier than water cooled

5 Good-Most popular

*Water cooled:

1 Good-Quieter than air cooled

2 Good-More energy efficient

3 Good-Does not raise room temperature

4 Bad-Cost for water cooled is in some cases higher

5 Bad-A lot more water is used which some consider to be a waste

6 Bad-Water bill is higher

7 Bad-Water filtration systems have to be changed more frequently because of water usage

These are the good and the bad for both. It's simply the way in which the systems are cooled

Attractive, space-saving design

• Narrow 16" (407mm) width and 22" (559mm) depth fits on standard counters without overhang

• Install on countertop or wall mount above a sink

• Base cabinet available for freestanding applications

• High quality stainless exterior

• Attractive, modern styling

SensorSAFE™ accessory offers even more sanitation and convenience

• Infrared sensing eliminates container to dispenser contact, reduces chance of cross-contamination

• Easy, one-hand filling of containers

• Attractive graphics direct users to actuation zone

Chewblet ice – perfect for healthcare and foodservice

• Soft, chewable compressed nugget ice

• Consumer-preferred over cubes

• Slow melting, maintains drink temperature

Easy installation

• All one unit, no assembly required

• Cord and hospital-grade plug provided (220V/230V models, cord only)

State-of-the-art Maestro icemaker

• Stainless steel evaporator and auger

• Environmentally-friendly R404A icemaker produces approximately 400 lbs (181kg) of ice daily, fills bin quickly

• Energy-efficient; no costly defrost cycles or high amounts of waste water

• Quiet production; no noisy harvest cycles

• Slide out electrical box with diagnostic circuit board

Accessories

• SensorSAFE actuation (standard on wall mount models)

• Water filter kit (item# 00130229)

• 4" (102mm) leg kit (item# AF10LBLEGS)

• Base stand (item# AF12CABNET)

• SafeCLEAN™ environmentally-responsible ice machine cleaner (item# 00132001)

Wall Mount Models

• Wall mount bracket standard • SensorSAFE standard

• No drain pan. Drain pan available – contact factory.

• Utility connections through back as shown

Countertop Models

• Utility connections through back or bottom. Back connections shown above.

All Models - Required Clearances

• 6" (153mm) at top for ventilation, 12" (305mm) recommended for service

• 6" (153mm) right side

• See Dispenser Detail Sheet, form# 2075, for important installation information

Electrical

Standard electrical – 115V, 60Hz, 1 phase, 13.0 amps, max. fuse 20 amps

Alternate electrical – 220V, 60Hz, 1 phase, 6.5 amps and 230V, 50Hz, 1 phase, 6.5 amps.

Plug configuration – 6 ft (1.8m) cord and NEMA 5-20 hospital-grade plug provided with each dispenser. 220V/230V models, cord only. Wire unit in accordance with all local codes

Approximate Shipping Weight 199 lbs (90kg)

Note: Above model is also available in 115/60 electrical configuration.
