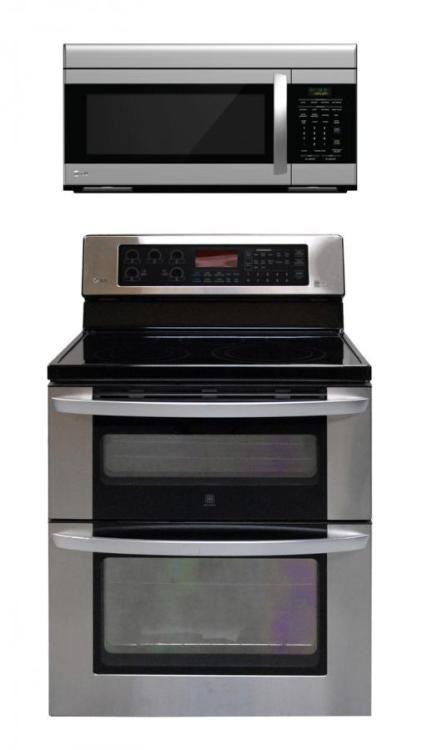

LG LDE3037ST, LMV1683ST OVEN RANGE & OVER THE RANGE MICROWAVE SET FACTORY REFURBISHED (ONLY FOR USA)

SUMMARY

    Range Type      Double Door

CAPACITY

    Upper Oven        2.32 cu. ft.

    Lower Oven          4.38 cu. ft.

    Total Capacity          6.7 cu. ft.

OVEN FEATURES

    EasyClean™ Technology           Yes

    Configuration                Freestanding Electric Double Oven

    Infrared Grill System         Yes

    True Convection             Yes

    Bake Element (Upper)          2100W / 6 Pass

    Broil Element (Upper)            3200W (1600W x 2) InfraGrill™

    Bake Element (Lower)          2500W / 8 Pass (Hidden Bake)

    Broil Element (Lower)          3800W / 6 Pass

    Oven Cooking Technology          Convection, InfraredGrill

    Oven Cooking Modes           Bake, Broil, Convection Bake (Lower), Convection Roast (Lower), Proof (Lower), Warm

    Oven Cleaning Features            Delay Bake, Delay Clean, Automatic Shut-Off

    Cleaning            Self Clean / EasyClean™

    Oven Light          Yes

    Oven Rack        2 Standard Racks, 1 Offset Rack (Standard)

COOKTOP

    Element Configuration - Left Front             9” / 6” 3200W / 1400W

    Element Configuration - Left Rear            6" / 1200W

    Element Configuration - Center (Warm)        7" / 100W

    Element Configuration - Right Front             12", 9" / 2700W, 1700W

    Element Configuration - Right Rear           6" / 1200W

    Cooktop Burner Type            Radiant

    Cooktop Finish            Grey Patterned on Black Ceramic Glass

CONTROL

    Control Location        Backsplash

    Control Type               IntuiTouch™ Keypad

    Control Display        VFD (Scrolling Display)

APPEARANCE

    Available Colors        Stainless Steel, Smooth Black, Smooth White

    Handle                    Matching Stainless

    Oven Door Feature           Large WideView™ Plus Window, Full SS Wrap

DIMENSIONS/CLEARANCES/WEIGHT

    Shipping Weight (lbs)        263

    Product Weight (lbs)          213

    Cabinet Width (in)             30"

    Overall Depth (in)            25 13/16"

    Overall Height (in)          47 7/16"

    Overall Width (in)              29 7/8"

    Height to Cooking Surface (in)           36"

    Oven Interior Dimensions (Upper) (in) (W x H x D)           24 1/2" x 8 11/16" x 18 15/16"

    Oven Interior Dimensions (Lower) (in) (W x H x D)              24 1/2" x 16 5/16" x 18 15/16"

POWER/RATINGS

    Amp Rating at 208V         40

    Amp Rating at 240V          40

    KW Rating at 208V            120/208 VAC

    KW Rating at 240V           120/240 VAC

CAPACITY

    Oven Capacity        1.6 cu. ft.

DIMENSIONS/WEIGHT

    Shipping Weight (lbs)        59.7 lbs

    Product Weight (lbs)            53 lbs

    Oven Interior Dimensions (in) (W x H x D)            21 9/16" x 9 1/4" x 14 1/8"

    Overall Depth (in)         15 11/16"

    Overall Height (in)           16 7/16"

    Overall Width (in)          29 15/16

    Carton Dimensions      33 1/2" x 20 3/16" x 19 3/8"

OVEN FEATURES

    Cavity Coating (Anti-bacteria & deodorizing)   White Coating

    Output (Watts-IEC705) Microwave       1000W

    Eco Button (Energy Savings)       Yes

COOKING FEATURES

    Power Levels         10

    Auto and Rapid Defrost      Auto Defrost

    Reheat       Auto Reheat

    Popcorn Key        Yes

    More/Less         Yes

    Melt/Soften         Yes

    Hold/Warm       Yes

    Add 30 Seconds       Yes

CONVENIENCE FEATURES

    Turntable Diameter      12.5"

    Clock / Timer        Yes

    Cooking Complete Reminder           Yes

LIGHTING

    Cooktop Lighting         Incandescent

    On / Off            Yes

SAFETY FEATURES

    Child Lock        Yes

VENTING SYSTEM

    Filtration         Carbon Coated Charcoal Filter

    Speed (Step)          2

    Vent Air Flow (CFM)       300

CONTROL

    Control Location         Right

    Control Type          IntuiTouch???? - Keypad

    Control Display       3 Digit Green LED

APPEARANCE

    Available Colors        Stainless Steel (ST), Smooth White (SW), Smooth Black (SB)

POWER/RATINGS

    Input Volt/Hertz           120/60

    Input Amps/Watts (Microwave)          14A / 1650W
