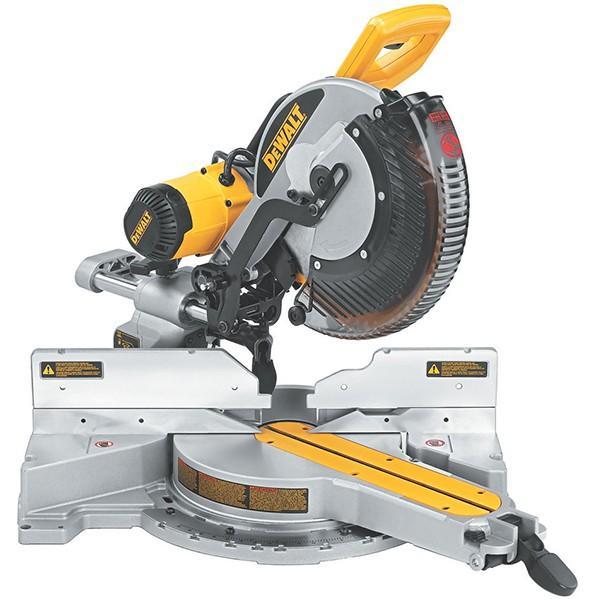

DEWALT DW718XPS-QS 220V 305MM COMPOUND MITER SAW

5

Cam action miter lock function makes miter setting faster and easier allowing the user to quickly adjust angles between 0� - 60� left and 0� - 50� right. The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications. The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles. Linear horizontal rails utilize bronze guides to provide maximum precision when cutting materials up to 345 mm wide.

Product Code: DE-DW718XPS-QS   Product ID: 23182
Product sold by: samstores.com

$ 1046.5

Availability: In Stock New

Shipping Information:
Shipping Charges: $150
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

Cam action miter lock function makes miter setting faster and easier allowing the user to quickly adjust angles between 0° - 60° left and 0° - 50° right. The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications. The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles. Linear horizontal rails utilize bronze guides to provide maximum precision when cutting materials up to 345 mm wide. New quick release bevel setting provides accurate and simple setting of bevel angles up to 48° left and right. Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the job site. Electronic speed control for adjusting cutting speed when cutting materials other than wood. XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity.

Specifications

Power Input: 1600 Watts

Power Output: 960 Watts

Blade Speed: 1900 - 3400 rpm

Blade Diameter: 305 mm, 12"

Blade Bore: 30 mm

Bevel Capacity: 48/48°

Miter Capacity [right/left]: 50/60°

Weight: 24.8 kg

Depth: 470 mm

Length: 770 mm

Height: 396 mm

Max. Depth of Cut [Saws]: 163 mm

Cutting Capacity at 90°/90° (W x H): 327 x 90 mm

Cutting Capacity at 90°/90° (W x H): 345 x 71 mm

Cutting Capacity at 45°/90° (W x H): 231 x 90 mm

Cutting Capacity at 45°/90° (W x H): 241 x 71 mm

Cutting Capacity at 90°/45° (W x H): 327 x 58 mm

Cutting Capacity at 90°/45° (W x H): 345 x 48 mm

Max. Cutting Capacity at 45°/45°: 242 x 52 mm

Includes

DeWalt DW718XPS-QS 220V 305mm Double Bevel Compound Sliding Miter Saw, 60 tooth blade, blade spanner and dust bag .

Additional Information

Grit        No

Chuck Type         No

Drive Type           30mm Arbor

Hammering Mode            No

Hp Range             No

Includes               No

Power Source     Corded

Size Range           No

Use For Material               No

Voltage220V

This appliance is not designed for use in America - only for countries that use 220V electrical outlets

Order Dewalt DW718XPS-QS 220V 305mm Compound Miter Saw if you are looking for a saw that offers outstanding performance.  Stuffed with many striking features, this saw is ideal for maximum precision when cutting materials up to 345mm wide. The large dual sliding fence gives maximum support in large materials cuts at an angle or combination of angles. It has electronic speed control for managing cutting speed when cutting materials other than wood.

What you get

  • An user-friendly saw with exciting features
  • Cam action miter lock function for faster miter setting
  •  Linear horizontal rails uses bronze guides to offer greatest precision when cutting materials up to 345 mm wide, and more features
