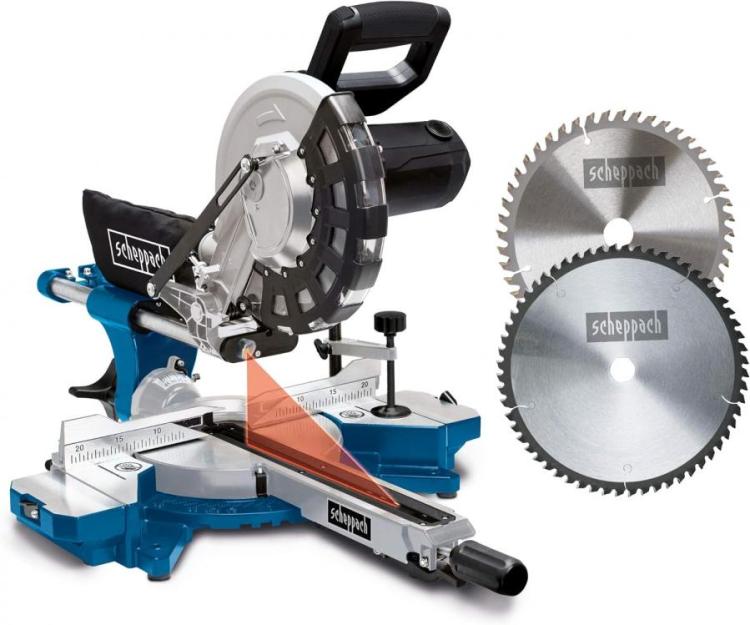

SCHEPPACH HM254 COMPOUND SLIDING MITER SAW 2000 W 220 VOLTS NOT FOR USA

fireScheppach

ColourBlack

Blade materialCarbides

Surface recommendationIndoor use

Power sourceCorded Electric

About this item

• The HM254 is suitable for hard and soft wood as well as for all common plastics. The two included carbide saw blades, one with 48 teeth and one with 60 teeth, have a diameter of 255 mm. The fully enclosed saw blade guard ensures maximum safety at work.
• The integrated laser accurately displays the cutting edge and thus allows precise cutting results, where you do not have to rely on your sense of proportion.
• With the help of the slide function, the compound miter saw effortlessly cuts workpieces up to 340 mm wide and 90 mm high and thanks to the sturdy dual slide rail, the saw blade can be precisely guided through the workpiece.
• Double-sided table extensions with screw clamp for fixing the workpiece, a longitudinal stop, a swivelling turntable with quick lock and the saw blade that can be inclined by 45° for miter cuts allow a variety of applications with the HM254.
• The sturdy and compact HM254 sliding-compound-miter saw features a lightweight die-cast aluminum frame making it ideal for mobile use and smaller workshops.

• Product description

  Set contents:

  Schppach HM254 2nd Recess Saw Saw blade.

  SCHEPPACH HM254

  The Scheppach HM254 cross-cut saw is ideal for demanding use in the hobby workshop. With the sturdy double column guide, it delivers a variety of and precise cut and miter cuts in hard and soft wood, as well as with all standard plastics.

  Features:

  Sturdy and lightweight die-cast aluminum frame for easy transportation. Powerful 2000 watt motor for versatile use. Compact dimensions even for the small workshop HW saw blade with 60 teeth for constant and precise cutting results. Built-in laser for precise display of the cutting edge. Large cutting width up to 340 mm. Fully closed saw blade protection for maximum work safety. Includes 48T and 60T saw blade.

  Technical data:

  Cutting width / height 45° / 90°: 340 x 45 mm. Cutting width / height 45° / 45°: 240 x 45 mm. Cutting width / height 90° / 45°: 240 x 90 mm. Cutting width / height 90° / 90°: 340 x 90 mmFrequency: 50 HzSaw blade diameter: 255 mmSaw blade speed: 4500 1/minTurntable diameter: 248 mmVoltage: 220-240 VMotor power: 2000 W. Net weight: 14.3 kg. Gross weight: 17.5 kg.

• Technical details

  Manufacturer‎Scheppach

  Part Number‎5901216901

  Product Dimensions‎60 x 58 x 77 cm; 14 kilograms

  Item model number‎SCH5901216901

  Colour‎Black

  Style‎Single

  Power Source‎Corded Electric

  Voltage‎230 volts (AC)

  Wattage‎2000 watts

  Horse power‎2000

  Item Package Quantity‎1

  Sound level‎98dB

  Blade Length‎255 millimeters

  speed‎7000 RPM

  Measurement system‎Metric

  Special features‎Sturdy and lightweight die-cast aluminum frame

  Included Components‎1 package

  Batteries included?‎No

  Batteries Required?‎No

  Item weight‎14 Kilograms
