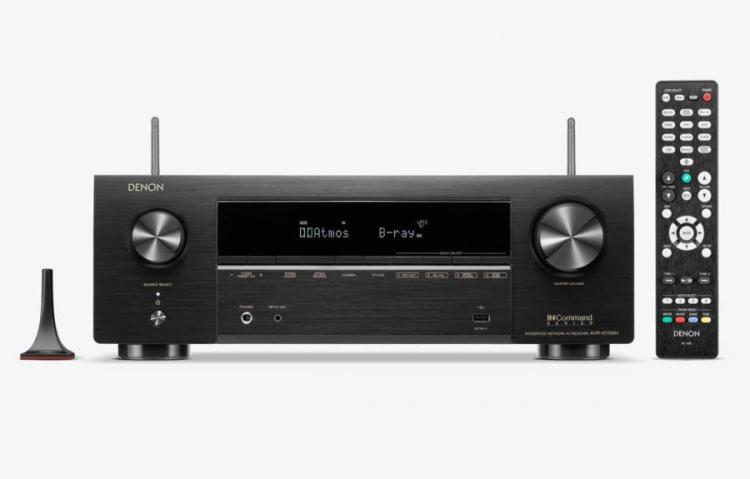

DENON AVR-X1700HBKE2 7.2-CHANNEL AMPLIFIER 220VOLTS NOT FOR USA

7.2 Channel AV Receiver

The AVR-X1700H 7.2 channel receiver supports total home theater surround sound including stereo subwoofers.

Dolby Atmos Surround Sound

Every Dolby Atmos receiver from Denon supports lifelike, immersive 3D audio and Height Virtualization Technology.

Wireless Streaming with Bluetooth and Wi-Fi

The AVR-X1700H functions as both a Wi-Fi and Bluetooth receiver. It supports HEOS multi-room audio, high quality music streaming and home theater surround all in one.

4K & 8K Ready for the Ultimate Home Theater

The AVR-X1700H 8K receiver delivers the ultimate home theater experience with 8K/60Hz pass-through, 4K/120Hz pass-through, and support for the latest HDMI specifications.

Sound Enhancements

Discrete Power Amplifier7

AudysseyMultEQ XT

Audyssey Dynamic EQ / Dynamic VolumeYes / Yes

Audyssey APP SupportYes

Speaker Setup Presets2

Compressed Audio RestorerYes

Network

HEOS Multiroom and StreamingYes

Lossy Formats: MP3 / WMA / AACYes / Yes / Yes

Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes

DSD Audio Streamingup to DSD5.6

FLAC HD 192/24Yes

WAV 192/24Yes

ALAC 192/24Yes

Gapless playbackYes (FLAC, WAV, ALAC, DSD)

AirPlay 2Yes

Roon TestedYes

Internet RadioTuneIn

Spotify Connect* / Tidal* / Deezer* / others *Yes / Yes / Yes / Yes

Amazon Prime Music* / Pandora*Yes / Yes

Compatible with Remote APP for Smart PhonesAndroid / iOS

Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle

Ethernet PortsYes

Wi-FiYes

BluetoothYes

Bluetooth Headphone transmissionYes

HDMI

HDMI Inputs: Back / Front6 (3x 8K) / 0

HDCP2.3 supportYes

HDMI Outputs: Main / Zone1 / No

HDMI max Resolution (8k / 4k)8k/60 - 4k/120

HDMI to HDMI Scalingup to 8K 60/50

HDMI: 8K / 4K / CEC / eARCYes / Yes / Yes / Yes

HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLGYes / Yes / Yes / Yes

HDMI: ALLM / QMS / QFT / VRRYes / Yes / Yes / Yes

HDMI pass-though in standby modeYes

Multi-room CI

HEOS Multiroom integratedYes

TV Sound groupingYes

Multiroom zones2

Main room multichanel audio - Zone stereo downmixYes

Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes

Zone Audio Output: Speaker / PreoutYes / Yes

Webbrowser SetupYes

IP Control / RS232 Control / Web Control / App ControlYes / No / Yes / Yes

Remote In / Out1 / No

Others

Voice Control - Works with Amazon AlexaYes

Voice Control - Google Assist / Apple SiriYes / Yes

Auto Speaker Setup by MicrophoneAudyssey MultEQ XT

FL Display1 line

Graphic User Interface - GUIHybrid GUI

GUI Languages3

Setup AssistantYes

Quick Select Plus / Quick SelectYes / No

Firmware Update by: Network / USBYes / Yes

Variable Cross OverYes

Optimized Bass RedirectionYes

ECO ModeYes

Auto Power OffYes

Sleep TimerYes

Inputs Outputs

Composite In / Out2 / 1

Component In / OutNo / No

HDMI In / Out6 / 1

Multi-room Video Out: Video / HDMINo / No

Analogue In/out2 / No

Phono (MM) InYes

Digital In: Optical / Coaxial2 / 1

Multi-room Out: Analog / DigitalYes / No

Multichannel PreoutYes (0.2)

Subwoofer Out2

Speaker Terminal: Gold Plated Screw / Regular ScrewNo / Yes

Number of Speaker Terminals7

Speaker A / Bassignable

Bi-amp Driveassignable

Multi-Room Speaker Terminalassignable

Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes

USB Audio / Made for iPod / Made for iPhoneYes / AirPlay / AirPlay

Tuner: FM / AMYes / Yes

Specifications

Number of Power Amps7

Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)80 W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)120 W

Power Output (6 ohm, 1 kHz, 10% 1ch Drive)175 W

General

Available colors: Black / Premium SilverYes / No

System Remote ControlRC-1244

Pre-programmed / Learnable / LCD DisplayNo / No / No

Power Consumption in W430

Power Consumption No-Sound (ECO On / Off) in W29 W / 39 W

Dimensions (W x D x H)434 x 339 x 151 mm

Standby Consumption in W0.1

CEC Standby Consumption in W0.5

Network Control On Consumption in W2.0

Maximum Dimensions w/ Antenna (W x D x H)434 x 339 x 151 mm

Weight in kg8.6

Carton Maximum Dimensions (W x D x H) in mm523 x 435 x 232

Carton Weight (inc. product) in kg10.6

Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5)

Weight in LBS18.96

Carton Maximum Dimensions (W x H x D) in Inches20.6 x 17.1 x 9.1

Carton Weight (inc. product) in LBS23.37
