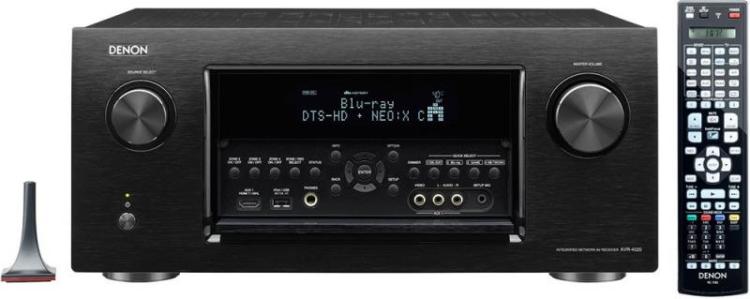

DENON AVR-4520 AV RECEIVER 220 VOLT

Denon AVR-4520/Denon avr-4520ci 220-240 volts AV Receiver Specifications

Power amplifier section

Front L/R

• 150 W + 150 W (8 ohms, 20 Hz - 20 kHz, THD 0.05 %)
• 190 W + 190 W (6 ohms, 1 kHz, THD 0.7%)

Center

• 150 W (8 ohms, 20 Hz - 20 kHz, THD 0.05 %)
• 190 W (6 ohms, 1 kHz, THD 0.7%)

Surround L/R

• 150 W + 150 W (8 ohms, 20 Hz - 20 kHz, THD 0.05 %)
• 190 W + 190 W (6 ohms, 1 kHz, THD 0.7%)

Surround back / Front height / Front wide

• 150 W + 150 W (8 ohms, 20 Hz - 20 kHz, THD 0.05 %)
• 190 W + 190 W (6 ohms, 1 kHz, THD 0.7%)

Speaker compatibility

• 4 - 16 ohms

Preamplifier section

• Input sensitivity/impedance: 200 mV / 47 kohms
• Frequency response: 10 Hz - 100 kHz - +1, –3 dB (DIRECT mode)
• S/N Ratio: 102 dB (IHF-A weighted, DIRECT mode)
• Distortion: 0.005% (20 Hz - 20 kHz) (DIRECT mode)
• FM section: Tuning frequency range / 87.5 - 108 MHz

Ports IN

• HDMI (Front: 1) x 7
• Component (Video) x 3
• Composite (Video) (Front: 1) x 4
• nalog Audio (Front: 1) x 7 (Phono: 1)
• Digital Audio (Optical) x 2
• Digital Audio (Coaxial) x 2
• External Analog Audio (7.1 ch) x 1 set

Ports OUT

• HDMI Monitor: 3 (Zone4:1)
• Component(Video):Monitor x 2 (Zone2:1)
• Composite(Video):Monitor x 3 (Zone2:1)
• Audio Lineout:(Media player) x 1
• Audio Preout:(Zone2, 3) x 2
• Audio Preout:(SW) x 2v
• Audio Preout:(11 ch) x 1 set
• Phones: 1

Other

General

• Denon Link HD x 1
• iPod / USB (Front/Rear) x 2 (selectable)
• Network (Ethernet) x 4
• Setup Mic jack x 1
• FM Tuner Antenna x 1
• Remote Control (In/Out) x 1/1
• Trigger out (DC12 V 150 mA MAX) x 2
• RC-232C x 1
  • Power supply / AC 230 V, 50/60 Hz
  • Power consumption / 780 W
  • Power consumption in standby mode / 0.1 W
  • Power consumption in CEC standby mode / 0.5 W
  • Power consumption in network standby mode / 5.1 W
  • Dimensions (W x H x D) / 434 x 194.5 x 422.7 mm
  • Weight / 16.5 kg
