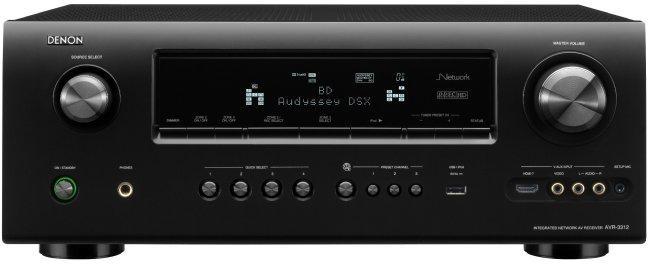

DENON AVR-3312CI 220-240 VOLTS RECEIVER

Features:

Superb Surround Sound with Dual Subwoofer Outputs

Fully compatible with current HD audio formats, the Denon AVR-3312CI 7.2-Channel A/V Receiver provides powerful, theater-quality surround sound. The vibration-resistant construction thoroughly suppresses the adverse influences of vibration on sound quality, ensuring maximum audio performance with multiple technologies

Equal Power Amp Design

Each of the AVR-3312CI's seven 125-watt channels is powered by its own discrete circuit. This allows the receiver to reproduce original sound more faithfully than conventional models, which use integrated circuits

Dual Subwoofer Outputs

An additional subwoofer output proves especially useful in large room settings where one subwoofer may not provide adequate low-frequency output

High-Definition Audio Support

In addition to Denon's proprietary Dynamic Discrete Surround Circuit-HD and AL24 Plus processing technology, the AVR-3312CI features support for Blu-ray high-definition audio formats, including Dolby TrueHD and DTS-HD Master Audio. These formats play back sound with exceptional fidelity, providing a more realistic listening experience

Dolby Pro Logic IIz and Audyssey DSX

With the option of two additional height channels, these features add a vertical dimension to the soundstage, providing more immersive surround sound. Audyssey DSX adds the option of width channels to dramatically open the soundstage for a more theater-like sound

Audyssey MultEQ XT Support

Audyssey technology helps create an optimal acoustic profile for your home theater by resolving finer details in the response, particular in the low-frequency range. Using the included calibration microphone, Audyssey MultEQ XT measures sound levels and adjusts speaker configuration accordingly, making setup fast and easy

Multi-Zone/Multi-Source Playback

The AVR-3312CI lets you enjoy a program source in the Main Zone (the room where the AVR-3312CI is located) and in two other rooms. The source can be the same for all zones, or you can enjoy three different sources in those zones if you prefer. Use the Denon Remote App to control all the zones from anywhere in the home

Full HD Support

With seven HDMI inputs, the AVR-3312CI allows you to route multiple high-definition devices--like game consoles and Blu-ray players--to your TV. It also allows you to connect all of your devices to your TV with a single HDMI cable, reducing cable clutter

Vivid 3D Visuals with HDMI v1.4a

The AVR-3312CI comes equipped with HDMI v1.4a, allowing you to make the most of several premium video features

3D Pass-Through

With the advent of 3D media, it is important to own a receiver that recognizes 3D video signals. The AVR-3312CI is able to pass through 3D signals from your Blu-ray player, ensuring that the 3D effect doesn't get lost in translation. It also recognizes signals from 3D television broadcasts

Audio Return Channel

HDMI v1.4a also features Audio Return Channel functionality, which allows for audio content from your display to be played back through the AVR-3312CI via the single HDMI cable that goes from the receiver to the display. This eliminates the need for separate audio and video cables running from your TV to the receiver

Auto Lipsync Setting

The convenience of Auto Lipsync allows you to eliminate annoying sync issues caused by digital transmissions. This feature automatically compensates for timing shifts in video and audio outputs to bring picture and sound in sync

Deep Color and x.v.Color Support

The AVR-3312CI also supports Deep Color and x.v.Color schemes, which can display a larger color range than standard-definition schemes. The result is a more lifelike, vibrant picture

Enhanced Network Capability and iPod Connectivity

When connected to a network, the AVR-3312CI lets you listen to Internet radio, play audio files, and display images via an Ethernet connection. The receiver also supports AirPlay, which allows you to stream music wirelessly from an iPhone, iPad, iPod touch, or iTunes. Or, connect an iPhone/iPod/iPad directly to the receiver with a USB cable. With the Denon Remote App installed on your iPad, iPhone, or iPod touch, you can perform basic operations, like turning the AVR-3312CI's power on or off, adjusting the volume, and switching sources

FLAC HD Decoding

For serious audio enthusiasts, FLAC HD decoding support provides for the ultimate playback of your high-definition music files. A compressed audio restorer guarantees that playback of any compressed audio files, such as MP3, WMA, and AAC, is crisp and clear

Supports Pandora, Flickr, Rhapsody, and More

The AVR-3312CI is DLNA v1.5 Certified and compatible with Windows 7 for audio and photo streaming, as well as giving you convenient web control. This receiver provides online support for Pandora, Flickr, Napster, and Rhapsody, allowing you to enjoy a wide variety of online digital content at any time

GUI Overlay and Remote Control for Simple Operation

With its programmable functions and intuitive button layout, the AVR-3312CI is designed for ease of use. The front panel is smartly organized and features a two-line fluorescent display, clearly labeled buttons, and onboard controls for volume and source. In addition, its on-screen display with overlay on HD and 3D sources provides quick information about your system's settings. The AVR-3312CI's pre-memory remote control with Glo-Key and on-screen programming is easy to setup and use, thus giving you more flexibility in controlling your home theater

Specifications:

General

Equal Power Amplifiers: Y/7 ch

Power Output; Watts Per Channel: 125

All Channels Rated @ 0.05 THD

dlna 1.5 Certified

Windows 7 Certified

Apple AirPlay Certified

RadioDenon.com - access to over 12,000 Internet Radio Stations

Made for iPod/Works with iPhone Certified

Flickr Photo Streamming

Pandora Radio Streaming

Rhapsody and Napster Streaming

Microprocessor User Re-set

Detachable Power Cord

Pre-programmed Remote Control

Low Power Consumption in Standby Mode (0.1w)

Interactive Owners Manual on CD-R

Connectivity

Digital Inputs: Coaxial: 2

Digital Inputs: Optical: 2

True 24-bit/96-kHz Digital Input Capability

Digital to Analog REC Out

Analog Audio Inputs, Incl. Tuner: 8

HD Radio Tuner

Phono Input

Analog Record Outputs: 1

HDMI Video Inputs v1.4a Supports 3D and Audio Return Channel: 7/including 1 front

HDMI Video Outputs: 2

HDMI Audio/Video Repeater Function

HDMI Video Switching Function

HDMI Deep Color Support-36Bit

HDMI 1.4a Inputs with Full 3D Pass Through: 7/including 1 front

HDMI xvYCC Color Space Support

Composite Video Inputs: 5 Incl. Front

Composite Video Outputs: 2

S-Video Inputs: 1 x Dock

Component Video Inputs x Bandwidth - Assignable: 2 x 60 MHz

Component Video Outputs: 1

Front Panel A/V Inputs w/Cover Composite

RJ-45 Etherent Port - IP Control and Network Audio/Photo Streaming

RS-232 Port Third Party Remote Controllers

PC Setup and Control Capability

IR Serial Remote In/Out terminals

+12v Trigger Output - Assignable: 2 x 150 mA

Sirius Satellite Radio with optional antenna

Pre-amp Outputs for Multi-Zone

High Pass Filter for Multi-Zone Outputs

Discrete Multi-Zone Composite Video Output

Main Zone Pre-Amp Outputs: 7.2

iPod Dock Control Port (Using optional ASD-11R DOCK)

USB Audio Port: iPod Direct/Flash/HDD

Convenience

iPhone App Control

Auto Setup Calibration

Input Delete Function

Auto/Manual Room Equalization

Audyssey MultEQ Room Equalization: Yes/MultEQ XT

Audyssey Pro Calibration Ready

Audyssey Dynamic Volume

Audyssey Dynamic EQ

Auto Setup Microphone Included/Type

Variable High/Low Pass Crossover Points (12/24dB) - 40/60/80/100/ 120/150/200/250

Source Function Renaming

Video Conversion Composite to S-Video to Component

Video Conversion Analog to HDMI

Video Scaling: Yes - 1080p/24

Icon-Based Graphical User Interface with video overlay on 1080p HDMI output: Yes/3D

Personal Memory Plus

Party Mode Plus

Audio Signal Delay (Sync. Audio with Video signal) By source

Auto Surround Mode (Analog or Digital Input Type)

56 Station Auto-Preset Memory Tuning

Direct Function (Tone Bypass)

Volume Control Un-muting

Video Select Control

Multi-Source/Multi-Zone: 3S/3Z

Discrete Remote Power On/Off, Source Selection and Volume for Main and Second/Third Zones: Yes

Assignable Amplifier Configuration of Surround Back Channels

Speaker Time-Delay and Level Controls: L/R, Sub, C, Surr. L/R, Surround Back

Relay-Controlled Protection Circuits

Pre Labled Assignable Digital Inputs

Digital to Analog Conversion Multi Zone Outputs

Component

Dynamic Discrete Surround Circuit D.D.S.C - HD

Dolby Digital, dts and DSP Modes Analog Devices, HammerHead SHARC

Processor(s) Bit Depth and Type: ADSP21487 x 1 32-bit Floating Point

AL24 Processing: FL/FR ONLY

24-bit/192-kHz DACs: AKM Semiconductor 24-bit/192-kHz AK4358VQ x 2 per channel differential

Analog-to-Digital Conversion - Bit Depth/Sampling Rate: 24-bit/192-kHz AK5358B

Analog DevicesFull 12-bit Input/Output Video Processing/Scaling: ADV-8002-4

Analog Devices Noise Shaped Video (NSV)

Independent Power Supplies

Banana Plug Speaker Terminals, All Channels

Sound Modes

Dolby Pro Logic IIz - with Cinema, Music, Game Modes

Dolby TrueHD and Dolby Digital+ Decoding

Dolby Digital Surround EX Decoding

dts-HD Master Audio and High Resolution Decoding

dts ES Discrete 6.1 Decoding

dts ES Matrix 6.1 Decoding

dts Neo:6 Stereo-to-Surround Cinema and Music Mode

dts 96/24 5.1 for DVD-Video Processing

Audyssey Dynamic Surround Expansion (DSX) Processing

Pure Direct/Direct/Stereo Modes on Digital/Analog inputs

Stereo/Direct Modes w/Pure Analog Path

Multi-Channel Stereo Mode

Video Game Mode

Mono Movie Surround Mode

Rock Arena Surround Mode

Matrix Surround Mode

Jazz Club Surround Mode

Virtual Surround Mode For 2 Speakers/Headphones

Approximate Dimensions:

Height: 6.7"

Width: 17.1"

Depth: 15"

Approximate Dimensions:

Unit: 26.8 lbs

Shipping: 30 lbs

NOTE: This product will NOT work in US or Canada; it can be used ONLY in overseas countries with 220~240 volts electric outlets.
