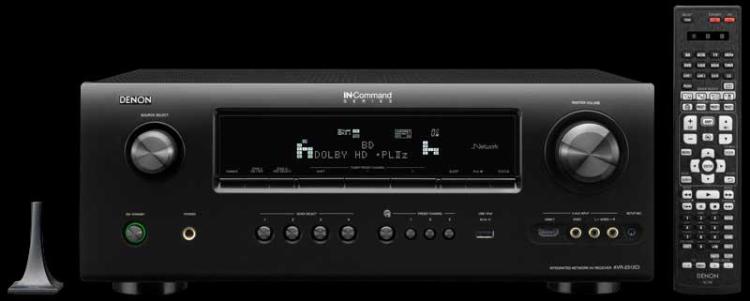

DENON AVR-2312CI 7.1 CHANNEL A/V RECEIVER 220-240 VOLTS

Your IN-Command Series™ Integrated Network A/V Receiver is the heart and brain of your networked home entertainment center allowing you to effortlessly access and enjoy all your favorite digital media content and components throughout your home with the incomparable, high-definition sound quality enthusiasts around the world have come to expect from Denon. All Denon components are known for their heritage of technical innovation, engineering excellence, reliability and ease of use. The Denon IN-Command Series™ A/V Receiver sets a new standard for home entertainment integration. And puts you totally in command.

Network Features

    AirPlay® built in

    Enhance network capability(*1)

        Internet Radio and network audio/photo streaming via network

        Pandora, flickr, Napster and Rhapsody online support

        ‘Party Mode Plus’ and Zone Management Control

        MP3, WMA, AAC and FLAC HD audio formats supported

        Windows® 7 'Play To' and DLNA v1.5 Certified (Music and Photos)

        Web Browser for PC setup and control

    Denon Remote App* simplifies operation via an iDevice (iPhone, iPad, iPod touch)

State-of-the-art Denon Solutions for Maximizing Content Quality

    Fully discrete, identical quality and power for all 7 channels (105 W x 7 ch)

    Stable power supply for high-quality sound and picture playback

    Featuring 3D pass-through technology

    High definition audio support, Dolby TrueHD and

DTS-HD Master Audio

    Supports Dolby Pro Logic IIz processing

    Dual subwoofer outputs

    Picture Adjust

    I/P Converter and Scaler up to 1080p

    Audyssey MultEQ® XT and Auto Setup

        Tower type microphone for more accurate measuring

        Up to eight measurement points

        High level resolution filters for satellite speakers and also subwoofer

Connectivity & Expandability

    7-HDMI inputs and 1-output

    Supports HDMI (V.1.4a with 3D, Audio Return Channel) Deep Color, “x.v.Color”,Auto Lipsync and HDMI control function

    Direct digital play for iPod®, iPhone® and iPad® via USB

    Power Amp Assign function, for versatility in using the AVR-2312CI for different purposes (Surround Back, Front Height, Zone 2, Bi-Amp, Front Speaker B)

Ease-of-Use

    Internet Radio Preset buttons, for quick access to your favorite Internet Radio stations

    Four Quick Select buttons, single button access to frequently-used video or music sources

    Setup Wizard, providing easy-to-follow setup instructions

    Easy operation, Graphical User Interface with overlay on HD and 3D sources

    Audyssey Dynamic Volume® for real-time volume adjustment

    Audyssey Dynamic EQ® for real time audio dynamics no matter what the listening volume

    Remote Control Setup Wizard

Eco-Friendly Features

    Lower power consumption at stand-by 0.1 W (Standby)

    Owners Manual on Interactive CD-R

3D pass-through technology

Connecting a 3D-compliant Blu-ray disc player and 3D-compliant TV to the AVR-2312CI creates a 3D home heater where you can enjoy high-definition sound and video like never before.

Minimum Signal Path for clear audio and video signal

Denon’s “simple and straight” design concept has been thoroughly implemented in the signal paths to provide incredibly clean audio and video playback. Signal paths are as short as possible to keep signal degradation in the audio and video circuitry to an absolute minimum.

Direct Mechanical Ground Construction for thorough vibration resistance

Vibration-resistant construction thoroughly suppresses the adverse influences of vibration on sound quality. Power transformers have been securely mounted on the receiver’s highly rigid bottom chassis to minimize vibration. By direct mounting feet to the radiator in close proximity to each other, we are able to suppress the mutual vibration from the power transformers and other sources.

Compressed Audio Restorer for enhancing digital music files

Denon’s audio technology for MP3, WMA and AAC compressed formats restores the higher frequency range that is lost during the compression process. This technology delivers superior performance with more emotional range and nuances from any connected source that uses compression.

Picture Adjust

You can adjust the picture quality for each video source. (Contrast, Brightness, Chroma level, Hue, Reduce overall picture noise, Emphasize picture contours)

2 source / 2 zone output

The AVR-2312CI lets you enjoy a program source in the Main Zone (the room where the AVR-2312CI is located) and in Zone 2 (another room). The source can be the same for both zones, or you can enjoy 2 different sources in those zones if you prefer. The Denon Remote App controls all the zones from anywhere in the home making multi-room audio so much easier to enjoy.

Custom Features

    2-line fluorescent display on front panel

    Universal remote control handset with

    Auto surround mode

    Sleep timer function

    Audio Delay function (0 to 200 msec)

    Muting level settings (Full/-40dB/-20dB)

    Audio level memory, capable of correcting different signal levels for each input device

    Variable subwoofer crossover switching

    Trigger output (150 mA)

    Audyssey Installer Ready

Power amplifier section

    Rated output *THD figures are power amp stage values.

    Front L/R 105 W + 105 W (8 ohms, 20 Hz - 20 kHz, THD 0.08 %) 135 W + 135 W (6 ohms, 1 kHz, THD 0.7%)

    Center 105 W (8 ohms, 20 Hz - 20 kHz, THD 0.08 %) 135 W (6 ohms, 1 kHz, THD 0.7%)

    Surround L/R 105 W + 105 W (8 ohms, 20 Hz - 20 kHz, THD 0.08 %) 135 W + 135 W (6 ohms, 1 kHz, THD 0.7%)

    Surround Back L/R 105 W + 105 W (8 ohms, 20 Hz - 20 kHz, THD 0.08 %) 135 W + 135 W (6 ohms, 1 kHz, THD 0.7%)

Preamplifier section

    Input sensitivity/impedance 200 mV / 47 kohms

    Frequency response 10 Hz ~ 100 kHz — +1, –3 dB (DIRECT mode)

    S/N Ratio 100 dB (IHF-A weighted, DIRECT mode)

FM section

    Tuning frequency range 87.5 - 107.9 MHz

AM section

    Tuning frequency range 520 - 1710 kHz

General

    Power supply AC 220 V, 50 Hz

    Power consumption 600 W (Standby 0.1 W, CEC standby 1.9 W)

    Dimensions (W x H x D) 17-1/8” x 6 37/64” x 15-3/64”

    Weight 24 lbs 4oz, 11.0 kg

Weight

    24 lbs 4oz, 11.0 kg

Ports

In

    HDMI (included front 1) x 7

    Component x 2

    S-Video x 2

    Composite (video) (included front 1) x 4

    Analog Audio (included front 1) x 7

    Digital Optical x 2

    Digital Coaxial x 2

Out

    HDMI Monitor x 1

    Component x 1

    Composite Monitor x 2

    Audio Preout (SW) x 2

    Audio Preout (L/R) x 1

    Audio Recout (L/R) x 1

    Phones x 1

Other

    Ethernet x 1

    USB port x 1

    Microphone Port x 1

    Dock Control Port x 1

    FM Tuner Antenna x 1

    AM Tuner Antenna x 1

    Remote Control In/Out In 1 / Out 1

    RC232C x 1

    DC12 V 150 mA MAX. trigger out x 1

This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
