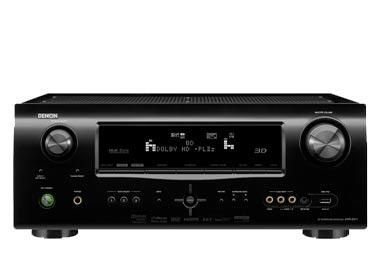

DENON AVR-2311 HOME THEATER RECEIVER FOR 220 VOLTS

Equipped With The Latest Surround Sound Decoders

The AVR-2311CI features high resolution audio decoders, including Dolby TrueHD and DTS-HD Master Audio. It also comes equipped with Dolby s Pro Logic IIz decoder, which provides superb surround sound from conventional stereo audio sources such as CD. The Pro Logic IIz decoder also features the ability to produce two additional front height effect channels, which provides a dramatically expanded front soundstage.

HD Radio

In addition to conventional AM and FM tuning, the AVR-2311CI also features HD Radio. With HD Radio AM sounds like FM, and FM HD radio sounds like CD.

HDMI 1.4a Includes 3D Blu-ray Compatibility

Featuring 6 HDMI inputs, the AVR-2311CI is also equipped with Denon s high resolution video processor, which accepts standard definition video sources and upconverts them to HDMI. The latest HDMI 1.4a standard is supported, which provides 3D pass-through (Broadcast and Blu-ray), and also supports Audio Return Channel. The HDMI upconversion allows for a single HDMI cable run to the TV, avoiding the expense and hassle of multiple cable runs.

Easy Setup With Automatic Room Acoustic Correction

Audyssey MultEQ dynamic room acoustic correction system features a microphone (included) to automatically measure the speaker configuration and provide acoustic tailoring for the best surround sound experience, and provides quick and easy setup. Dynamic Volume minimizes jarring volume jumps during commercial breaks, and Dynamic EQ provides a natural tonal balance even at very low volume levels.

Quality Discrete Power Amplifier Section

The equal power amp design features 7 discrete power amp circuits, and each channel is rated at 105 watts (8 ohms, 20 Hz to 20 kHz, .08% THD). For configuration flexibility, Denon s Power Amp Assign function lets you use 2 of the amp channels for surround back speakers, or front height effects speakers, or they can be assigned for stereo second zone multi-room use.

Specifications

Power Output; Watts per Channel                    105

All Channels Rated @ 0.08 THD                     Yes

Weight: In Pounds                                            23.8

Width (inches)                                                  17.1

Height (inches)                                                  6.7

Depth (inches)                                                  15

SOUND MODES

Processor(s) Bit Depth and Type                   21367 x 1 32-bit Floating Point

Dolby Digital Surround EX Decoding                Yes

Dolby Digital Pro Logic II                                 PLIIz

dts ES Discrete 6.1 Decoding                           Yes

dts ES Matrix 6.1 Decoding                              Yes

dts Neo:6 Stereo-to-Surround Cinema

and Music Modes                                             Yes

dts 96/24 5.1 for DVD-Video Processing          Yes

Mono Movie Surround Mode                            Yes

Rock Arena Surround Mode                             Yes

Matrix Surround Mode                                      Yes

Jazz Club Surround Mode                                 Yes

Virtual Surround Mode For 2

Speakers/Headphones                                      Yes

Multi-Channel Stereo Mode                              5/6/7

DSP Effect Modes                                            7

Auto Surround Mode (Analog or Digital

Input Type)                                                      Yes

Active Center Channel In All

Surround Modes                                              Yes

CONNECTIVITY

True 24-bit/192-kHz Digital Input

Capability (Denon Link & 1394)                       Yes

Assignable Digital Inputs                                   4

Digital Inputs: Coaxial                                       2

Digital Inputs: Optical                                        2

Digital Outputs: Optical                                     1

Analog Audio Inputs, Incl. Tuner                       8

Source Function Renaming                                Yes

Analog Record Outputs                                    1

Front Panel A/V Inputs w/Cover                       Yes

Video Conversion Composite to

S-Video to Component                                    Yes
