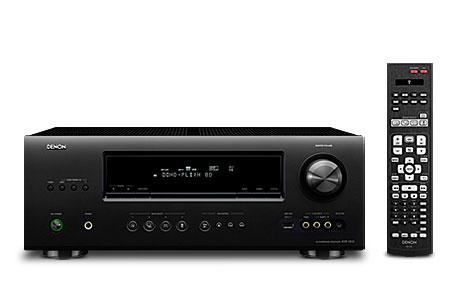

DENON AVR-1612 AUDIO VIDEO RECEIVER FOR 220-240 VOLTS

General

Finish Black

Equal Power Amplifiers Y/5 ch

Power Output; Watts Per Channel 75

All Channels Rated @ 0.05 THD -

All Channels Rated @ 0.08 THD Yes

THX Ultra2-Certified -

Low Impedance Drive Capability Yes

High-Current/Discrete Amplifiers Yes

dlna 1.5 Certified -

Windows 7 Certified -

Apple AirPlay Certified -

Made for iPod/Works with iPhone Certified -

RadioDenon.com - access to over 12,000 Internet Radio Stations -

Flickr Photo Streamming -

Pandora Radio Streaming -

Rhapsody and Napster Streaming -

Microprocessor User Re-set Yes

Detachable Power Cord -

Pre-programmed Remote Control Yes

Low Power Consumption in Standby Mode (0.1w) Yes

Interactive Owners Manual on CD-R Yes

Weight: In Pounds 20.2

Width (inches) 17.1

Height (inches) 6.4

Depth (inches) 15

CONNECTIVITY

Digital Inputs: Coaxial 1

Digital Inputs: Optical 1

Digital Input DENON Link 4 -

True 24-bit/96-kHz Digital Input Capability Yes

True 24-bit/192-kHz Digital Input Capability (Denon Link) -

Assignable Digital Inputs Yes

Digital Outputs: Optical -

Digital to Analog REC Out -

Analog Audio Inputs, Incl. Tuner 5

HD Radio Tuner -

Phono Input -

Analog Record Outputs -

HDMI Video Inputs v1.4a Supports 3D and Audio Return Channel 4

HDMI Video Outputs 1

HDMI Audio/Video Repeater Function Yes

HDMI Video Switching Function Yes

HDMI Deep Color Support-36Bit Yes

HDMI xvYCC Color Space Support Yes

HDMI SACD Support -

Composite Video Inputs 3 Incl. Front

Composite Video Outputs 1

S-Video Inputs 1 x Dock

S-Video Outputs -

Component Video Inputs x Bandwidth - *Assignable -

Component Video Outputs -

Front Panel A/V Inputs w/Cover * Composite Yes

RJ-45 Etherent Port - IP Control and Network Audio/Photo Streaming -

RS-232 Port Third Party Remote Controllers -

PC Setup and Control Capability -

IR Serial Remote In/Out terminals -

+12v Trigger Output - Assignable -

Sirius Satellite Radio with optional antenna -

Pre-amp Outputs for Multi-Zone -

High Pass Filter for Multi-Zone Outputs -

Multi-Zone Pre-Amp Outputs Selectable Output Levels -

Discrete Multi-Zone Composite Video Output -

Main Zone Pre-Amp Outputs Sub

iPod Dock Control Port (Using optional ASD-11R DOCK) Yes

USB Audio Port iPod Direct/Flash/HDD

Front Panel Stereo Mini-jack for Portable Music Players -

XLR Analog Input -

XLR Analog Output -

6-Ch. External Analog Input -

8-Ch. External Analog Input -

CONVENIENCE FEATURES

iPhone App Control -

Auto Setup Calibration Yes

Input Delete Function Yes

Auto/Manual Room Equalization Yes

Audyssey MultEQ Room Equalization YES/MultEQ

Audyssey Pro Calibration Ready -

Audyssey Dynamic Volume Yes

Audyssey Dynamic EQ Yes

Auto Setup Microphone Included/Type Y

Variable High/Low Pass Crossover Points (12/24dB) - 40/60/80/100/ 120/150/200/250 Yes

Source Function Renaming -

Video Conversion Composite to S-Video to Component -

Video Conversion Analog to HDMI -

Video Scaling -

Dual Surround Mode Spkr. Selector -

Icon-Based Graphical User Interface with video overlay on 1080p HDMI output Yes

On Screen first time Setup Wizard Yes

Personal Memory Plus Yes

Party Mode Plus -

Audio Signal Delay (Sync. Audio with Video signal) By source Yes

Auto Surround Mode (Analog or Digital Input Type) Yes

56 Station Auto-Preset Memory Tuning Yes

Radio Data System (RDS) -

Direct Function (Tone Bypass) Yes

Volume Control Un-muting Yes

Video Select Control -

Multi-Source/Multi-Zone -

Discrete Remote Power On/Off, Source Selection and Volume for Main and Second/Third* Zones Main Only

Assignable Amplifier Configuration of Surround Back Channels -

Speaker Time-Delay and Level Controls: L/R, Sub, C, Surr. L/R, Surround Back Yes

Relay-Controlled Protection Circuits Yes

Pre Labled Assignable Digital Inputs Yes

Digital to Analog Conversion Multi Zone Outputs -

COMPONENT TECHNOLOGY

Dynamic Discrete Surround Circuit D.D.S.C - HD -

Dolby Digital, dts and DSP Modes Analog Devices, HammerHead SHARC Yes

Processor(s) Bit Depth and Type ADSP21487 x 1 32-bit Floating Point

AL24 Processing -

24-bit/192-kHz DACs AKM Semiconductor 24-bit/192-kHz AK4358VQ x 2 per channel differential

Analog-to-Digital Conversion - Bit Depth/Sampling Rate 24-bit/192-kHz AK5358B

Analog DevicesFull 12-bit Input/Output Video Processing/Scaling -

Analog Devices Noise Shaped Video (NSV) -

Independent Power Supplies Yes

Pure Audio Construction -

Toroidal Power Transformer -

Banana Plug Speaker Terminals, All Channels Yes

NOTE: This product will NOT work in US or Canada; it can be used ONLY in overseas countries with 220~240 volts electric outlets.
