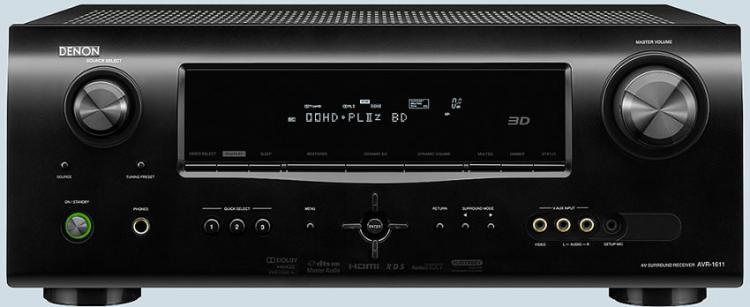

DENON AVR-1611 HOME THEATER RECEIVER FOR 220 VOLTS

Full Suite Of Surround Sound Decoders

The AVR-1611 features the latest high resolution audio decoders, including Dolby TrueHD and DTS-HD Master Audio, formats found on Blu-ray discs, and is also equipped with Dolby Pro Logic IIz, which provides the option of front height effects channels, for a dramatically expanded front soundstage. There s also Denon s exclusive Compressed Audio Restorer, which provides superb fidelity with your favorite portable music device.

HDMI 1.4a Includes 3D Blu-ray Compatibility

Equipped with 4 HDMI inputs, the AVR-1611 includes the latest HDMI 1.4a specification, which provides 3D pass-through (Broadcast and Blu-ray) capability, as well as providing Audio Return Channel. Standard definition video sources such as VCR and DVD are upconverted to HDMI, which allows for a single HDMI cable run to the TV, avoiding the expense and hassle of multiple cable runs.

Easy Setup With Automatic Room Acoustic Correction

Audyssey MultEQ dynamic room acoustic correction system features a microphone (included) to automatically measure the speaker configuration and provide acoustic tailoring for the best surround sound experience. Dynamic Volume helps eliminate jarring volume jumps during commercials, and Dynamic EQ provides a rich tonal balance at any volume level.

Quality Discrete Power Amplifier Section

The equal power amp design features 7 discrete power amp circuits, and each channel is rated at 75 watts (8 ohms, 20 Hz to 20 kHz, .08% THD). Featuring Denon s Power Amp Assign function, 2 of the amp channels can be configured for surround back, or front height effects, or they can be assigned for stereo multi-room use.

GENERAL

Finish                                         Black

Power Output; Watts Per C       75

All Channels Rated @ 0.08        Yes

Weight: In Pounds                      22.5

Width (inches)                            17.1

Height (inches)                            6.7

Depth (inches)                            15

SOUND MODES

Processor(s) Bit Depth and

Type                                            21367 x 1 32-bit Floating Point

Dolby Pro Logic IIx with

Cinema, Music, Game Modes      Yes

Dolby Digital Surround EX

Decoding                                      Yes

Dolby Digital Pro Logic II              PLIIz

dts ES Discrete 6.1 Decoding        Yes

dts ES Matrix 6.1 Decodin             Yes

dts Neo:6 Stereo-to-Surround

Cinema and Music Modes               Yes

dts 96/24 5.1 for DVD-Video

Processing                                       Yes

Audio Signal Delay (Sync. Audio

with Video signal) By source         Yes

Stereo/Direct Modes w/Pure

Analog Path                                     Yes

Video Game Mode                          Yes

Mono Movie Surround Mode          Yes

Rock Arena Surround Mode            Yes

Matrix Surround Mode                     Yes

Jazz Club Surround Mode                 Yes

Virtual Surround Mode For 2

Speakers/Headphones                        Yes

Multi-Channel Stereo Mode                5/6/7

DSP Effect Modes                              7

Auto Surround Mode (Analog or

Digital Input Type)                              Yes

Active Center Channel In All

Surround Modes                                 Yes

Dolby TrueHD and Dolby Digital+       Yes

dts-HD Master Audio                          Yes

CONNECTIVITY

True 24-bit/96-kHz Digital Input

Capability                                             Yes

Assignable Digital Inputs                       2

Digital Inputs: Coaxial                           1

Digital Inputs: Optical                            1

Analog Audio Inputs, Incl. Tuner           5

Composite Video Inputs                       3 Incl. Front

Composite Video Outputs                    1

S-Video Inputs                                     1 x Dock

HDMI 1.3a Inputs                                4 x 1.4a

HDMI 1.3a Outputs                             1 x 1.4a
