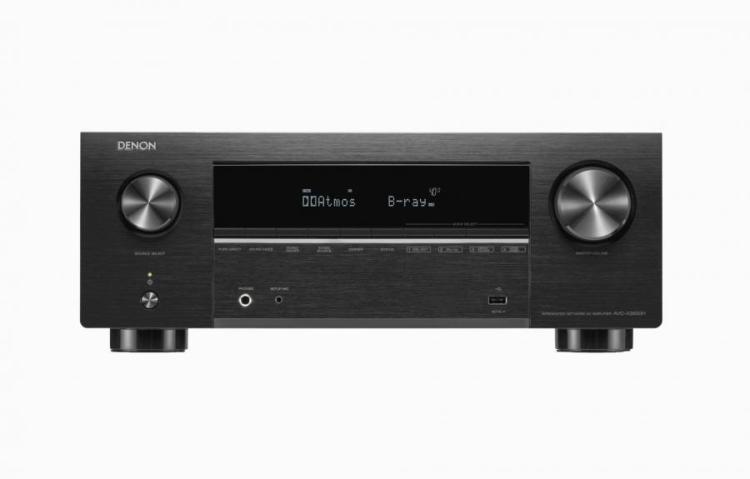

DENON AVC-X3800HBKE2 9-CHANNEL AMPLIFIER 220VOLTS NOT FOR USA

AVC-X3800HBKE2

With nine amplifier channels, up to four independent subwoofers, Dolby Atmos and DTS:X as well as IMAX Enhanced and Auro-3D, the AVC-X3800H also fills larger living areas with cinematic sound. Experience stunning 8K video quality, stream online music via HEOS® Built-in and broadcast it to other rooms.

• Thanks to room-filling sound, you're right in the middle of it instead of just there.
• With the help of numerous configuration options, the device can be optimally adapted to the respective room conditions.
• Experience excellent video quality thanks to the latest 8K technology.
• Improved performance with Audyssey (installed) or Dirac Live (optional) room correction systems.

POWERFUL 9-CHANNEL AMPLIFIER

Discrete high-current amplifiers deliver up to 180 watts per channel - enough power for every speaker.

3D AUDIO EXPERIENCE

Experience sound from every direction with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro-3D, plus Dolby Surround, DTS Neural:X and Auro-Matic upmixers to enhance non-surround content.

FLEXIBLE CONFIGURATION

The AVC-X3800H scores with numerous setup options and the flexibility to tailor your home theater to your exact requirements. In addition to 11.4-channel processing, it also offers a preamp mode as well as the possibility of expansion to Dirac Live (planned for 2023, Dirac Live fees apply).

ADVANCED 8K HOME THEATER

8K video is supported from all six HDMI inputs and two outputs. Experience hassle-free video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+ and Dynamic HDR.SPECIFICATIONS

MULTI-CHANNEL SURROUND

• DTS HD Master, DTS:X, DTS Neural:X , DTS Virtual:X, IMAX Enhanced
•
  Dolby TrueHD, Dolby Atmos, Dolby Atmos Height
• Virtualization, Dolby Atmos Music, Dolby Surround, Auro 3D
•
  360 Reality Audio / MPEG H, Multichannel Stereo
•
  maximum number of processing (preamplifier) channels 11.4

AUDIO TECHNOLOGIES

• Discrete power amplifiers
• Pure Direct
• Audyssey: MultEQ XT32
• Audyssey Dynamic EQ, Dynamic Volume
• Audyssey LFC
• Prepared for Dirac Live
• Compressed Audio Restorer

NETWORK

• media server
• HEOS multi-room and streaming
• Alexa, Google Voice Assistant, Apple HomePod
• Lossless formats: MP3 / WMA / AAC
• Lossless formats: FLAC / ALAC / WAV
• Lossless formats: FLAC HD / WAV / ALAC (all 192kHz/24 bit)
• DSD audio streaming (2.8/5.6MHz)
• AirPlay 2
• TuneIn
• Spotify Connect
• Roon Tested
• HEOS app control
• Compatible with Remote APP for smartphones Denon
• AVR remote
• Ethernet ports
• wireless Internet access
• Bluetooth

HDMI

• HDMI inputs: 6 (rear)
• HDCP2.3 support
• HDMI outputs: main zone / zone 2, 1
• HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB
• HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
• ALLM (Auto Low Latency Mode) pass-through for gaming
• Variable refresh rate, quick flame transport
• 3D signal pass through
• 8K signal pass-through / scaling / GUI overlay
• DSD audio
• AARC (Audio Return Channel) / Enhanced ARC
• Auto LipSync

MULTIROOM / INSTALLER

• Number of zones (incl. main zone): 2
• Zone audio source: HDMI (2ch)/ opt, coax (2ch)/
• Network, USB / analogue
• Zone Audio Outputs: Speaker / Preout
• Zones HDMI output from HDMI sources
• IP Control / RS232 Control / Web Control /
• app control
• Remote control input/output
• DC trigger output: 1
• HDMI diagnostics

INPUTS/OUTPUTS

• HDMI inputs: 6
• HDMI outputs: 3
• Multi-Room Video Output: HDMI
• Analog inputs 6
• Phono (MM) input
• Digital inputs: optical (2), coaxial (2)
• Zone Outputs: Analog (1)
• Multi-channel preamp output (11.4)
• Subwoofer outputs: 4 (independent)
• Speaker screw terminals
• Number of speaker terminals: 11
• Speaker A/B assignable
• Assignable bi-amp operation
• Zone speaker terminals assignable
• Front inputs: USB
• USB audio
• FM/MW tuner: not available

MISCELLANEOUS

• Automatic speaker configuration with
• Audyssey MultEQ XT32 calibration microphone
• Dirac Live (by upgrade)
• FL display 1 line
• GUI languages: 3
• Setup Assistant
• Quick Select Plus
• Variable crossover frequency
• Optimized bass redirection
• Bass sync
• Eco mode
• Automatic shutdown
• sleep timer

PERFORMANCE

• Number of power amplifiers: 9
• Output power (8 ohms, 20 Hz - 20 kHz, 0.05%
• Distortion, 2-channel operation): 105W
• Output power (6 ohms, 1 kHz, 0.7% distortion, 2
• Channel operation): 135W
• Output power (6 ohms, 1 kHz, 1% distortion, 1-channel operation): 180W

GENERALLY

• metal front
• System remote control RC-1253
• Power consumption in W: 660
• Idle power consumption (ECO on / off) in watts: 45 W / 80 W
• Standby power consumption in W: 0.1
• CEC standby power consumption in watts: 0.5
• Network Standby Wattage: Less than 2.0

DIMENSIONS

• Horizontal antenna: (W x D x H) in mm: 434 x 389 x 167
• Antenna: Vertical: (W x D x H) in mm: 434 x 389 x 236
• Without antenna: (W x D x H) in mm 434 x 379 x 167
• Weight in kg: 12.5
• Weight (with packaging) in kg: 15.1
