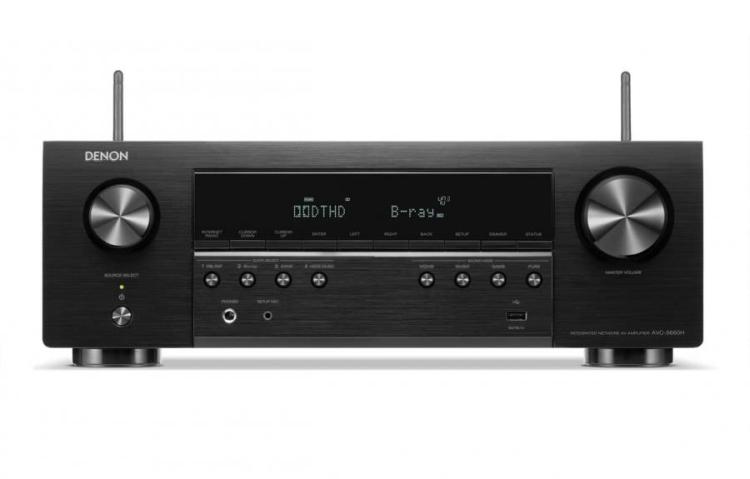

DENON AVC-S660HBKE2 5.2-CHANNEL AMPLIFIER 220VOLTS NOT FOR USA

General

Speaker impedance4-16Ω/ohms

Input sensitivity200 mV

Frequency response10 Hz - 100 kHz — +1, –3 dB (Direct mode)

S/N Ratio98dB (IHF-A weighted, Direct Mode)

Power SupplyAC 230 V, 50 Hz

Power Consumption in W340

Power Consumption No-Sound (ECO On / Off) in W29 W / 39 W

Weight in kg7.8

3.5mm audio line-in connectionYes

System Remote ControlRC-1243

Standby Consumption in W0.1

CEC Standby Consumption in W0.5

Network Control On Consumption in W2.0

Available colours: Black / Premium SilverYes / No

Maximum Dimensionsw/ Antenna 434 x 339 x 215 mm
w/o Antenna 434 × 339 × 151 mm

Carton Maximum Dimensions (W x D x H)523 x 435 x 232 mm

Carton Weight (inc. product) in kg9.7

Inputs Outputs

HDMI In / Out6 / 1

Composite In / Out2 / 1

Phono (MM) InYes

Analogue In/out2 / -

Digital Optical In/Out2 / No

Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes

Pre-out / Main-in0.2 ch / no

Headphone outputYes

EthernetYes

AM/FM TunerNo

Digital In: Optical / Coaxial2 / 0

Multichannel Preouto (0.2)

Subwoofer Out2

Number of Speaker Terminals5

USB Audio / Made for iPod / Made for iPhoneo / AirPlay / AirPlay

Speaker Terminal: Gold Plated Screw / Regular ScrewNo / Yes

FM Tuner with RDSNo

Multichannel Surround

DTS Neo:X / DTS Neural:XNEO: 6 / -

Max Number of Processing (Preamp) Channels5.1

DTS HD Master / DTS:XYes / No

Dolby TrueHD / Dolby AtmosYes / No

Multichannel StereoYes

Dialog EnhancerYes

Dolby ProLogic II / Dolby SurroundYes / No

Sound Enhancements

Discrete Power Amplifier5

AudysseyMultEQ

Audyssey Dynamic EQ / Dynamic VolumeYes / Yes

Compressed Audio RestorerYes

Network

DSD Audio Streamingup to DSD5.6

Gapless playbackYes (FLAC, WAV, ALAC, DSD)

Internet RadioTuneIn

Compatible with Remote APP for Smart PhonesAndroid / iOS

Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle

HEOS Multiroom and Streaming Yes

Lossy Formats: MP3 / WMA / AACYes / Yes / Yes

Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes

FLAC HD 192/24 Yes

WAV 192/24 Yes

ALAC 192/24 Yes

AirPlay 2 Yes

Roon Tested Yes

Spotify Connect* / Tidal* / Deezer* / others *Yes / Yes / Yes / Yes

Amazon Prime Music* / Pandora*Yes / No

Ethernet Ports Yes

Wi-Fi Yes

Bluetooth Yes

Bluetooth Re-transmit for Bluetooth headphones Yes

HDMI

HDMI Inputs: Back / Front6 (3x 8K) / 0

HDMI max Resolution (8k / 4k)8k/60 - 4k/120

HDMI to HDMI Scaling up to 8K 60/50

HDCP2.3 support Yes

HDMI: 8K / 4K / CEC / eARCYes / Yes / Yes / Yes

HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLGYes / Yes / Yes / Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ

FL Display 1 line

Graphic User Interface - GUIHybrid GUI

GUI Languages 9

Voice Control - Works with Amazon Alexa Yes

Voice Control - Google Assist / Apple Siri Yes / Yes

Setup Assistent Yes

Quick Select Plus / Quick Select Yes / No

Firmware Update by: Network / USB Yes / Yes

Variable Cross Over Yes

Optimized Bass Redirection Yes

ECO Mode Yes

Auto Power Off Yes

Sleep Timer Yes

Multi-room CI

HEOS Multiroom integrated Yes

TV Sound grouping Yes

Main room multichanel audio - Zone stereo downmix Yes

Webbrowser Setup Yes

IP Control / RS232 Control / Web Control / App ControlYes / No / Yes / Yes
