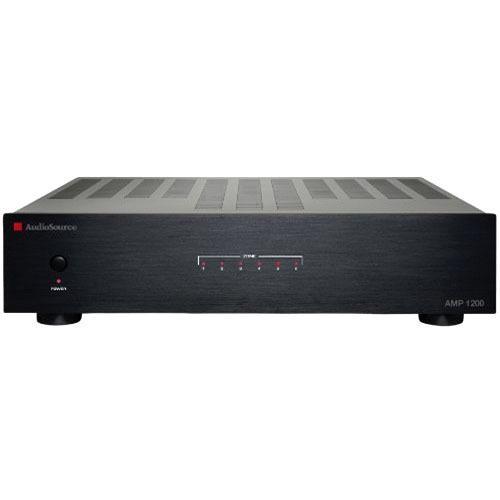

The AMP1200 12-Channel Multi-Zone Amplifier from AudioSource is a professional-quality stereo power amplifier designed for installed applications. The rugged steel chassis houses a powerful amplification unit for a strong, distortion-free performance. It can operate in stereo or bridged modes and has stable class AB design delivers superior audiophile sound quality and performance.
Product Code: AU-AMP1200 Product ID: 20670
Product sold by: samstores.com
The AMP1200 12-Channel Multi-Zone Amplifier from AudioSource is a professional-quality stereo power amplifier designed for installed applications. The rugged steel chassis houses a powerful amplification unit for a strong, distortion-free performance. It can operate in stereo or bridged modes and has stable class AB design delivers superior audiophile sound quality and performance.
The heavy-duty steel chassis with brushed aluminum faceplate features level controls for each channel, as well as LED indicators. The versatility of the AMP1200 makes it the perfect choice for almost every type of custom multi-room audio system. Its tabletop or
Main Features
40W per Channel
6 Stereo Zones
Stable Class AB Design
Bridgeable Channel Outputs
Switchable 115/230V Input Voltage
Multi-stage Protection Circuitry
Installer-Friendly Setup
Rackmount and Tabletop Configurations
Heavy Duty Steel Chassis
Brushed Aluminum Faceplate
All Features
Amplifier
Number of Channels 12
Power Rating 40W per channel RMS at 8 ohms
Bridged output power: 80W per channel RMS at 8 ohms
Frequency Response 5Hz-72kHz
Signal to Noise Ratio 105 db A-weighted
Total Harmonic Distortion (THD) Distortion: .005% THD 20Hz-20kHz @ 30W (8 ohm) Distortion (bridged): .10% THD 20Hz-20kHz @ 80W (8 ohm)
Input Sensitivity 380 mV for full output
Auto turn-on sensitivity: 13.7 mV
Input Impedance 18K ohm
Crosstalk 80 db
Efficiency 63%
Inputs/Outputs Bus line inputs/outputs x 2
Trigger input/output (3.5mm mini jack) x 1
Speaker output terminals x 6
Individual channel input x 1
General
Power Requirements 115/230 VAC, 50/60Hz
Power Consumption Standby: 115V, 0.264W
Dimensions (W x H x D) 16.7 x 4 (including feet) x 14.3" (424.2 x 101.6 x 363.2mm)
Weight 30 lb. (13.6kg)
