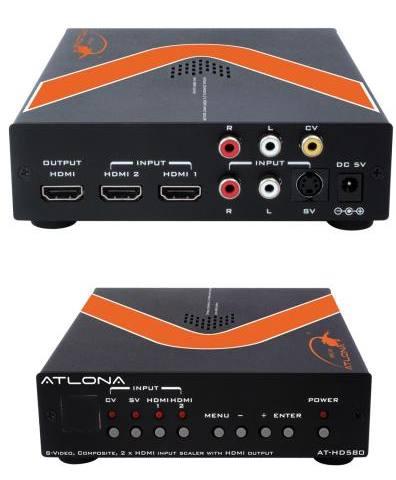

AT-HD580 PAL NTSC VIDEO CONVERTER AND HIGH DEFINITION (HDMI) SCALER

The AT-HD580 is a unique Scaler unit designed to upscale any Standard definition and High definition video signals to an HDMI output. The AT-HD580 takes Composite AV, S-Video with Audio and Dual HDMI inputs and scales all of the above signals to High Resolution HDMI output. This model outputs a wide-range of HD and PC resolutions up to 1080p or 1920x1200. The AT-HD580 has a comprehensive on screen menu that will allow users to select a variety of desired output resolutions and enables users to make necessary adjustments for the optimal picture quality. The AT-HD580 could also be used as a Pal to NTSC or NTSC to Pal converter scaler.

Features:

Composite with Stereo Audio, S-Video with Stereo Audio, and 2 x HDMI input scaler

Scales any Standard definition and High definition video signals to a single HDMI output

High Quality processor allows any input to be scaled to resolutions up to 1080p or 1920x1200 and clean up the artifacts and noise from analog inputs

50Hz/60Hz or Pal/NTSC conversion, unit will auto-detect whether TV is Pal or NTSC and will automatically start converting the incoming signals to a TV's standard

Dual 3-D motion video adaptive de-interlaces with adaptive edge-oriented adaptive algorithm for smooth low-angle edge.

DVI Compatible allows users to feed different video signals into computer monitors or DVI projectors. (HDMI to DVI adapter is required)

Operates through on-screen OSD menu control and remote control

Technical Specifications:

Inputs: 1 x Composite with Stereo Audio, 1 x S-Video with Stereo Audio, and 2 x HDMI

Outputs: 1 x HDMI

HDMI Output Resolutions HDTV: 480p, 576p, 720p@50Hz, 720p@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz and 1080p@60Hz

HDMI Output Resolutions Computer: VGA, SVGA, XGA, SXGA, WXGA, SXGA, UXGA, WXGA, WSXGA, WUXGA

Frequency Bandwidth: 1.65Gbps

HDCP Compliant

Power Supply: 5VDC/2.6A (universal)

Dimensions (inch): 6.8(W) x 5.5(D) x 1.4(H)

Net Weight: 3.2LB

Gross Weight: 4LB

Package Includes:

1 x AT-HD580 Scaler Unit

1 x Remote Control

1 x 6ft HDMI Cable

Operational Manual

5V DC Power Supply Adapter
