ZUUM MEDIA BMT CCTV EXTENDER BNC MALE TO TERMINAL BLOCK

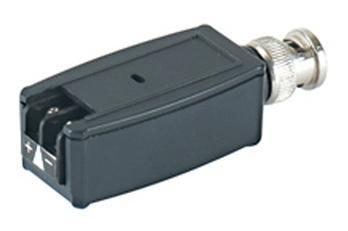

ZUUM MEDIA BMT CCTV Extender BNC Male To Terminal Block

Product Code: ZU-BMT   Product ID: 21423
Product sold by: samstores.com

$ 14.99

Availability: In Stock New

Shipping Information:
Shipping Charges: $7
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-7 business days!

Model: BMT CCTV (composite video) extender (BNC Male to 2 pin Terminal) is a great solution to your camera installs. Instead of using more expensive and harder to pull coaxial cable you can attach the BMRJ45 to the BNC female connector of the camera and then with a terminated Cat5/6 cable run the video over the cable to another BMRJ45 and output the camera video into a DVR, TV or other monitor display. With a color range of up to 400 meters (1312 feet) this passive extender (no power required) is a great cost effective solution especially in retro fit applications.

CCTV Extender BNC Male to 2 pin Terminal

Passive (no power required)

Transmission range color 400 meters (1312 feet)

Transmission range B/W 600 meters (1968 feet)

Video Input: 1V p-p, 75 Ohms

Dimensions - Inches: 2.72 (w) x .984 (h) x .866 (d)

Sold each
