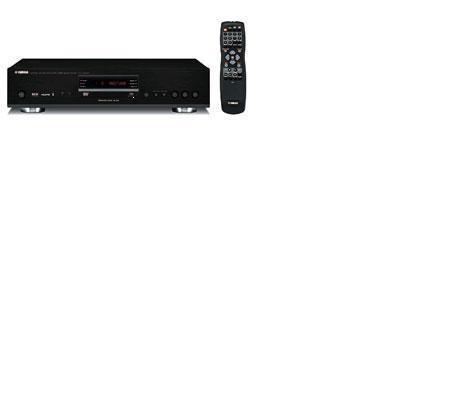

YAMAHA DVD-S1700RF

Features

Key Features:

DVD-Audio / Super Audio CD Ready

DVD-Audio is an extension of the highly popular DVD format, distinguished by its capability to deliver high quality multi-channel audio capability previously unavailable in traditional packaged audio media

Super Audio CD

DVD Players that support Super Audio CD use a technology called Direct Stream Digital (DSD) to convert music into a digital signal that can be stored on a disc. Compared to the traditional PCM method (the technology used for CD), DSD offers a much higher resolution by following more closely the original waveform of music. With a frequency response of over 100kHz and a dynamic range over 120dB across the audible frequency range – some 64 times higher resolution then CD - Super Audio CD offers music reproduction that reveals details you just can’t hear on a normal CD

CD Digital Video

DVD Players equipped with CD Digital Video capabilities will be able to play video and sound media that has been compressed together and recorded onto a CD disc

Video CD

DVD Players equipped with Video CD capabilities will be able to play video and sound media that has been compressed together using the MPEG 1 standard, and recorded onto a CD disc

HDMI

High Definition Multimedia Interface (HDMI) is the first and only digital interface to combine uncompressed high-definition video, multi-channel audio and intelligent format and command data in a single digital interface. HDMI switching, providing the most advanced method of delivering high quality video signals to a home theater system to enable the reproduction of DVD and satellite TV sources with HD quality. HDMI can also send the digital audio signals from sources such as DVD Audio, CD, Dolby Digital and DTS to provide simple components connections

DCDi TM (Directional Correlational Deinterlacing)

Invented and patented by Faroudja, Directional Correlational De interlacing (DCDi), virtually alleviates jagged oblique lines that appear when standard interlaced video is viewed on progressive scan displays, enabling the reproduction of beautiful, natural-looking moving images

Dolby Digital

The most popular 5.1-channel home theater sound system. An improvement over Dolby Pro-Logic in that it offers: 1) Full frequency response in all channels (3Hz — 20kHz), 2) discrete surround channels, and 3) a separate track for bass only, called the Low Frequency Effects channel

DivX

DivX is the video compression codec developed by DivX Networks and based on the MPEG-4 compression format. Its balance of high video quality and low bit rate has made it very popular and quickly established it as the best home video format thus far. The ability to play it on newer DVD models continues to add to its popularity as DivX Networks advances its support to many new household products. This compression technology has the potential for expanding the ways we view video media in much the way MP3 has given us many new ways to listen to music

Features:

High Sound Quality

 DVD-Audio and Super Audio CD playback

  Four two-channel Burr-Brown 192kHz/24-bit audio DACs

  Audio Direct mode

  High Picture Quality

  1080p-compatible HDMI video output

  High performance 216MHz/12-bit video DAC with Noise Shaped Video™ and Faroudja DCDi™ processing

Progressive Scan (NTSC/PAL)

  Numerous Video Picture modes

  Advanced Features

 MP3, JPEG, DivX® and WMA playback

  Bass Management

  Wide screen mode selection

  Perfect match for Yamaha AV receivers

Other Features

 Gold-plated terminals for all pin jacks

  Video picture mode: Brightness, Contrast Hue, Sharpness, DNR, Gamma, Chroma Level, Chroma Delay and True Life

Picture CD playback

  3-step dimmer modes

  NTSC/PAL complete conversion

  Multiple repeat play

  Program play

Screen saver

  Discrete remote control commands

  On-Screen Display with GUI (Graphical User Interface)

This model makes operation extremely simple by displaying a variety of clearly understandable GUI menus right on the TV or monitor screen. It's easy to select and adjust any desired function with the remote control

  Perfect Match for Yamaha AV Receivers

 With its aluminum front panel and impressively heavy, high quality exterior, the DVD-S1700 is designed to beautifully complement the RX-V3800 and RX-V1700 receivers. In addition, its HDMI terminals allow connection via one cable for high level signal transmission, ensuring a perfectly matched audio/video system

Specifications:

DVD-Audio Playback

  SACD Playback

  DVD-VIDEO/VCD/CD Playback

  JPEG (Multisession) Playback

  MP3 (Multisession) Playback

  DivX (Multisession) Playback

  WMA (Multisession) Playback

  DVD+R/+RW Playback

  DVD-R/-RW Playback

  Picture CD Playback

  CD-R/RW Playback

  HDMI With Up-Conversion: (1080p Upconvesion)

  Progressive Scan

  DCDi Processing

Dolby Digital/DTS Decoders

  VIDEO DAC: 216 MHz / 12 bit

  AUDIO DAC: 192 kHz / 24 bit

  RS-232C PORT

  IR Ports

  Detachable Power Cord

  Extended IR Codes

Approximate Dimensions:

Width: 17-1/8"

Height: 3-7/16"

Depth: 11-3/16"

Approximate Weight:

Unit: 7.3 lbs

Shipping: 10 lbs

Available in 110-240 volts 50/60 hz version

Warranty and Support:

Lifetime all region guarantee

30 replacement, 90 parts and Labor, and 1 year Parts warranty.
