Washer Extractors 4 Fast Fill Inlet Valves, Rapid Jet Spray Rinse.
Product Code: Unimac UW80TV Product ID: 11804
Product sold by: samstores.com
Availability: In Stock

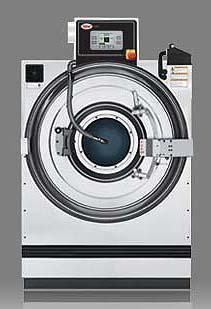

Unimac UW80TV
Washer Extractors 4 Fast Fill Inlet Valves, Rapid Jet Spray Rinse, Super High 300 G - Force Extraction, 41 Cycle Programmable Control, Ultrasoft Wash.
Product Specification:
Unit Dimension: 68.5"H x 41.5"W x 51.5"D
Unit Weight: 1730 Lb.
UW POCKET HARDMOUNT "P" SERIES CONTROL
UW80
Dry Weight Capacity lbs/kg 80/36
P2 - 2 Speeds
39 cycle WE6-Series Programmable Microcomputer
1
Sugg. List N/A
P3 - 3 Speeds
39 cycle WE6-Series Programmable Microcomputer
1
Sugg. List N/A
PV - 7 Speeds
39 cycle WE6-Series Programmable Microcomputer
Inverter Drive - 2 wash, 1 distribution, 4 high extract speeds
Sugg. List 19,063
TV - 7 Speeds
41 cycle UniLinc Graphical Programmable Microcomputer
Inverter Drive - 2 wash, 1 distribution, 4 high extract speeds
Sugg. List 19,063
Note:
Dual drains standard on UW80PV,UW80TV, UW100PV,UW100TV, UW125PV, UW125TV, UW150PV,& UW150TV.
Jog Feature is standard on UW150TV Models
EXTRA COST OPTIONS UW80
European Union (CE Marked) Approvals
EMI Filter - TV Models Only Sugg. List 175
Auxiliary Direct Steam Heating
Sugg. List 904
Prep for Aux. Direct Steam Heating
Shell connection and plug provided. Order steam heat kit from RSPC.
Sugg. List STD
Auxiliary Electrical Heating *
Available on three phase Q, P, N, & R voltage models only
Sugg. List 1,430
Prep for Auxiliary Heating *
Electric heat shell with plugs and direct steam connection.
Order auxiliary heat kits from RSPC.
Sugg. List 33
Viton Seals *
Available on PV or TV Models only.
Sugg. List 131
Treated Shipping Crate
Wood framed, not enclosed
Sugg. List 206
* Made to order option, check with order desk for lead time.
SEE UW ELECTRICAL OPTIONS PRICE SHEET FOR AVAILABLE VOLTAGES
METAL BASES & MOUNTING BOLT KITS AVAILABLE THROUGH RSPC.
Please Specify When Ordering
Model, Electric Specifications (Voltage, Cycle, Hertz), options
All Prices are Ex-Works -
Prices & Specifications subject to change without notice.
UW TV VARIABLE SPEED ELECTRICAL OPTIONS
VOLTAGE OPTIONS UW80-TV
X 200-208/220/240/50/60/1-3
Sugg. List N/A
Q 200-208/220/240/50/60/3
Sugg. List STD
R 380-415/440-480/50/60/3 *
Sugg. List 565
Technical Specification
Technical Specification UW80TV
Dimensions
Capacity - kg (lb) 36 7/16 (80)
Width - mm (in) 1054 (41 1/2")
Depth -mm (in) 1308 (51 1/2")
Height - mm (in) 1740 (68 1/2")
Cylinder Diameter - mm
(in)
914 (36")
Cylinder Depth - mm (in) 533 (21")
Cylinder Volume - liters
(cu. ft.)
350 (12.4)
Door Opening Size - mm
(in)
445 (17 1/2")
Door Bottom To Floor - mm
(in)
737 (29")
Speeds
Gentle Speed - RPM 26
Wash Speed - RPM 40
Distribution Speed - RPM 73
G-Force
Medium Speed - RPM 54 (325)
High 1 Extract - RPM 106 (456)
High 2 Extract - RPM 140 (524)
High 3 Extract - RPM 300 (766)
Connections
Water Inlet - mm (in) 19 (3/4")
Steam Inlet -mm (in) 13 (1/2")
Drain Diameter - mm (in) (2 each) 76 (3")
Motor
Motor Size - kW(HP) 5.6 (7.5)
Agency Approvals
Agency Approvals ETL, ETLc, CE
This appliance is not designed for use in
