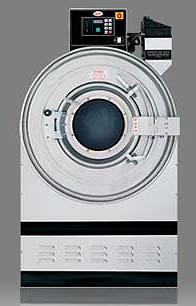

UNIMAC UW80AV

Unimac UW80AV
Washer Extractor 160 G - Force Extraction, Heavy Duty Bearings, Extra Strong Gamma A-Frame Design, 30 Cycle Programmable Control, 5-year limited warranty on mainframe and cylinder shaft assembly.

Product Specification:

Unit Dimension:     68.5"H x 41.5"W x 51.5"D

Unit Weight:          1644 Lb.

UW POCKET HARDMOUNT "P" SERIES CONTROL

UW80

Dry Weight Capacity lbs/kg 80/36

P2 - 2 Speeds

39 cycle WE6-Series Programmable Microcomputer

1 Wash & 1 Extract Speed

Sugg. List N/A

P3 - 3 Speeds

39 cycle WE6-Series Programmable Microcomputer

1 Wash, 1 Distribution, & 1 High Extract Speed

Sugg. List N/A

PV - 7 Speeds

39 cycle WE6-Series Programmable Microcomputer

Inverter Drive - 2 wash, 1 distribution, 4 high extract speeds

Sugg. List 19,063

TV - 7 Speeds

41 cycle UniLinc Graphical Programmable Microcomputer

Inverter Drive - 2 wash, 1 distribution, 4 high extract speeds

Sugg. List 19,063

Note: U.S. Plumbing standard, inlet and drain hose kit is standard on all models.

Dual drains standard on UW80PV,UW80TV, UW100PV,UW100TV, UW125PV, UW125TV, UW150PV,& UW150TV.

Jog Feature is standard on UW150TV Models

EXTRA COST OPTIONS UW80

European Union (CE Marked) Approvals

EMI Filter - TV Models Only Sugg. List 175

Auxiliary Direct Steam Heating

Sugg. List 904

Prep for Aux. Direct Steam Heating

Shell connection and plug provided. Order steam heat kit from RSPC.

Sugg. List STD

Auxiliary Electrical Heating *

Available on three phase Q, P, N, & R voltage models only

Sugg. List 1,430

Prep for Auxiliary Heating *

Electric heat shell with plugs and direct steam connection.

Order auxiliary heat kits from RSPC.

Sugg. List 33

Viton Seals *

Available on PV or TV Models only.

Sugg. List 131

Treated Shipping Crate

Wood framed, not enclosed

Sugg. List 206

* Made to order option, check with order desk for lead time.

SEE UW ELECTRICAL OPTIONS PRICE SHEET FOR AVAILABLE VOLTAGES

METAL BASES & MOUNTING BOLT KITS AVAILABLE THROUGH RSPC.

Please Specify When Ordering

Model, Electric Specifications (Voltage, Cycle, Hertz), options

All Prices are Ex-Works - Ripon, WI - In U.S. dollars.

Prices & Specifications subject to change without notice.

UW AV VARIABLE SPEED ELECTRICAL OPTIONS

VOLTAGE OPTIONS UW80-AV

X 200-240/60/1-3

Sugg. List N/A

Q 200-240/50-60/3

Sugg. List STD

N 440-480/50-60/3 *

Sugg. List 565

P 380-415/50/60/3 *

Sugg. List 465

Technical Specification

Technical Specification UW80AV

Dimensions

Capacity - kg (lb) 36.4 (80)

Width - mm (in) 1054 (41 1/2")

Depth -mm (in) 1308 (51 1/2")

Height - mm (in) 1740 (68 1/2")

Cylinder Diameter - mm (in) 914 (36")

Cylinder Depth - mm (in) 533 (21")

Cylinder Volume - liters (cu.

ft.)

350 (12.4)

Door Opening Size - mm (in) 445 (17 1/2")

Door Bottom To Floor - mm

(in)

737 (29")

Speeds

Gentle Speed - RPM

Wash Speed - RPM 40

Distribution Speed - RPM 73

G-Force

Medium Speed - RPM

High 1 Extract - RPM 40 (280)

High 2 Extract - RPM 106 (456)

High 3 Extract - RPM 160 (560)

Connections

Water Inlet - mm (in) 19 (3/4")

Steam Inlet -mm (in) 13 (1/2")

Drain Diameter - mm (in) 76 (3")

Motor

Motor Size - kW(HP) 3.7 (5.0)

Agency Approvals

Agency Approvals ETL, ETLc, CE

 This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
