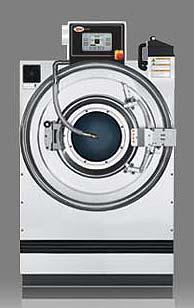

UNIMAC UW60TV

Unimac UW60TV
4 Fast Fill Inlet Valves, Rapid Jet Spray Rinse, Super High 300 G-Force Extraction, 41 Cycle Programmable Control, Ultrasoft Wash.

Product Specification:

Unit Dimension:     64.5"H x 36.5"W x 45"D

Unit Weight:          1300 Lb.

UW POCKET HARDMOUNT "P" SERIES CONTROL

UW60

Dry Weight Capacity lbs/kg 60/27

P2 - 2 Speeds

39 cycle WE6-Series Programmable Microcomputer

1 Wash & 1 Extract Speed

Sugg. List 11,221

P3 - 3 Speeds

39 cycle WE6-Series Programmable Microcomputer

1 Wash, 1 Distribution, & 1 High Extract Speed

Sugg. List 11,574

PV - 7 Speeds

39 cycle WE6-Series Programmable Microcomputer

Inverter Drive - 2 wash, 1 distribution, 4 high extract speeds

Sugg. List 12,359

TV - 7 Speeds

41 cycle UniLinc Graphical Programmable Microcomputer

Inverter Drive - 2 wash, 1 distribution, 4 high extract speeds

Sugg. List 12,359

Note: U.S. Plumbing standard, inlet and drain hose kit is standard on all models.

Dual drains standard on UW80PV,UW80TV, UW100PV,UW100TV, UW125PV, UW125TV, UW150PV,& UW150TV.

Jog Feature is standard on UW150TV Models

EXTRA COST OPTIONS UW60

European Union (CE Marked) Approvals

EMI Filter - TV Models Only Sugg. List 125

Auxiliary Direct Steam Heating

Sugg. List 904

Prep for Aux. Direct Steam Heating

Shell connection and plug provided. Order steam heat kit from RSPC.

Sugg. List STD

Auxiliary Electrical Heating *

Available on three phase Q, P, N, & R voltage models only

Sugg. List 882

Prep for Auxiliary Heating *

Electric heat shell with plugs and direct steam connection.

Order auxiliary heat kits from RSPC.

Sugg. List 33

Viton Seals *

Available on PV or TV Models only.

Sugg. List 107

Treated Shipping Crate

Wood framed, not enclosed

Sugg. List 192

* Made to order option, check with order desk for lead time.

SEE UW ELECTRICAL OPTIONS PRICE SHEET FOR AVAILABLE VOLTAGES

METAL BASES & MOUNTING BOLT KITS AVAILABLE THROUGH RSPC.

Please Specify When Ordering

Model, Electric Specifications (Voltage, Cycle, Hertz), options

All Prices are Ex-Works - Ripon, WI - In U.S. dollars.

Prices & Specifications subject to change without notice.

UW PV VARIABLE SPEED ELECTRICAL OPTIONS

VOLTAGE OPTIONS UW60-TV

X 200-208/220/240/50/601-3

Sugg. List STD

Q 200-208/220/240/50/60/3

Sugg. List OPT-NC

R 380-415/440-480/50/60/3 *

Sugg. List

Model, Electric

Technical Specification

Technical Specification UW60TV

Dimensions

Capacity - kg (lb) 27 5/16 (60)

Width - mm (in) 930 (36 5/8")

Depth -mm (in) 1143 (45")

Height - mm (in) 1638 (64 1/2")

Cylinder Diameter - mm (in) 813 (32")

Cylinder Depth - mm (in) 508 (20")

Cylinder Volume - liters (cu. ft.) 264 (9.31)

Door Opening Size - mm (in) 445 (17 1/2")

Door Bottom To Floor - mm (in) 718 (28 1/4")

Speeds

Gentle Speed - RPM 26

Wash Speed - RPM 40

Distribution Speed - RPM 71

G-Force

Medium Speed - RPM 40 (297)

High 1 Extract - RPM 106 (483)

High 2 Extract - RPM 140 (555)

High 3 Extract - RPM 300 (813)

Connections

Water Inlet - mm (in) 19 (3/4")

Steam Inlet -mm (in) 13 (1/2")

Drain Diameter - mm (in) 76 (3")

Motor

Motor Size - kW(HP) 3.7 (5)

Agency Approvals

Agency Approvals ETL, ETLc, C

 This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
